Volkswagen Jetta Brake Light Switch Guide for 1985-1989 Models
Keep your classic Jetta safe and on the road by understanding this small but critical part.
- A failing brake light switch is a critical safety issue that must be addressed immediately.
- Symptoms are straightforward: lights don't work, lights stay on, or lights are intermittent.
- Replacement is a simple, fast, and inexpensive DIY job for most owners.
- For best results and longevity, choose a reputable brand like Hella, Standard Ignition, or Facet.
Is Your Jetta's Brake Light Switch Failing?
A faulty brake light switch is more than an annoyance; it's a serious safety risk. If drivers behind you can't see you're braking, the chance of a rear-end collision increases dramatically. Given the simple nature of the part on a 1985-1989 Jetta, the symptoms are usually very clear.
Key Failure Symptoms:
🎬 Watch this video to identify common bad brake light switch symptoms.- Brake Lights Don't Turn On: This is the most dangerous symptom. If the switch fails in the 'open' position, the circuit never completes, and your brake lights will not illuminate at all.
- Brake Lights Stay On: If the switch gets stuck in the 'closed' position, it will continuously send power to the brake lights, even when your foot is off the pedal. This will drain your battery and burn out the bulbs prematurely.
- Intermittent Brake Lights: The lights might flicker or only work sometimes when you press the pedal. This often points to worn internal contacts inside the switch.
Safety and Legal Warning
Driving with non-functional brake lights is illegal and extremely dangerous. If you suspect your brake light switch has failed, you should not drive the vehicle until it is repaired. This is a critical safety component.
Choosing the Right Aftermarket Brake Light Switch
For a classic vehicle like the Mk2 Jetta, you have several aftermarket options. Original Equipment (OEM) parts can be difficult to find and expensive. Fortunately, many aftermarket brands produce quality replacements. Here’s how the available brands generally stack up for this part:
- Tier 1 - OEM Quality (Hella): Hella is a well-respected German brand that often manufactures parts for Volkswagen directly. Choosing a Hella switch is the closest you can get to the original part's quality and is highly recommended for fit and longevity.
- Tier 2 - Reputable Aftermarket (Standard Ignition, Facet): Standard Ignition (SMP) is a long-standing brand known for producing reliable electronic components that meet or exceed OE specifications. Facet is a European brand with a decent reputation for switches and sensors. These brands offer a good balance of quality and price.
- Tier 3 - Value-Oriented (URO Parts, Rostra Powertrain): URO Parts produces a wide range of affordable parts for European cars. While their quality has improved over the years, it can sometimes be inconsistent. For a simple switch like this, it may be a perfectly acceptable budget-friendly option, but longevity might be a concern for some owners. Rostra is less commonly discussed in VW forums for this specific part.
Pro Tip: Check the Connector
While most 1985-1989 Jettas use a simple 2-pin switch, it's always wise to visually inspect your old switch before ordering. Later model Volkswagens used more complex 4-pin switches. Confirming your pin count ensures you get the right part the first time.
Cost of Replacing Your Jetta's Brake Light Switch
This is one of the more affordable repairs you can perform on your vehicle. The part itself is inexpensive, and if you have basic tools, you can easily do it yourself.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $6.64 - $39.88 |
| Shop Labor | $50 - $100 |
| DIY Total | $6.64 - $39.88 |
| Shop Total | $57 - $140 |
Frequently Asked Questions (FAQ)
Where is the brake light switch located on a 1985-1989 Jetta?
The brake light switch is located directly above the brake pedal, mounted to the pedal bracket assembly. You will need to look up under the dashboard in the driver's side footwell to see it. It's a small, plunger-style switch that makes contact with the pedal arm.
Can I replace the brake light switch myself?
Yes, this is a very DIY-friendly job. The process typically involves removing a lower dash panel for access, disconnecting the electrical connector, and twisting the old switch about 90 degrees to remove it. Installation is the reverse of removal. The entire job can usually be done in under 30 minutes with basic hand tools.

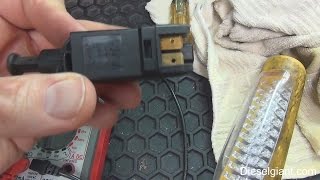

🎬 See a step-by-step guide on replacing the switch yourself.Are there any recalls for the 1985-1989 Jetta brake light switch?
No. While Volkswagen has issued major recalls for brake light switches on later model Jettas (specifically from 1999-2005), the 1985-1989 models were not included in these actions. The issues on newer cars were related to a different switch design.
Do I need any special tools to replace this switch?
No special tools are required. You may need a screwdriver to remove the lower dash trim panel for better access. The switch itself is typically removed and installed by hand with a simple twist-lock motion.
Helpful Videos
Technical Specifications
OEM Part Numbers: 191945515B
Typically a 2-pin, plunger-activated, twist-lock switch.
