1985-1990 Buick Electra HVAC Blower Motor Resistor & Module Guide
If your Buick Electra's fan only works on high, this guide is for you.
- The most common symptom of failure is the fan only working on the 'High' setting.
- You MUST identify if you have manual knobs or electronic push-button controls to order the correct part (Resistor vs. Module).
- Consider replacing the blower motor at the same time, as a bad motor is the main reason new resistors fail early.
- This is a simple, beginner-friendly DIY repair that takes less than 30 minutes.
Is Your Buick Electra's Fan Acting Up?
If your car's fan only blows on the highest setting, you almost certainly have a bad blower motor resistor. This is the most common failure for this part. The resistor controls the lower speeds, but the 'High' setting sends power directly to the fan, bypassing the broken part. You might also notice that some speeds don't work, or the fan speed seems to change on its own.
Manual vs. Electronic Climate Control: A Critical Choice
Before you buy a part, you must know what kind of climate system your Electra has. This is the most common ordering mistake. For the 1985-1990 models, there were two systems:

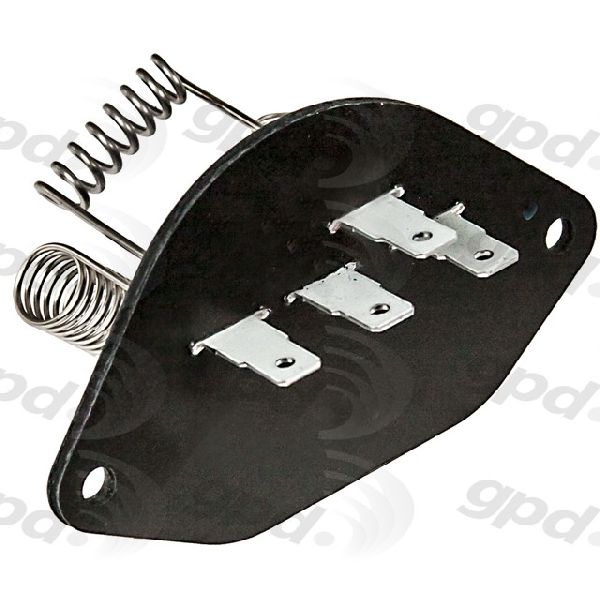

- Manual HVAC: If you have simple knobs or levers to control temperature and fan speed, you need a standard Blower Motor Resistor. This is a simple, inexpensive part with wire coils or blades that create resistance.

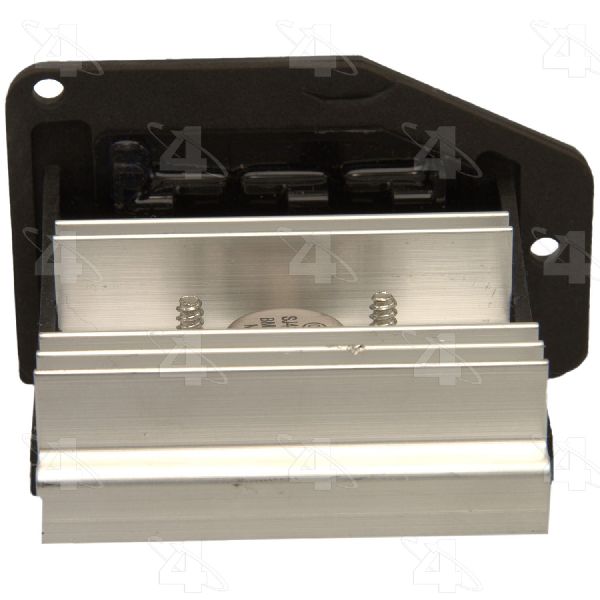

- Electronic Climate Control (ECC): If your dash has a digital display with push buttons for temperature and fan speed, you need a Blower Motor Control Module. This is a more complex electronic box and is significantly more expensive.
Warning: A resistor will not work in a car with ECC, and a control module will not work in a car with manual controls. Check your dash and order the correct part for your system.
Choosing the Right Aftermarket Brand
For a vehicle of this age, new OEM parts from GM are generally not available. Aftermarket parts are your main option and offer good value. Here’s a breakdown of common brands:
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand. They are known for using high-quality materials, like copper connectors, that ensure correct performance and a long life. This is a great choice for reliability.
- Dorman: A very common and reliable choice. Dorman parts are designed to be a direct fit, and they sometimes include a new wiring harness connector. This is very helpful if your original connector is melted or corroded from the old resistor failing.
- Four Seasons: A well-known brand for all things HVAC. They offer parts that fit and work, but some user reviews mention occasional quality issues with new parts. They are a budget-friendly option that usually gets the job done.
- Global Parts (GPD): Another available brand, though less information is available about their reputation for this specific part compared to others.
Pro Tip: Check Your Blower Motor!
A worn-out blower motor is the #1 killer of new resistors. Before you install your new part, reach under the dash and spin the fan blade on the blower motor. If it feels stiff, is noisy, or doesn't spin freely, the motor is drawing too much power. This will cause your new resistor to overheat and fail quickly. Replace the blower motor at the same time to avoid doing the job twice.
Cost of Replacing Your Blower Motor Resistor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Resistor (Manual HVAC) | $19.50 - $50.00 |
| New Aftermarket Module (Electronic Climate Control) | $90.00 - $236.96 |
| Shop Labor | $60 - $120 |
Frequently Asked Questions
Where is the blower motor resistor located on a 1985-1990 Buick Electra?
It is located under the dashboard on the passenger side, mounted in the HVAC housing near the blower motor itself. This allows air from the fan to pass over it, keeping it cool.
Is replacing the blower motor resistor a difficult job?
No, this is a great DIY job for beginners. It typically requires removing a few screws and unplugging a single electrical connector. The job can usually be done in under 30 minutes with basic hand tools.
Are there any recalls for this part?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or technical service bulletins (TSBs) for the blower motor resistor on the 1985-1990 Buick Electra. Failures are due to the age and normal wear of the part.
Why did my new resistor burn out after only a week?
This is almost always caused by a failing blower motor that is drawing too much electrical current. The extra current overheats the resistor and causes it to fail prematurely. If you are replacing a failed resistor, it is strongly recommended to inspect or replace the blower motor at the same time.
Technical Specifications
OEM Part Numbers: 15-72530 16058864 16025471 12368385 12484912
Varies by control type. Manual systems use a resistor with 3-4 blade terminals. Electronic Climate Control systems use a multi-pin electronic module.
