Chevrolet Astro Starter Motor Guide for 1985-1990 Models
Troubleshoot and choose the right new starter to get your first-generation Astro turning over reliably.
- A clicking sound when turning the key is the most common sign of a failed starter on an Astro.
- Hot-start problems ('heat soak') are a well-known issue for this van; a high-torque mini-starter is the best solution.
- Replacement is a difficult job due to tight access and obstruction from transmission lines.
- No specific recalls or TSBs have been issued for the starter motor on the 1985-1990 Astro.
Is Your Astro's Starter Failing?
The starter motor on the first-generation Chevrolet Astro is a common failure point, often due to age and its location in the engine bay. The most common reasons for a no-start condition on these vans are a dead battery, a bad alternator, or a failed starter. If your battery is good, the starter is the next likely culprit.
Key Failure Symptoms
- Single Click or Rapid Clicking: The most classic sign of a bad starter on an Astro. You turn the key, and all you hear is a 'click' or a series of rapid 'clicks'. This means the starter solenoid is receiving power and trying to work, but the motor itself is failing to turn.
- Slow, Labored Cranking: If the engine turns over much slower than usual, like it's struggling, the starter motor may be worn out and losing its power.
- No Sound at All: If you turn the key and hear nothing, while the dashboard lights work, the problem could be the starter solenoid or the electrical circuit leading to it. 🎬 Watch: How to diagnose and repair a 1990 GMC starter
- Grinding or Whirring Noise: A high-pitched whirring or grinding sound after the engine starts (or instead of it starting) can indicate the starter gear is not engaging or disengaging correctly with the engine's flywheel.
Known Issue: Heat Soak
A very common problem for 1985-1990 Astros is "heat soak." This happens when the starter gets hot from being close to the exhaust manifold. When hot, the starter's electrical resistance increases, and it may refuse to crank the engine. After the van cools down for 15-30 minutes, the starter may work perfectly again. If you experience starting problems only when the engine is hot, heat soak is the likely cause.
🎬 See this explanation of starter heat soak and how to fix itChoosing the Right Aftermarket Starter
For a vehicle of this age, new aftermarket starters are often a better choice than remanufactured units. They use all-new components and can include design improvements over the original 1980s technology. Original OEM starters are generally no longer available.
Brand Quality Tiers

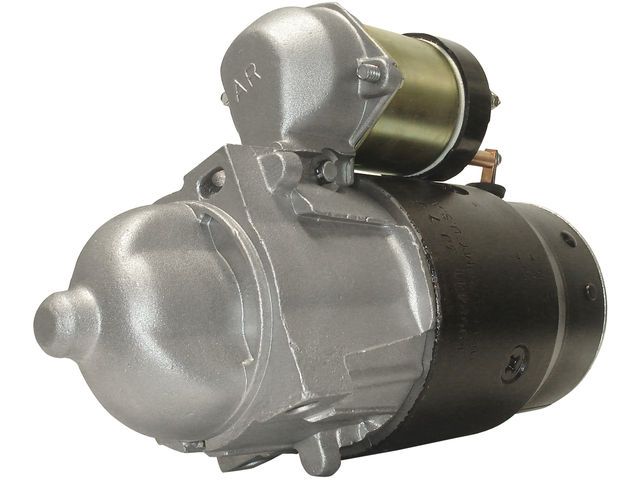

- ACDelco (Professional/Gold): As GM's own parts brand, ACDelco is a trusted name. Their new starters are built to meet original specifications and are a reliable, direct-fit replacement. While sometimes more expensive, they are a solid choice for owners wanting an OEM-style part.

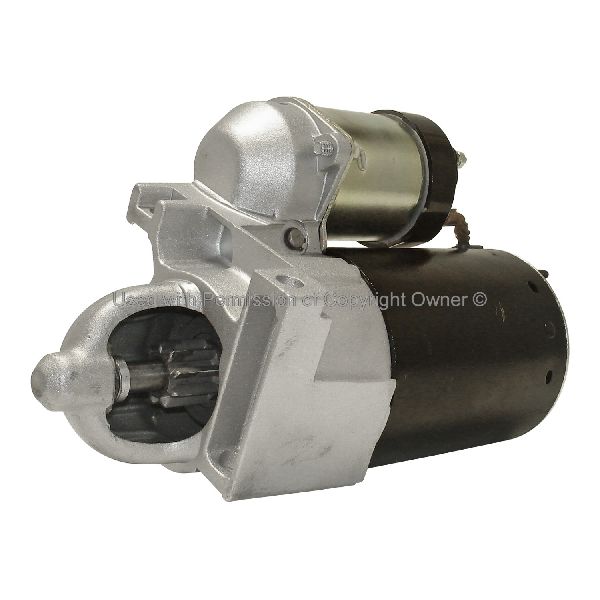

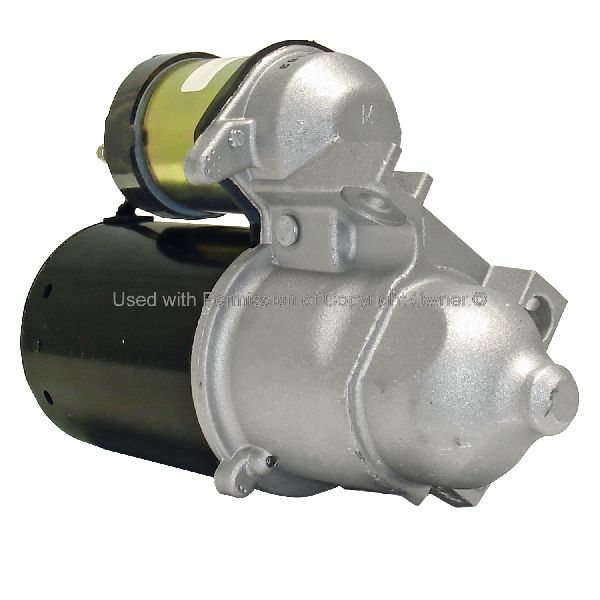

- MPA (Motor Parts of America): MPA is a major supplier of aftermarket electrical parts. Their starters are a standard replacement-grade option, offering a balance of quality and value for a daily driver or budget-conscious repair.
- Proform (High-Torque / Mini-Starter): Proform specializes in performance-oriented parts. Their high-torque, gear-reduction starters are an excellent upgrade for the Astro. They are smaller, lighter, and provide 40-50% more cranking power, which is very effective at overcoming heat soak issues. This is a highly recommended option for anyone experiencing hot-start problems.
Pro Tip: If you are replacing your starter due to heat soak, strongly consider a high-torque mini-starter like those from Proform. The extra cranking power and smaller size can permanently solve the problem. Some owners also add a starter heat shield wrap for extra protection.
Cost of a New Starter for a 1985-1990 Astro
The cost can be broken down into the part itself and the labor for installation. Replacement is noted by many owners as being difficult due to tight access and interference from transmission cooler lines.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter | $85 - $285 |
| Shop Labor | $180 - $350 |
| Total Estimated Cost | $265 - $635 |
Frequently Asked Questions
Is it hard to replace the starter on a 1985-1990 Astro?
Yes, it is considered a challenging DIY job. The starter is heavy and located in a tight space under the van. Access to the mounting bolts is often blocked by transmission cooler lines and the exhaust. While possible for an experienced DIYer with the right tools and a jack, many owners opt for professional installation.
🎬 Watch: Step-by-step guide to replacing the starter on your AstroDo I need shims for my new starter?
Maybe. Some starters, particularly aftermarket high-torque models, may require thin metal shims to achieve the correct distance between the starter gear and the flywheel. Many new starters include a shim kit and instructions. Proper spacing is critical to prevent grinding noises and damage.
My new starter has different electrical terminals than the old one. What do I do?
This can happen, especially if a previous owner installed a non-standard part. The large terminal is always for the main battery cable. The smaller terminal(s) are for the ignition switch signal. Your Astro should have one large wire and one or two small wires. Carefully match the function of the wires to the new starter's terminals, not necessarily the old starter's layout.
Are there any recalls for the starter on my Astro?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls or technical service bulletins (TSBs) for the starter motor on the 1985-1990 Chevrolet Astro.
Helpful Videos
Technical Specifications
Engine Compatibility: 4.3L V6, 2.5L I4. Voltage: 12V. Number of Teeth: Varies by specific part, check application. Common Mounting Style: 2-bolt, may require shims.
