Throttle Position Sensor for the 1985-1990 Dodge Caravan: A Complete Guide
If your Caravan is hesitating, stalling, or has a rough idle, the throttle position sensor might be the problem.
- A failing TPS on a 1985-1990 Caravan causes common issues like hesitation, rough idle, stalling, and poor acceleration.
- Replacement is a simple, low-cost DIY job that takes less than 30 minutes with basic tools.
- OEM Mopar parts are generally unavailable; a quality aftermarket brand like Standard Ignition or Walker Products is a reliable choice.
- Symptoms can overlap with other issues, but due to its low cost and high failure rate from age, the TPS is a logical first part to replace.
Understanding the Throttle Position Sensor in Your Caravan
The first-generation Dodge Caravan (1985-1990) uses a relatively simple but crucial sensor called the Throttle Position Sensor (TPS). This part is a potentiometer that is mounted on the throttle body. It tracks the rotation of the throttle plate, which opens and closes when you press the gas pedal. It sends a voltage signal to the engine computer that changes based on the throttle's position. This signal is critical for fuel delivery, ignition timing, and, in automatic models, transmission shift points. When it fails, it can cause a range of noticeable engine problems.
Symptoms of a Failing Throttle Position Sensor
A bad TPS can make your Caravan run poorly. Because the computer receives incorrect information about what your foot is doing, it can't manage the engine properly. You might notice one or more of the following issues:
- Hesitation or Stumbling: The van may hesitate or stumble when you try to accelerate.
- Rough or Unstable Idle: The engine might idle too high or too low, or the idle speed may surge up and down.
- Stalling: The engine may stall unexpectedly, especially when you come to a stop or when idling.
- Poor Acceleration: You might feel a lack of power when you press the gas pedal.
- Transmission Shifting Problems: On automatic vans, you might experience harsh, delayed, or incorrect gear shifts.
- Check Engine Light: A failing TPS can trigger the Check Engine Light, although this is less common on pre-OBD-II vehicles.
Known Issues & Recalls
There are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for the throttle position sensor on the 1985-1990 Dodge Caravan. Problems with this part are typically due to age and normal wear of the internal electronic components.
Choosing the Right Aftermarket TPS
For a vehicle of this age, finding an original Mopar (OEM) part is nearly impossible. The market is served almost exclusively by aftermarket brands. For a simple sensor like this, a quality aftermarket part is a perfectly reliable and cost-effective choice. The key is to choose a reputable brand.
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, Standard produces reliable sensors that meet or exceed original specifications. They are a trusted choice for many professional mechanics.
- Walker Products: Walker is another well-regarded brand with a long history in fuel and engine management parts. They engineer their sensors for durability and test them to ensure performance.
- Global Parts: This brand typically falls into the economy or standard tier. While more budget-friendly, it may not have the same long-term reliability or precise calibration as premium brands like Standard or Walker.
Pro Tip: Given the low cost of even the premium aftermarket brands for this part, it is wise to spend a few extra dollars for a sensor from a brand like Standard Ignition or Walker Products to ensure reliability and avoid having to do the job twice.
Cost of Replacing a Throttle Position Sensor
Replacing the TPS on a 1985-1990 Caravan is an inexpensive repair. The part itself is affordable, and the labor is minimal because the sensor is easy to access on the throttle body.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $37 - $63 |
| Shop Labor | $49 - $72 |
| Total Estimated Cost (DIY) | $37 - $63 |
| Total Estimated Cost (At a Shop) | $86 - $135 |
Costs are estimates and can vary based on your location and the specific parts chosen. The aftermarket part price is based on the provided inventory range.
Frequently Asked Questions
Is it difficult to replace the TPS on my Caravan myself?
No, this is a very easy DIY job for most people. The sensor is located on the side of the throttle body and is held in place by two screws. You just need basic hand tools. The process involves unplugging the electrical connector, removing the two screws, swapping the sensor, and reinstalling the screws and connector. The entire job usually takes less than 30 minutes.
Do I need to calibrate the new TPS?
For this generation of Caravan, a specific computer "relearn" procedure is generally not required like on modern cars. The engine computer will adapt to the new sensor's readings. However, it is good practice to disconnect the battery for about 15 minutes after installation to reset the computer's memory, which can help it adapt more quickly.
Can a bad TPS be confused with other problems?
Yes. Symptoms of a bad TPS can be similar to other issues, such as a dirty throttle body, vacuum leaks, or problems with the MAP sensor. However, because the TPS is a common failure point and is inexpensive and easy to replace, it's often a good first part to check if you experience classic symptoms like hesitation and erratic idle.
Is an OEM Mopar sensor better than aftermarket?
While OEM parts are usually the highest quality, they are likely no longer produced or available for a vehicle of this age. A high-quality aftermarket sensor from a reputable brand like Standard Ignition or Walker Products is an excellent and reliable choice that will restore original performance.

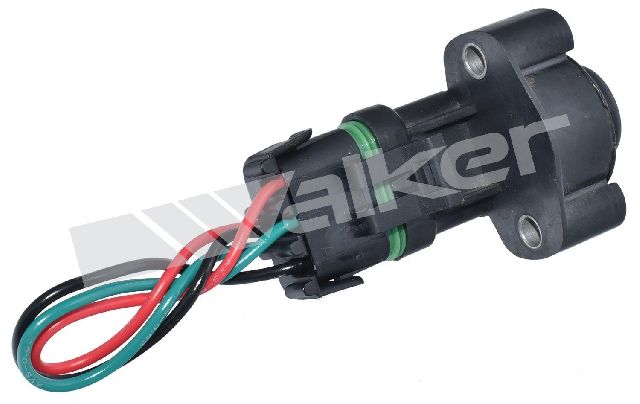

Technical Specifications
OEM Part Numbers: 4288898 5226509 5252684 5276010
3-prong blade male terminal; 1 female connector. Mounts to the throttle body with two screws.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
