Ford Mustang Ignition Control Module Guide (1985-1990)
Everything you need to know about the TFI ignition module in your Fox Body Mustang.
- The most common symptom of failure is the engine stalling when hot and not restarting until it cools down.
- You must use a special thermal paste (not dielectric grease) on the back of the new module to prevent it from overheating.
- A special thin-walled 5.5mm socket is required for removal and installation.
- Failure is very common due to its location on the hot distributor; consider relocating it for better reliability.
Understanding the Fox Body TFI Module
On 1985-1990 Ford Mustangs, the ignition control module is a specific type called a TFI module. TFI stands for Thick Film Ignition. It's a small electronic box, usually gray, that you'll find bolted to the side of the distributor. Its job is to act as a switch, taking signals from the distributor and the main engine computer to fire the ignition coil at precisely the right moment. This creates the high-voltage spark your spark plugs need to ignite the air-fuel mixture in the engine.
A Known Point of Failure
The TFI module is famous for failing on Fox Body Mustangs. Its location on the hot distributor causes the electronics inside to overheat and break down over time. This failure often happens when the engine is hot and can leave you stranded without warning.
Symptoms of a Failing TFI Module
A bad TFI module can cause a range of problems, from annoying to critical. The most common issue is the engine stalling when it gets hot, and then refusing to restart until it cools down. Other signs include:
- Engine completely dies while driving.
- No-start condition (engine cranks but won't fire).
- Engine breaking up or hesitating at higher RPM, feeling like a rev limiter.
- Rough idle or misfiring.
- Intermittent spark or weak spark.
Choosing the Right Aftermarket TFI Module
When your original TFI module fails, you have a few choices for replacement. While Motorcraft is the original Ford part, quality aftermarket options are available. Forum discussions among Mustang owners suggest that while some have had success with store brands, sticking with a known brand is a safer bet. Some even report new Motorcraft parts failing prematurely, suggesting quality may have changed over the years.
Brand Tiers for 1985-1990 Ford Mustang:
- OEM (Motorcraft): Traditionally the most reliable choice, though some owners now question their modern quality. If you can find a New Old Stock (NOS) part from the era, it's considered a great find.
- Premium Aftermarket (Delphi, Standard Ignition): These brands are generally considered reputable replacements. Standard Ignition (often sold as Borg Warner) is frequently recommended by owners.
- Store Brands/Value: While offering lifetime warranties, these can be a gamble in quality. Some owners use them without issue, while others report getting bad parts right out of the box.
Pro Tip: Use Thermal Paste!
No matter which brand you choose, you must apply a special thermal paste (often included) to the metal back of the new module. This is not the same as dielectric grease. This paste helps transfer heat away from the module to the distributor housing, which acts as a heat sink. Skipping this step will cause the new module to overheat and fail very quickly.
Cost of Replacing an Ignition Control Module
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $90 - $150 |
| New Aftermarket (Delphi, Standard) | $82.70 - $100.94 |
| Shop Labor | $60 - $120 |
Cost estimates are approximate and can vary by location and supplier.
Frequently Asked Questions (FAQ)
Do I need a special tool to replace the TFI module?
Yes, you need a special thin-walled 5.5mm (or 7/32") socket to remove the two small bolts holding the module to the distributor. Some bolts may use a T-20 Torx head instead. These special tools are inexpensive and readily available.
Can I test my TFI module before replacing it?
Yes. Many auto parts stores have a machine that can test your module, though you may need to call around as fewer stores offer this service now. They will typically test it multiple times to see if it fails when it gets hot.
What is a PIP sensor and is it related?
The PIP (Profile Ignition Pickup) is a sensor inside the distributor that tells the TFI module the engine's position and speed. A failing PIP sensor can cause similar symptoms to a bad TFI, 🎬 Watch: See these common TFI failure symptoms and how to replace it. like stalling when hot, and can set a Code 14. Often, if the PIP fails, it's easiest to replace the entire distributor.
Should I relocate my new TFI module?
Many owners choose to relocate the TFI module off the distributor to a cooler location, like the fender apron or radiator support, using a special wiring harness and a heat sink. This is a popular modification to prevent repeat failures from engine heat.

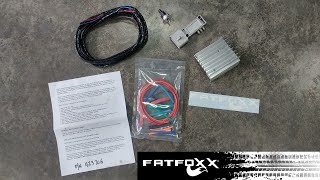

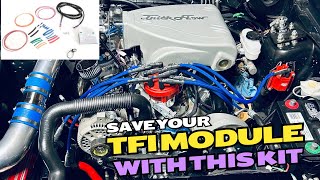

🎬 Watch: Step-by-step guide to installing a TFI relocation kit.Helpful Videos
Technical Specifications
OEM Part Numbers: D9VZ-12A199-A 1U2Z-12A199-AA E6PZ-12A297B
Distributor Mounted, Gray Module, Push Start Type
