Throttle Position Sensor (TPS) Guide for the 1985-1991 Chevrolet Caprice
Solve hesitation, stalling, and poor idle on your Caprice by understanding and choosing the right throttle position sensor.
- A faulty TPS on a 1985-1991 Caprice commonly causes hesitation, rough idle, and stalling.
- For best results and longevity, choose an OEM-quality brand like ACDelco or Delphi.
- Replacing the TPS is a simple DIY job that takes less than 30 minutes with basic tools.
- No recalls have been issued by the NHTSA for the throttle position sensor on this vehicle.
Is Your Caprice's TPS Failing? Common Symptoms
A bad throttle position sensor can cause a range of frustrating engine problems. Because the sensor's signal is so important for fuel control, a failure can make the car run poorly and unreliably. You might notice one or more of the following issues:
🎬 Watch: A visual guide to common throttle position sensor symptoms.- Hesitation or Stumbling: When you press the gas pedal, the car might hesitate or bog down before accelerating. This happens because the computer gets a delayed or incorrect signal about what your foot is doing.
- Rough or Unstable Idle: The engine idle speed may be too high, too low, or surge up and down on its own.
- Sudden Engine Stalling: The engine might die for no reason, especially when you let off the gas to come to a stop.
- Poor Acceleration: The car may feel sluggish and unresponsive, struggling to gain speed even with the pedal pressed down.
- Check Engine Light: A faulty TPS will often trigger the Check Engine Light. On these pre-1996 vehicles, this is an OBD-I system, which may show codes like 21 (signal voltage too high) or 22 (signal voltage too low).
Choosing the Right Aftermarket TPS for Your Caprice
When it comes to electronic parts for your 1985-1991 Caprice, the brand you choose matters. While OEM parts were the gold standard, today's market offers several tiers of aftermarket quality.
Tier 1: OEM-Level Quality
Brands: ACDelco, Delphi
ACDelco is the original equipment manufacturer (OEM) for General Motors. Choosing an ACDelco part is the closest you can get to the original component that came on your car from the factory. Delphi was once part of GM and is also considered an OEM-quality supplier for many electronic parts. For a critical sensor like the TPS, sticking with one of these two brands is your best bet for reliability, proper fit, and correct voltage signals right out of the box.
Tier 2: Reputable Aftermarket
Brands: Standard Ignition (SMP), NGK, Walker Products
These brands have a solid reputation in the aftermarket. Standard Motor Products, in particular, is often seen as a reliable alternative to OEM parts and has been used by mechanics for years with good results. NGK and Walker Products also produce quality sensors that should perform well. These are a great choice if you're looking for a balance between cost and quality.
Tier 3: Budget-Focused Options
Brands: Dorman, Replacement, True Tech, Global Parts
These brands offer the most affordable options. While they can get your car back on the road, their quality can sometimes be inconsistent. Forum discussions and mechanic reviews often suggest that budget electronic parts may have a shorter lifespan or less precise calibration compared to higher-tier brands. These are best suited for temporary fixes or if budget is the primary concern.
Aftermarket TPS Cost for 1985-1991 Chevrolet Caprice
| Part Type | Typical Price Range | Notes |
|---|---|---|
| New Aftermarket | $25.99 - $103.48 | Price varies by brand quality. |
| New OEM (ACDelco/GM) | $70 - $120 | Considered the most reliable option. |
| Shop Labor | $50 - $100 | Typically a quick job, about 0.5 hours of labor. |
Frequently Asked Questions
Can I replace the throttle position sensor myself?
Yes, this is a very DIY-friendly job. The TPS is located on the side of the throttle body and is held on by two screws (usually Torx head). You simply disconnect the electrical connector, remove the two screws, and swap the sensor. The entire process usually takes less than 30 minutes.
🎬 See this walkthrough on how to replace and adjust the sensor.Does the new TPS need to be adjusted or calibrated?

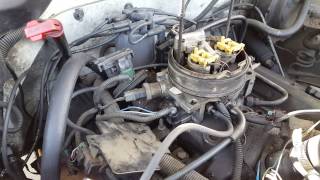

Some GM vehicles of this era require the TPS to be adjusted. After installing the new sensor, you may need to use a multimeter to check the voltage at the signal wire with the key on and the throttle closed. The voltage should be within a specific range (often around 0.5 volts). The screw holes on the sensor are often slotted to allow for slight rotation to get the voltage correct before tightening it down. 🎬 Watch: How to test the voltage on any GM TPS sensor. However, many aftermarket sensors are designed to work correctly without adjustment.
Are there any recalls for the Caprice TPS?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls specifically for the throttle position sensor on the 1985-1991 Chevrolet Caprice. Any recalls for these vehicles are over 15 years old and pertain to other issues like brake systems or wiring.
What happens if I don't replace a bad TPS?
Driving with a faulty TPS can be unpredictable and potentially unsafe. You will experience poor engine performance, bad fuel economy, and the risk of the engine stalling in traffic. It also puts extra stress on other components, like the transmission, which relies on the TPS signal for proper shifting.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17106681 17111471 19143600

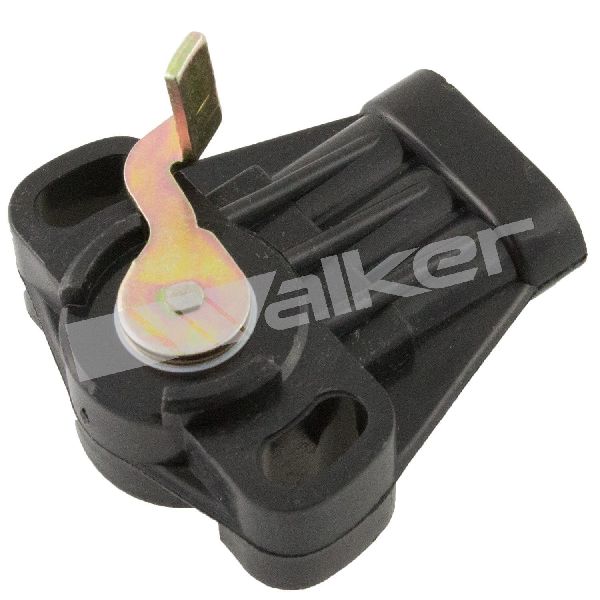

This sensor is a three-wire potentiometer located on the side of the throttle body. It uses a 5-volt reference from the ECM and sends back a variable voltage signal based on throttle plate angle. The electrical connector is typically a 3-pin Metri-Pack style on later models.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
