Spark Plug Wire Set Guide for the 1985-1991 GMC Safari
Get the right spark plug wires for your GMC Safari to restore engine performance and efficiency.
- Failing spark plug wires cause noticeable issues like rough idling, misfires, and poor fuel economy.
- ACDelco is the OEM-equivalent choice, while NGK offers similar high quality. Performance brands like MSD and Accel offer enhanced durability.
- Replacement is challenging due to tight engine access; removing the front wheels and inner fender liners can make the job much easier.
- Always replace wires one at a time to maintain the correct firing order and apply dielectric grease to the boots.
Signs of Failing Spark Plug Wires
When the spark plug wires on your Safari start to wear out, they can cause problems you'll likely notice while driving. Because they are exposed to high heat and engine vibration, the insulation can crack and the internal conductors can break down over time. If you experience any of the following, it might be time to inspect and replace your wire set:
- Rough Idling: Your engine may shake or run unevenly when the van is stopped.
- Engine Misfires: You might feel a stumble, hesitation, or jerking during acceleration. This happens because a weak or non-existent spark fails to ignite the fuel in a cylinder.
- Reduced Power and Poor Acceleration: A van that feels sluggish or struggles to get up to speed can be a sign of failing wires.
- Decreased Fuel Economy: When your engine isn't burning fuel efficiently due to poor spark, you'll find yourself at the gas pump more often.
- Difficulty Starting: The engine may crank for longer than usual or fail to start at all.
- Visible Damage: A visual inspection may reveal cracks, burns, or melting on the wire insulation or boots. 🎬 Watch this video to see common symptoms of bad wires.
Choosing the Right Aftermarket Spark Plug Wires
For a vehicle like the 1985-1991 GMC Safari, you have several good aftermarket options. The original equipment (OEM) provider for General Motors is ACDelco, which is always a reliable choice for a direct-fit, factory-quality part. However, other brands offer excellent quality, sometimes with features designed for improved performance or durability.
Brand Quality Tiers
| Tier | Brands | Notes |
|---|---|---|
| OEM-Equivalent Quality | ACDelco, NGK | These brands are known for meeting or exceeding original factory specifications. ACDelco is the GM original part, and NGK is a highly respected manufacturer of ignition components often considered equal or better in quality. |

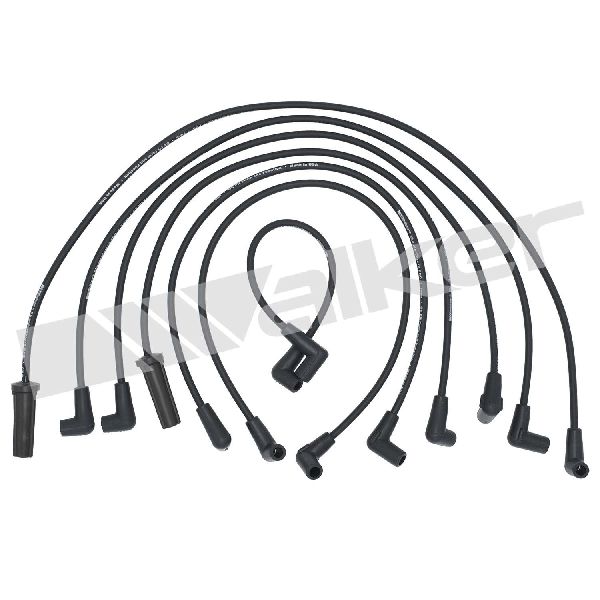

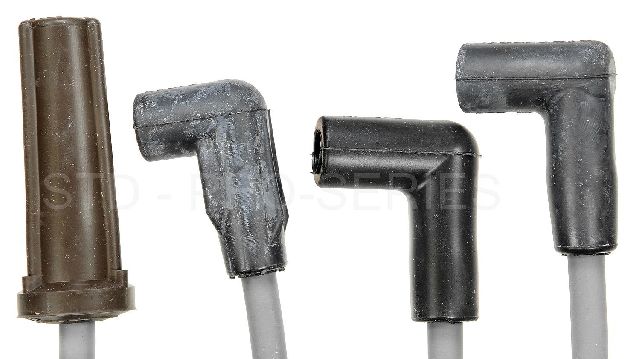

| Standard Replacement | Standard (SMP), Walker Products | These brands provide reliable, budget-friendly replacements that get the job done for daily driving. They are a good balance of cost and quality. |
| Performance/Heavy-Duty | MSD, Accel, Granatelli, Taylor Cable | Often featuring thicker 8mm or larger wires, these are designed for high-performance applications or for owners who want extra durability and heat protection. While not essential for a stock Safari, they can be a good upgrade, especially if you tow or operate in high-heat conditions. |
A Note on Installation
Replacing spark plug wires on a GMC Safari is known to be a challenging job due to tight access, especially on the 4.3L V6 engine. Many owners find it much easier to reach the spark plugs by removing the front wheels and inner fender liners. Always replace one wire at a time to avoid mixing up the firing order, which can cause severe engine problems. Using a small amount of dielectric grease inside the boots will help seal out moisture and make future replacements easier.
🎬 See a step-by-step guide for changing wires on a Safari.Known Issues, Recalls, and TSBs
There are no specific recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) for spark plug wires on the 1985-1991 GMC Safari. Any major recalls for GM vehicles around this era typically concern other issues like ignition switches in different models, seat bolts, or steering components.
Frequently Asked Questions (FAQ)
How often should I replace my spark plug wires?
A general rule is to inspect them with every spark plug change and replace them if they show any signs of wear, damage, or failed resistance tests. For many vehicles of this era, a replacement every 60,000 to 90,000 miles is a good practice, but it can vary based on driving conditions and wire quality.
Can I just replace one bad wire?
While you can, it's highly recommended to replace the entire set at the same time. Wires degrade at a similar rate, so if one has failed, others are likely not far behind. Replacing them as a set ensures a balanced and reliable ignition system.
What's the difference between 7mm and 8mm wires?
The measurement refers to the diameter of the wire. Thicker wires, like 8mm or even 10mm, generally have better insulation, which helps prevent voltage leaks and protects against high engine heat. For a stock GMC Safari, standard 7mm or 8mm wires are perfectly adequate. Performance brands often use larger diameters.
Do I need special tools to replace spark plug wires?
A spark plug wire puller can be very helpful to safely remove the boots without damaging the wires or the plugs. However, many people can do the job by firmly gripping the boot (never the wire itself), twisting, and pulling. Due to the difficult access on the Safari, various extensions and swivels for your socket wrench will be needed for the spark plugs themselves.
🎬 Learn a secret trick for removing stuck spark plugs easily.What is dielectric grease and do I need it?
Dielectric grease is a non-conductive, silicone-based grease applied to the inside of the spark plug wire boots. It seals out moisture, prevents corrosion, and makes it easier to remove the wires in the future. It is highly recommended for any spark plug wire installation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9616W
Vehicle primarily uses a 4.3L V6 engine, which requires a set of 6 wires plus a coil wire. Wires are typically 7mm or 8mm in diameter with spiral core conductors. Boot angles and lengths are specific to the engine to ensure proper fit and clearance from hot exhaust manifolds.
