Volvo 740 Engine Oil Pressure Switch: A Comprehensive Guide for 1985-1992 Models
Is your oil warning light flickering or staying on? Here’s what every 1985-1992 Volvo 740 owner needs to know.
- If the oil light comes on, stop the engine immediately and check the oil level before assuming the switch is bad.
- Replacement is a simple DIY job requiring a 24mm deep socket; the switch is on the driver's side of the block.
- Avoid budget-tier brands like URO for this critical part; forum users report high failure rates.
- Do not use thread sealant or Teflon tape, as it can prevent the switch from grounding properly.
Understanding Oil Pressure Switch Failures in Your Volvo 740
The oil pressure switch is a known weak point on many vehicles, and the Volvo 740 is no exception. Due to its location, it endures constant heat and vibration. Failures are common, but the good news is that the part is inexpensive and relatively easy to replace. Understanding the symptoms of a failing switch is key to preventing a misdiagnosis of a much more serious engine problem.
Common Failure Symptoms
A bad oil pressure switch can cause several confusing symptoms. It's important to know what to look for:
- Flickering Oil Light: The oil warning light may flicker, especially at idle when oil pressure is naturally at its lowest. As the switch ages, its internal components can wear out, causing it to send an intermittent signal.
- Warning Light Stays On: The switch can fail in the 'closed' position, causing the oil light to stay on constantly, even if the oil pressure is perfectly fine.
- Warning Light Never Comes On: This is a more dangerous failure. The switch can fail 'open', meaning it will never complete the circuit to warn you of a real low-pressure situation. A good habit is to check that the oil light illuminates for a moment when you turn the key to the second position before starting the engine.
- Oil Leaks: The switch's plastic housing can crack or the internal diaphragm can fail, causing engine oil to leak. Sometimes, oil can even seep through the electrical connector itself.
Do Not Ignore the Oil Warning Light
Never assume the warning light is just a faulty switch. If your oil light comes on while driving, pull over immediately and shut off the engine. Driving with low oil pressure can destroy your engine in minutes. Always verify the engine's oil level first. If the level is correct, it is best to have the vehicle towed for diagnosis rather than risk catastrophic engine failure.
Choosing the Right Aftermarket Part
When shopping for a new oil pressure switch, you'll find a wide range of brands and prices. For a part this critical, quality matters more than saving a few dollars. Based on owner experiences in Volvo forums, aftermarket brand quality varies significantly.
- Recommended Tier (Higher Confidence): Brands like Standard Ignition (SMP) or Facet are generally considered reliable mid-tier options that offer a good balance of quality and value. While not OEM, they are established manufacturers.
- Use With Caution (Mixed Results): Beck Arnley is a parts aggregator, meaning they source parts from various manufacturers. You might get a high-quality part, or you might get a lower-quality one re-boxed. It's a gamble, and for a critical part like this, it may not be worth the uncertainty.
- Budget Tier (Not Recommended): Brands like URO Parts have a widespread reputation in Volvo and other European car communities for poor quality and high failure rates, sometimes right out of the box. While the low price is tempting, using a URO switch is not recommended as it could fail prematurely and leave you without a warning or with a constant, incorrect one.
Many experienced Volvo owners report that after trying a cheap aftermarket switch that failed, they reverted to a genuine Volvo part or a used one from a trusted source. If you want maximum peace of mind, investing a little more in a higher-quality brand is wise.
Cost of Replacement
This is one of the more affordable repairs for your Volvo 740. The part itself is inexpensive, and the labor is minimal.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Oil Pressure Switch | $5.78 - $23.55 |
| New OEM Oil Pressure Switch | $30 - $50 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on a 1985-1992 Volvo 740?
It is screwed into the engine block on the driver's side (left side), near the oil filter and just behind the water pump. It has a single wire connected to it.
What tools are needed to replace the switch?
You will typically need a 24mm deep socket for the original Volvo switch. Some aftermarket replacements may use a 22mm size. A socket extension and a universal joint can make access much easier.
My oil light is on. How do I know if it's the switch or a real problem?
First, check your oil level. If it's correct, you can test the circuit. Disconnect the wire from the switch and, with the ignition on, touch the wire to a clean metal part of the engine block. If the oil light on the dash illuminates, the wiring and bulb are good, pointing towards a faulty switch. However, the safest method is to have a mechanic test the actual oil pressure with a mechanical gauge.
Should I use Teflon tape or thread sealant on the new switch?
No. The switch makes its ground connection through the threads to the engine block. Using sealant or tape can insulate the threads and prevent the switch from working correctly. The tapered pipe threads are designed to seal on their own when properly tightened.

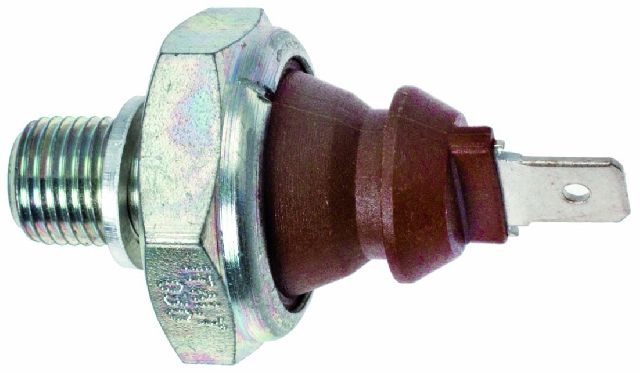

Technical Specifications
OEM Part Numbers: 1347003
Location: Driver's side of engine block Thread Size: M14x1.5 Socket Size: 24mm (Original) Connector: Single Pin
