Volvo 740 Drivetrain Universal Joint Replacement Guide (1985-1992)
Address driveshaft clunks and vibrations in your 1985-1992 Volvo 740 by choosing the right U-joint.
- Symptoms of failure include clunking when shifting, vibrations at speed, and squeaking noises from under the car.
- Factory U-joints are 'staked-in' and not easily serviceable; replacement requires a press and is more difficult than typical U-joint jobs.
- Invest in premium brands like Dana Spicer or SKF for longevity; avoid budget brands like URO for this critical part.
- It is highly recommended to replace all three U-joints and the center support bearing at the same time.
Symptoms of a Failing Universal Joint
A worn U-joint on a Volvo 740 gives clear warning signs. The needle bearings inside the joint's caps wear out, creating excessive play. You will notice one or more of these symptoms, which typically start mild and get worse.
🎬 Watch: How to tell if your U-joint is bad- Clunking or Pinging Noise: A distinct "clunk" or "ping" when you shift from Park into Drive or Reverse is a classic sign. This is the sound of the driveshaft taking up the slack in the worn joint.
- Vibration While Driving: A vibration that increases with speed is another common symptom. It may feel like it's coming from under the center or rear of the car. This happens because the worn joint can no longer spin perfectly balanced.
- Squeaking or Grinding: A rhythmic squeaking noise that matches your speed can occur as the dry, worn-out bearings rotate. This often points to a lack of lubrication and imminent failure.
Important: Factory "Staked-In" U-Joints
From the factory, most Volvo 740 driveshafts came with "staked-in" U-joints. This means the manufacturer pressed the U-joint caps in and then deformed the metal of the driveshaft yoke to hold them in place, rather than using simple snap rings (circlips). This makes them non-serviceable in the traditional sense. Replacing them requires pressing the old joint out, which destroys it, and cleaning up the staked areas. Aftermarket U-joints are designed to fit in their place, usually secured with internal clips. This process is more difficult than a standard U-joint replacement and often requires a hydraulic press.
🎬 See how to remove a staked-in universal jointChoosing the Right Aftermarket U-Joint
Since original Volvo U-joints were not meant to be replaced individually, the aftermarket is your only realistic option. Quality varies significantly between brands, so choosing the right one is important for a lasting repair.
Premium Brands ($40 - $85)
These brands have a strong reputation for quality and durability, often meeting or exceeding original equipment specifications. For a critical part like a U-joint, spending a little more here is a wise investment.
- Dana Spicer: Widely considered the gold standard for driveline components. Their parts are known for excellent materials and manufacturing. Many professionals and enthusiasts will use nothing else. Their non-greaseable joints are often considered their strongest.
- SKF: A well-respected European brand known for high-quality bearings and driveline parts. They are a very reliable choice for your Volvo.
Standard (Mid-Grade) Brands ($20 - $40)
These brands offer a good balance of price and quality for a daily-driven vehicle. They are a significant step up from budget parts.
- Moog: A popular and widely available aftermarket brand that generally offers decent quality parts. While some users have noted inconsistencies in recent years, they remain a solid option for most repairs.
- GMB: A Japanese manufacturer that produces many OEM and aftermarket parts. While some very old forum posts from 2004 were critical, GMB is generally seen today as a reliable standard replacement part.
Economy Brands (Under $20)
While the low price is tempting, these brands are not recommended for a part that is labor-intensive to install and critical to your car's operation.
- URO Parts: Forum discussions among Volvo owners consistently warn against using URO for drivetrain components. Reports of premature failure and poor fit are common, making them a risky choice despite the low cost.
| Item | Estimated Cost |
|---|---|
| Aftermarket U-Joint (Single Part) | $15 - $85 |
| Shop Labor (per U-joint, includes driveshaft R&R) | $200 - $350 |
| Total Estimated Cost (One U-Joint) | $215 - $435 |
Pro Tip: Your driveshaft has two or three U-joints and a center support bearing. If one U-joint has failed, the others are likely near the end of their life. It is most cost-effective to replace all U-joints and the center support bearing at the same time to avoid future repairs.

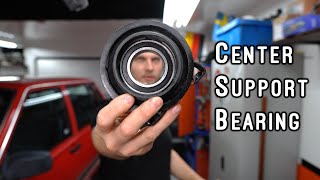

🎬 Watch: DIY guide for center support bearing installationFrequently Asked Questions
How many U-joints does my Volvo 740 have?
Most 1985-1992 Volvo 740s have a two-piece driveshaft with a total of three universal joints and one center support bearing. One is at the front, one is in the middle near the center bearing, and one is at the rear differential.
What's the difference between a driveshaft U-joint and a steering U-joint?
They are completely different parts. The driveshaft U-joints are in the driveline underneath the car. The steering U-joint is part of the steering column and connects it to the steering rack. A bad steering U-joint causes clunking felt in the steering wheel, especially during turns, but does not cause the same driveline vibrations.
Should I choose a greaseable or non-greaseable U-joint?
Non-greaseable (sealed) U-joints are generally considered stronger because the cross is solid metal without channels drilled for grease. They are preferred by many, including Spicer, for high-strength applications. Greaseable joints can last just as long if you are diligent about greasing them regularly, which helps push out contaminants. For most owners, a high-quality non-greaseable joint from a brand like Spicer or SKF is a fit-and-forget solution.
Can I replace a staked-in U-joint myself?
It is possible, but it is a difficult DIY job without the right tools. You will need a powerful bench vise or a hydraulic press to force the old joints out and press the new ones in. Using a hammer is not recommended as it can damage the driveshaft yoke. If you are not equipped for this, it is best to take the driveshaft to a machine shop or your mechanic for the U-joint replacement.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1209814 3520997
Fits two-piece driveshafts on rear-wheel-drive models. Aftermarket parts convert from factory staked-in design to a serviceable circlip design. Multiple sizes were used, so measuring your car's existing U-joints before ordering is recommended.
