Cadillac DeVille HVAC Heater Hose Guide for 1985-1993 Models
Everything you need to know before replacing the heater hoses on your 1985-1993 Cadillac DeVille.
- You must identify your DeVille's engine (4.1L, 4.5L, or 4.9L) to get the correct hose, as they are not interchangeable.
- Be aware that your car may have a complex, one-piece hose assembly, not just simple individual hoses; this greatly affects the price.
- A coolant leak is a serious issue. Driving with a significant leak can lead to engine overheating and catastrophic damage.
- For reliability, choose a premium aftermarket brand like ACDelco or Gates and always replace the hose clamps at the same time.
Is Your Cadillac DeVille's Heater Hose Failing?
With vehicles of this vintage, rubber components like heater hoses are often at the end of their service life. Heat, pressure, and age cause the rubber to degrade, leading to leaks and potential engine damage. Recognizing the signs of a failing heater hose can save you from a breakdown and a much more expensive repair.
Common Failure Symptoms:
- Sweet Smell: A distinct, sweet smell inside or outside the car is the scent of leaking antifreeze (coolant). Even a small leak can produce a strong odor when the engine is warm.
- Visible Leaks or Puddles: You might see green, orange, or pink fluid dripping under the engine bay, especially on the passenger side where the hoses connect to the firewall.
- No Heat in Cabin: If a hose is clogged or has failed completely, hot coolant can't reach the heater core, leaving you with cold air from the vents 🎬 See how to replace a leaking heater core if hoses aren't the issue. even when the engine is warm.
- Engine Overheating: A significant coolant leak from a heater hose will cause the engine to run low on coolant, leading to overheating. This can cause severe engine damage if not addressed immediately.
- Foggy Interior Windows: If the leak is near the firewall, coolant can sometimes atomize and be pulled into the cabin's ventilation system, causing a greasy, hard-to-clear film on the inside of the windshield.
Warning: Engine Overheating
If your temperature gauge is in the red or you see a warning light, pull over immediately and shut off the engine. Driving with an overheating engine can lead to catastrophic failure, including warped cylinder heads or a seized engine.
🎬 Watch: Diagnosing severe overheating and coolant loss on a 4.9L engine.Choosing the Right Aftermarket Heater Hose

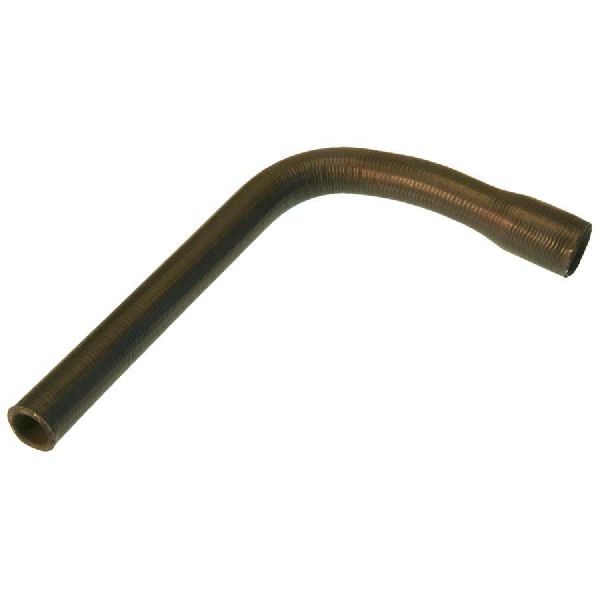

For the 1985-1993 Cadillac DeVille, the heater hose system can be surprisingly complex. Some models use simple, individual hoses, while others, particularly the 4.5L V8, use a molded, one-piece assembly with multiple branches and a built-in tee. This complexity explains the vast price difference you may see, from under twenty dollars for a single hose to several hundred for a complete assembly.
Pro Tip: Check Your Engine
Before ordering, you MUST know which engine your DeVille has (4.1L, 4.5L, or 4.9L). The hose routing and design are different for each. Also, note that earlier models (around 1985-1988) may have a heater control valve that was eliminated on later models, affecting which hoses you need.
Aftermarket Brand Quality Tiers
Original GM hoses for this era are likely discontinued. Aftermarket is your best bet, and quality varies. For a critical part like a heater hose, it's wise to invest in a quality brand to avoid premature failure.
- Premium (ACDelco, Gates): ACDelco is GM's own parts brand and is generally considered a top-quality choice. Gates is a highly respected manufacturer that often supplies original equipment parts to automakers, including GM. You can trust either of these brands for proper fit and long-lasting EPDM rubber construction that resists degradation.
- Standard (Continental, Dayco): Continental and Dayco are well-known aftermarket brands that produce reliable hoses. They are a solid choice for a standard replacement. However, some mechanics report that Dayco hoses can occasionally have a less-than-perfect fit compared to premium brands.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Hose/Assembly | $15 - $365 |
| Shop Labor | $100 - $300 |
Costs are estimates. The wide range for the part is due to the difference between a single hose and a complex, multi-branch assembly. Labor costs vary by region and the complexity of the specific hose being replaced.
Frequently Asked Questions (FAQ)
Why are some heater hoses so expensive?
The price depends on complexity. A simple, straight piece of hose is inexpensive. However, many 1985-1993 DeVilles use complex, pre-formed assemblies that combine multiple hoses, tees, and branches into a single part. These are more difficult to manufacture and are therefore much more expensive.
My hose has a small leak. Can I just patch it?
Patching a pressurized coolant hose is not recommended and should only be considered a temporary, emergency measure to get you off the road. The heat and pressure will cause any patch to fail quickly. The only correct repair is to replace the entire hose or hose assembly.
Should I replace the hose clamps too?
Yes, absolutely. It's a professional best practice to replace the hose clamps whenever you replace a hose. Old clamps can lose their tension or corrode, leading to leaks even with a new hose. Spring-style clamps are often better than worm-gear clamps as they maintain constant tension as the rubber expands and contracts with heat.
Is replacing the heater hose a DIY job?
For a mechanically inclined owner, yes. However, access can be tight, and the original factory clamps can be difficult to remove without special tools. Be prepared for coolant to spill and have a plan to catch it. After replacement, the cooling system must be refilled and properly bled of air to prevent overheating.
🎬 Watch: How to properly bleed the cooling system on GM vehicles.Helpful Videos
Technical Specifications
Vehicle and engine-specific molded rubber hoses. Common hose inside diameters are 5/8 inch. Hoses are specific to the 4.1L, 4.5L, and 4.9L V8 engines used between 1985 and 1993. Some later models use a multi-branch hose assembly.
