Jeep Cherokee Headlight Switch Guide for 1985-1993 Models
Flickering headlights or a dead switch in your XJ? Here is what you need to know before you buy a new one.
- The root cause of failure is a factory design flaw; the switch is overloaded.
- A headlight relay harness is not optional; it is a necessary upgrade to prevent repeat failures.
- Always inspect the wiring connector for melting and replace it if it's damaged.
- Loss of dash lights is a very common symptom of a bad headlight switch in these Jeeps.
Common Failure Symptoms in the 1985-1993 XJ
The headlight switch in this generation of Cherokee is a known weak point. The original factory design sends all the power for the headlights directly through the switch. This creates a lot of heat, which can cause the switch and its wiring connector to melt over time. When your headlight switch starts to fail, you will notice clear warning signs.
- Flickering or Dimming Headlights: Lights may flicker or go out when you hit a bump. Sometimes they may seem unusually dim.
- Headlights Don't Turn On: You might have parking lights but no headlights, or no lights at all.

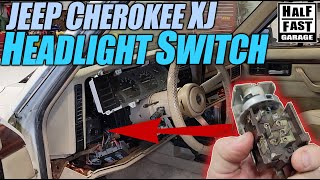

- Dash Lights Not Working: A bad switch can cause the instrument panel lights to stop working, even if the headlights still do. 🎬 Watch: Troubleshooting dash light failure and switch replacement. This is a very common symptom.
- Melted Plastic Smell: A burning smell from the dashboard area is a serious sign that the switch or its connector is overheating.
- Blown Fuses: The switch can short out internally and repeatedly blow the fuse for the instrument or tail lights.
- Switch Only Works in a 'Sweet Spot': You may find that the lights only work if you wiggle the knob or pull it out just part-way between the clicks.
A Critical Upgrade: The Headlight Relay Harness
Simply replacing a failed headlight switch is only a temporary fix. Because of the factory wiring design, the new switch will eventually fail for the same reason: too much electrical current and heat.

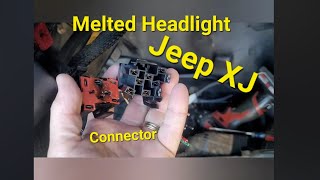

The permanent solution is to install an aftermarket headlight relay harness. This harness uses relays to draw power directly from the battery to the headlights. The headlight switch is then only used as a low-power trigger for the relays. This takes the heavy electrical load off the switch, preventing it from melting and ensuring a long life for your new switch. 🎬 See how to install a relay harness to prevent melting. As a bonus, many owners report that their headlights are significantly brighter after installing a relay harness.
Choosing the Right Aftermarket Headlight Switch
For a vehicle like the 1985-1993 Cherokee, new Original Equipment Manufacturer (OEM) parts are often unavailable or extremely expensive. Aftermarket parts are the most common and affordable solution. The brands available are generally similar in function, but it's helpful to understand their place in the market.
Brand Tiers for Jeep XJ:
- Standard Ignition (SMP): Often considered a higher-quality aftermarket brand with a long history in electrical components. For a part that handles electrical loads, this can provide extra peace of mind.
- Crown Automotive / Omix-Ada: These brands specialize in Jeep replacement parts. For many components, they offer good value and are widely used by the Jeep community. Reviews can be mixed depending on the specific part, with some users preferring one over the other, but both are established options for a switch like this.
Pro Tip: Regardless of the brand you choose, the most important factor for longevity is installing a headlight relay harness. Even the best switch will fail prematurely without one. Also, always inspect the wiring connector plug. If it shows any signs of melting or charring, it must be replaced along with the switch.
Headlight Switch Replacement Cost
Replacing the headlight switch can be done by a DIYer with basic tools, but the cost can vary if you take it to a shop. The real long-term savings come from installing a relay harness at the same time.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Headlight Switch | $31 - $43 |
| Headlight Relay Harness Kit | $20 - $40 |
| Shop Labor (Switch Only) | $100 - $180 |
| Shop Labor (Switch + Harness) | $180 - $300 |
Frequently Asked Questions (FAQ)
Is it difficult to replace the headlight switch myself?
It is a manageable job for a DIYer, but can be tricky. It requires removing the lower dash panel and reaching up into a tight space to release the switch knob and disconnect the wiring. There is a small spring-loaded button on the switch body that must be pressed to release the pull knob. 🎬 Watch this quick guide on releasing the switch knob. Expect to spend about an hour on the job.
Why did my new switch fail after only a few months?
This almost always happens because a headlight relay harness was not installed. The factory wiring design overloads the switch, causing it to burn out. A new switch installed without a relay harness will suffer the same fate.
My dash lights don't work, but my headlights do. Is it the switch?
Yes, this is a classic symptom of a failing headlight switch in an XJ. The part of the switch that controls the instrument panel lights often fails before the headlight circuit does. The dimmer function for the dash lights is also integrated into the switch.
Are there any recalls on the 1985-1993 Cherokee headlight switch?
No, there are no official NHTSA recalls for the headlight switch on this specific model range. The issue is a widely known design flaw rather than a specific manufacturing defect that would trigger a recall.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56000036 56003119
Pull-knob style switch with integrated instrument panel dimmer. Controls parking lights, headlights, and dash illumination.
