BMW 535i E28 & E34 Brake Light Switch Guide (1985-1994)
Solve common brake light, cruise control, and warning message issues by choosing the right replacement switch.
- A faulty brake light switch is the most common cause of the 'BRAKE LIGHT CIRCUIT' warning on E34 535i models.
- Failure is dangerous, as it can cause your brake lights to not work at all or stay on constantly.
- Replacement is a simple DIY job that can be done in under an hour with basic tools.
- For best results and longevity, choose an OEM supplier brand like Hella or Febi over budget options.
Understanding Brake Light Switch Failure in Your 535i
The brake light switch on the E28 and E34 generation 535i is a common failure point due to age and use. The internal plastic and electrical contacts wear out, leading to a range of frustrating and dangerous symptoms. For the 1985-1988 E28 535i and early E34 models, a recall was issued for switches that could overheat and melt from the electrical load of the center brake light. Later E34 models (1990-1994) were also subject to a recall for a different switch design that could fail and leave the brake lights stuck on or off. If your car displays a "BRAKE LIGHT CIRCUIT" message, it's a near-certain sign the switch is the culprit.
Symptoms of a Bad Brake Light Switch
A failing brake light switch can manifest in several ways. The most obvious signs are related to your brake lights, but other systems are also affected.
🎬 Watch this overview of common bad brake light switch symptoms.- Brake Lights Don't Work: The most dangerous symptom. The switch fails to complete the circuit, and your brake lights will not illuminate when you press the pedal.
- Brake Lights Stay On: The switch can fail in the 'on' position, leaving your brake lights illuminated constantly, which can drain your battery and confuse other drivers.
- "BRAKE LIGHT CIRCUIT" Warning: Your E34's check control panel will display this specific message when it detects a fault in the switch's dual-circuit system. This is the car's way of telling you the switch has failed its internal self-test.
- Cruise Control Inoperable: The switch is responsible for deactivating cruise control. If it's faulty, the cruise control system may not engage or will shut off randomly.
Safety & Legal Warning
Driving without functional brake lights is illegal and extremely dangerous. If you suspect your brake light switch has failed, diagnose and repair the issue immediately before driving the vehicle.
Choosing the Right Aftermarket Brake Light Switch
When replacing the switch, you have several options. For a critical safety component like this, quality matters. The brands listed are generally available, but their quality can vary.
| Brand Tier | Brands | Quality & Cost Assessment |
|---|---|---|
| OEM Supplier | Hella, Febi Bilstein | Hella is a well-known original equipment manufacturer for BMW. Choosing a Hella or Febi switch is the closest you can get to a genuine BMW part without the dealer price tag. These are highly recommended for fit and longevity. |
| Reputable Aftermarket | Vemo, Facet, Standard Ignition | These brands are established in the aftermarket. Quality is generally good and they offer a solid balance of price and reliability. Vemo and Facet are common choices for European vehicles. |
| Budget / Economy | URO Parts, Rostra | URO Parts offers budget-friendly options. While some of their parts have improved, they have a mixed reputation for quality and longevity on sensitive electronic parts. They can be a viable option if cost is the primary concern, but may not last as long as higher-tier brands. Rostra is less common for this specific application. |
Pro Tip: Check Your Part Number
The primary OEM part number for most of this generation is 61-31-8-360-417, which superseded older numbers like 61-31-1-382-385. Always verify the part fits your specific year and model, as there was a switch design change around March 1988.
Frequently Asked Questions (FAQ)
Can I replace the brake light switch myself?

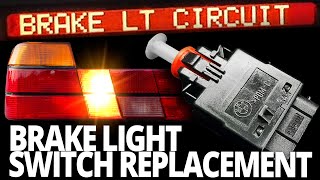

Yes, this is a very feasible DIY job for most owners. It requires working in the driver's footwell, which can be awkward. You'll need to remove the lower dash panel to access the switch, which is located above the brake pedal. 🎬 See how to replace the switch on your E34. The switch itself typically twists or clips into a bracket.
How long does it take to replace the brake light switch?
For a first-time DIYer, expect the job to take about 30-60 minutes. An experienced mechanic can do it in under 20 minutes. The most time-consuming part is often removing and reinstalling the lower dash trim panel.
Why do my brake lights work but I still get a "BRAKE LIGHT CIRCUIT" error?
The switch in the E34 has a dual-circuit design. One circuit operates the lights, and the other is for self-testing by the car's computer. If the test circuit fails, the computer will post the warning message even if the lights appear to be working. This is a clear sign the switch is failing and needs replacement.
Is there a recall on this part for my car?
Yes, there were two significant recalls covering the 1985-1994 period. An early recall affected 1986-1987 models for a switch that could overheat. A later recall affected 1990-1994 models for a switch that could fail internally. While these recalls are old, they highlight the part's history as a known issue. Any replacement part you buy today will be of the updated, safer design.
Helpful Videos
Technical Specifications
OEM Part Numbers: 61318360417 61311382385 61991382385
4-Pin Mechanical Plunger Switch
