1985-1994 Cadillac DeVille Suspension Strut Bellows: A Replacement Guide
Protect your DeVille's classic smooth ride by replacing these critical but often-overlooked suspension protectors.
- Always replace strut bellows when installing new struts to protect your investment.
- A torn bellow will cause premature failure of the entire strut assembly by allowing dirt to destroy the seals.
- The replacement is part of a full strut job; it is not a standalone repair.
- Reputable aftermarket brands like KYB and Moog offer reliable, quality bellows for this vehicle.
Is Your DeVille's Strut Bellows Failing?
For a car as old as the 1985-1994 Cadillac DeVille, the original rubber or plastic strut bellows have likely become brittle and failed. The most obvious sign of a bad strut bellow is a visual one. Look behind your wheels at the strut assembly. You will likely see the bellow is cracked, torn, split, or even completely missing. There are no noises or driving symptoms directly from a bad bellow, but its failure is a sure sign that the strut it was protecting is now exposed and will wear out much faster.
Choosing the Right Aftermarket Bellows
For a vehicle of this vintage, finding original equipment (OEM) bellows is nearly impossible and not cost-effective. Aftermarket parts are the go-to solution. They are readily available and provide excellent protection for new struts. For a simple component like a bellow, you don't need to overspend, but choosing a reputable brand is always wise.
Brand Options:
- KYB: Often considered an OEM-quality supplier, KYB parts are known for their excellent fit and durability. A KYB bellow is a reliable, no-nonsense choice that you can trust to protect your new struts.
- Moog: Moog is well-regarded in the suspension world, often for making parts that are designed to be more durable than the original. While this is more critical for moving parts like ball joints, their bellows are also high-quality and a solid choice for your DeVille.
Pro Tip: The strut bellow is almost always replaced as part of a complete strut replacement job. It is not practical to replace only the bellow, as the labor involves completely disassembling the strut and spring assembly. Always install new bellows when you install new struts.
Cost of New Aftermarket Strut Bellows (1985-1994 Cadillac DeVille)
| Part | Price Range |
|---|---|
| Suspension Strut Bellows (Per Wheel) | $31.69 - $31.94 |
Note: This cost is for the part only. Labor for installation will be part of a larger strut replacement job, which can cost several hundred dollars per axle.
Frequently Asked Questions (FAQ)
Do I have to replace my strut bellows?
If the old one is cracked, torn, or missing, then yes, you absolutely should. A new bellow is very cheap insurance for the much more expensive strut you are installing. Driving without a bellow will expose the strut rod to damage, causing the new strut to fail prematurely.
Can I just replace the bellow without replacing the whole strut?
While technically possible, it is not recommended. The labor required to remove and disassemble the entire strut assembly just to replace a $32 part is not cost-effective. Bellows should always be replaced at the same time as the struts.
Are there any recalls for the 1985-1994 DeVille suspension?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls for the suspension struts or bellows on the 1985-1994 Cadillac DeVille. Any failures are due to the age and normal wear of the components.
What happens if I don't replace a torn strut bellow?
If you don't replace a torn bellow, dirt, sand, and water will coat the polished strut rod. As the suspension moves, this grit gets pulled into the strut's main seal, scratching it and causing the internal hydraulic fluid to leak out. This will destroy the strut, leading to a bouncy ride, poor handling, and the need to do the entire strut replacement job all over again.
Technical Specifications

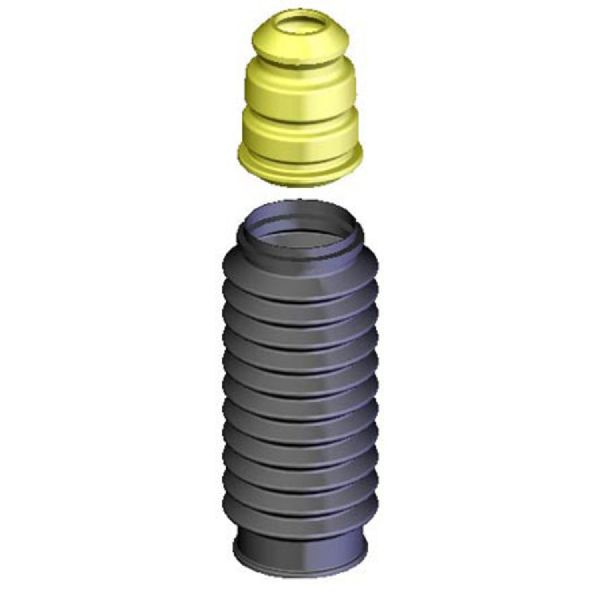

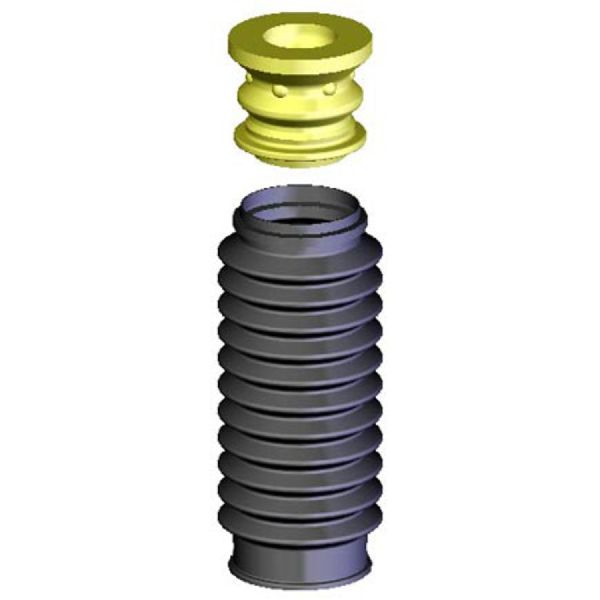

This part is a flexible protective boot, often made of rubber or thermoplastic. It is designed to fit specific strut diameters and travel lengths for the 1985-1994 DeVille chassis. Some aftermarket bellows kits also include a new bump stop.
