Chevrolet Astro 1985-1994 Engine Timing Cover Replacement Guide
Leaking oil or coolant from the front of your Astro's engine? Your timing cover might be the problem.
- The most common failure is an oil leak from the gasket or front crankshaft seal.
- This is a labor-intensive job; it is highly recommended to also replace the timing chain, gears, and water pump at the same time.
- A harmonic balancer puller is a required special tool for this repair.
- Pay close attention to sealing the junction between the new cover and the oil pan to prevent new leaks.
Is Your Astro's Timing Cover Failing?
The timing cover on the 1985-1994 Chevy Astro is a durable metal part, but its gaskets and seals can wear out over time. When they fail, they cause leaks that can make a mess and potentially harm your engine.
Key Symptoms of a Bad Timing Cover
- Oil Leaks: This is the most common sign. You may see engine oil dripping from the front of the engine, behind the main crankshaft pulley. The leak can come from the main cover gasket or the front crankshaft seal.
- Coolant Leaks: If your water pump bolts through the timing cover, a failed gasket can cause coolant to leak from the front of the engine. This will look like green, orange, or pink fluid.
- Grating or Slapping Noises: If the timing chain is very worn, it can slap against the inside of the cover, creating a noticeable noise from the front of the engine. This indicates you should replace the timing chain and gears immediately.
Check Your Oil and Coolant Levels
A significant oil or coolant leak is serious. Driving with low oil can cause major engine damage. Driving with low coolant can cause your engine to overheat. Always check your fluid levels if you suspect a leak.
Choosing the Right Aftermarket Timing Cover
When shopping for a new timing cover, you'll find several brands. They generally fall into three categories. For a daily driver Astro, a solid OE-quality replacement is your best bet.
Standard Replacement Brands
These brands offer cost-effective solutions that meet original factory specifications. They are a good choice for most repairs.

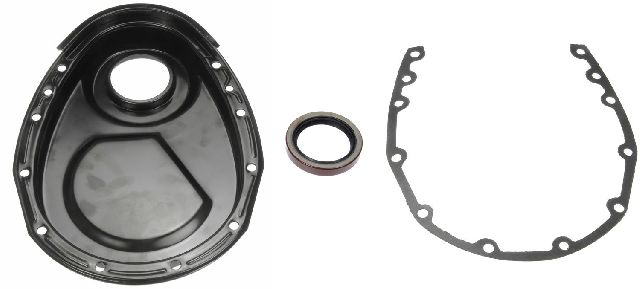

- Dorman: A very common aftermarket brand that makes direct replacement covers. However, some users have reported fitment issues, particularly where the cover meets the oil pan gasket, which can cause leaks if not installed carefully.

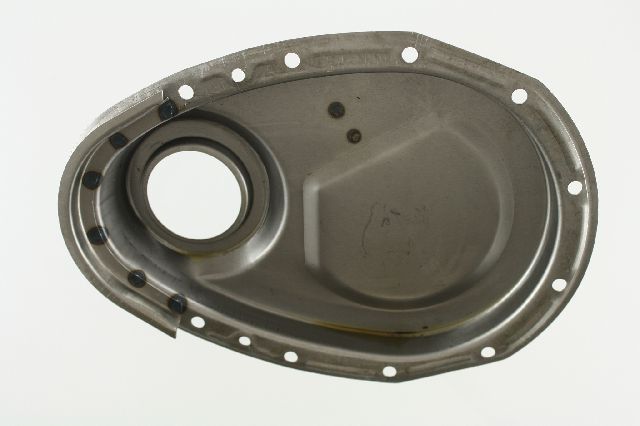

- ATP & Pioneer: These brands are known for providing standard replacement parts that offer a balance of quality and value.
Premium & OE-Quality Brands
If you want added peace of mind and potentially better materials or manufacturing, these brands are excellent choices.

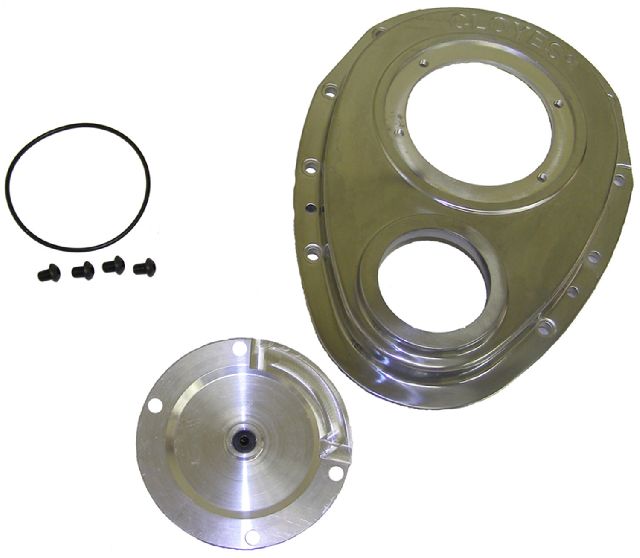

- Cloyes: Cloyes has a strong reputation for making high-quality timing system components. Many mechanics and experienced DIYers trust this brand for its reliability, making it a top choice for a durable repair.
Performance & Custom Brands
These brands are for owners looking to customize their engine's appearance. They often offer covers made from polished aluminum or chrome-plated steel.
- Holley, Proform, Spectre: These brands sell covers that add a custom look to your engine bay. They are functionally sound but are chosen more for aesthetics than for a stock repair.
Pro Tip: Replace More Than Just the Cover
The timing cover job requires a lot of labor. While you have the front of the engine apart, it is highly recommended to also replace the timing chain and gears, the front crankshaft seal, and the water pump. This will save you from having to do the same job again in the near future.
Aftermarket Timing Cover Cost for 1985-1994 Chevrolet Astro
| Part Category | Price Range |
|---|---|
| Standard Aftermarket Cover | $35 - $70 |
| Premium Aftermarket Cover (e.g., Cloyes) | $70 - $120 |
| Performance/Chrome Cover | $80 - $180+ |
| Gasket & Seal Kit (if not included) | $15 - $30 |
Frequently Asked Questions
Can I just replace the gasket and reuse my old timing cover?
Yes, if the original cover is not cracked, warped, or heavily corroded, you can often reuse it. You must clean the gasket surfaces thoroughly and install a new gasket and a new front crankshaft seal. However, if the cover is damaged or you want to avoid potential issues, a new cover is a good idea.
What are the most common mistakes when replacing a timing cover?
The most common mistake is improperly sealing the bottom of the timing cover where it meets the oil pan. This creates a new oil leak right after the repair. It is critical to clean the surfaces perfectly and use a small amount of RTV sealant at the corners as specified by the repair manual.
Do I need special tools for this job?
Yes. You will need a harmonic balancer puller and installer tool to safely remove and reinstall the main crankshaft pulley. Attempting to pry it off can damage the pulley, the timing cover, or the crankshaft itself.
Was there a recall on the Astro timing cover?
No, there have been no recalls issued by the NHTSA for the engine timing cover on the 1985-1994 Chevrolet Astro.
Technical Specifications
OEM Part Numbers: 12523080
Fits 4.3L (262ci) V6 engines. Early models used a multi-piece stamped steel cover, while later versions may have a cast aluminum design. The cover houses the front crankshaft seal and provides a mounting surface for the water pump.
