Ford E-150 Econoline A/C Clutch Cycle Switch Guide (1985-1994)
Is your 1985-1994 Econoline's A/C acting up? This switch could be the simple fix you need.
- A faulty A/C clutch cycle switch is a common, inexpensive cause for A/C problems on these vans.
- Symptoms include warm air, intermittent cooling, or rapid clicking from the A/C compressor.
- This is an easy DIY replacement that usually takes less than 15 minutes and doesn't require evacuating the A/C system.
- No specific recalls or TSBs exist for this part; failures are due to age and normal wear.
Is Your Van's A/C Acting Up?
If the air conditioning in your 1985-1994 Ford E-150 Econoline isn't blowing cold like it used to, the A/C clutch cycle switch is a common and inexpensive part to check. Before you assume the worst (like a bad compressor), understanding this simple switch can save you time and money. These vans use a straightforward A/C system, and this switch is a frequent failure point as they age.
Common Symptoms of a Failing Switch
A bad clutch cycle switch can cause several frustrating A/C problems. You might notice one or more of these signs:
- A/C Blows Warm Air: The most obvious sign is that your A/C simply doesn't cool. If the switch fails completely, it won't allow the compressor to turn on at all.
- Intermittent Cooling: The A/C might work for a few minutes and then stop, or cycle on and off randomly. This can be caused by a faulty switch giving incorrect pressure readings.
- Compressor Clutch Cycles Too Often (or Not at All): You may hear the A/C clutch under the hood clicking on and off every few seconds. Conversely, it might stay engaged constantly, which can also lead to problems.
Choosing the Right Aftermarket Part
For a vehicle of this age, aftermarket parts are the most common and affordable option. The original Ford (Motorcraft) parts can be difficult to find. Luckily, aftermarket brands offer direct-fit replacements. The two main brands you'll likely encounter are Four Seasons and Global Parts Distributors (GPD).
Brand Comparison
| Brand | Tier | General Quality Assessment |
|---|---|---|

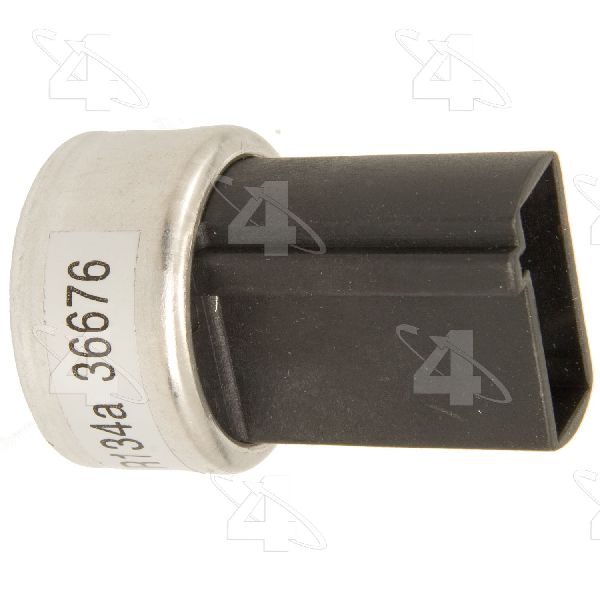

| Four Seasons | Economy | A long-standing brand in the aftermarket A/C world. Reviews are often mixed; some users report years of good service, while others criticize them for inconsistent quality control. It's a budget-friendly choice, but quality can be a gamble. |
| Global Parts (GPD) | Standard | GPD positions itself as a quality aftermarket supplier, stating their parts are designed to meet or exceed OEM specifications and are 100% leak-tested. They are generally considered a reliable choice for A/C components. |
Pro Tip: Since this part is inexpensive and critical for A/C operation, spending a few extra dollars on a brand with a better reputation like GPD may prevent you from having to do the job twice.
Known Issues, Recalls, and TSBs
For the 1985-1994 Ford E-150 Econoline, there are no specific recalls or Technical Service Bulletins (TSBs) issued by the NHTSA or Ford for the A/C clutch cycle switch. Any issues with this part are typically due to normal wear and tear over decades of use. The most common issue is simply the internal contacts wearing out, leading to the symptoms described above.
Frequently Asked Questions (FAQ)
Do I need to empty the A/C system to replace this switch?
Usually, no. The switch is designed to screw onto a Schrader valve, similar to the valve on your tires. This means you can typically unscrew the old switch and install the new one without losing refrigerant. Always wear safety glasses, and be prepared for a tiny, brief hiss of refrigerant as you swap it. If you are unsure, consult a repair manual for your specific year.
Where is the A/C clutch cycle switch located on my van?
On most 1985-1994 E-150s, you will find the switch mounted directly on the A/C accumulator (also called the receiver/drier). This is a metal can, usually silver or black, located on the passenger side of the engine bay near the firewall. The switch will have a two-wire electrical connector attached to it.
Is this a difficult part to replace myself?
No, this is a great DIY job for beginners. It typically requires only a basic wrench (like a 5/8" or adjustable) and can be done in under 15 minutes. You simply disconnect the electrical plug, unscrew the old switch, screw the new one on until it's snug (do not overtighten), and reconnect the plug.
Will a bad switch cause a Check Engine Light?
No. Your 1985-1994 E-150 was built before the widespread use of OBD-II diagnostic systems. It does not have the capability to set a trouble code for this type of A/C system fault.
Technical Specifications
OEM Part Numbers: F2UZ19V703 F2UZ19V703FA
Typically features a 2-pin (blade) male connector and screws onto a Schrader valve on the A/C accumulator.
