Fixing Idle Problems on Your 1985-1995 GMC G2500: The Idle Air Control Valve
If your G2500 van is stalling at stops or idling rough, the Idle Air Control (IAC) valve is a likely and inexpensive part to replace.
- A faulty IAC valve is a very common cause of stalling and rough idle on 1985-1995 GMC G2500 vans.
- Replacement is simple, inexpensive, and can usually be done in under an hour with basic tools.
- For best results, choose a quality aftermarket brand like Standard Ignition for this critical electronic part.
- Always disconnect the battery for a few minutes after installation to reset the computer's idle memory.
Is Your G2500's Idle Air Control Valve Failing?
A bad Idle Air Control (IAC) valve on your GMC G2500 will make itself known, especially at low speeds and when stopped. Because this part only controls idle, you likely won't notice issues at highway speeds. These vans are known for developing idle problems as they age, and the IAC valve is a common culprit. Look for these classic symptoms:
- Rough or Shaky Idle: The most common sign is an engine that shakes, shudders, or feels like it's about to stall when you're stopped in park or at a light.
- Stalling: The engine may die when you come to a stop, or when you put it in gear. It can also stall when electrical loads change, like when turning on the air conditioning.
- High or Surging Idle: Your engine might idle much faster than normal, or the RPMs might go up and down on their own. 🎬 Learn more about the common symptoms of a failing IAC.
- Check Engine Light: A failing IAC valve can trigger the Check Engine Light, though on these older OBD-I systems, the code might be a general one for an IAC fault.
Can I Just Clean the Old Valve?
Sometimes, carbon buildup can cause the IAC valve's pintle (a small, cone-shaped plunger) to stick. You can try removing the valve and cleaning it with throttle body cleaner. This can sometimes restore function, but it's often a temporary fix. If the electric motor inside the valve is weak or has failed, cleaning won't help and replacement is necessary.
🎬 Watch this guide on how to clean or replace your valve.Choosing the Right Aftermarket IAC Valve
For a vehicle from this generation, finding a new OEM part from GM is highly unlikely. The aftermarket is your primary source for a new IAC valve. Quality can vary, so it's important to choose wisely.
Brand Quality Tiers
- Premium Aftermarket (Standard Ignition): Standard Motor Products (SMP), sold under the Standard Ignition brand, is a well-regarded name in aftermarket electronics. They often use high-grade materials and perform extensive testing to ensure durability. While they are typically the most expensive aftermarket option, they are a trusted choice for a reliable, long-lasting repair.
- Standard Aftermarket (Holstein, URO Parts): Brands like Holstein and URO Parts offer a middle ground. They are direct-fit replacements that provide OE-like function. For many owners of older work vans, these brands provide a good balance of cost and acceptable quality for getting the vehicle back on the road.
- Economy (True Tech): Economy brands are the most budget-friendly. While they will fit and function, their internal components and materials may not be as robust as higher-priced options. This could lead to a shorter service life.
Pro Tip: Reset the Computer
After installing a new IAC valve, it's a good idea to reset the engine's computer. This allows it to "relearn" the new valve's position. You can do this by simply disconnecting the battery for about 5-10 minutes. When you reconnect it and start the engine, let it idle for several minutes to adjust.
🎬 See how to properly reset your new idle air control valve.Typical Costs for an IAC Valve Replacement
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket IAC Valve | $30 - $90 |
| Shop Labor | $75 - $150 |
| Total Estimated Cost (DIY) | $30 - $90 |
| Total Estimated Cost (Shop) | $105 - $240 |
Frequently Asked Questions
Where is the IAC valve located on my G2500?
The Idle Air Control valve is located on the side of the throttle body assembly, which sits on top of the engine. You will need to remove the engine cover (doghouse) inside the van to access it. It is typically held in place by two small screws and has a single electrical connector.
Is replacing the IAC valve a difficult job?
No, this is a very DIY-friendly repair. For most 1985-1995 G2500 vans, the job requires only basic hand tools like a screwdriver or small socket set. The entire process usually takes less than an hour.
My van still idles poorly after replacing the IAC valve. What else could it be?
While the IAC is a common cause, other issues can create similar symptoms. These include vacuum leaks (cracked hoses), a faulty Throttle Position Sensor (TPS), a clogged fuel filter, a bad coolant temperature sensor, or ignition system problems (distributor cap, rotor, plugs, wires).
Are there any recalls for this part?
There are no specific recalls on the NHTSA website for the Idle Air Control valve on the 1985-1995 GMC G2500. Any safety recalls for a vehicle of this age would have been issued many years ago.
Helpful Videos

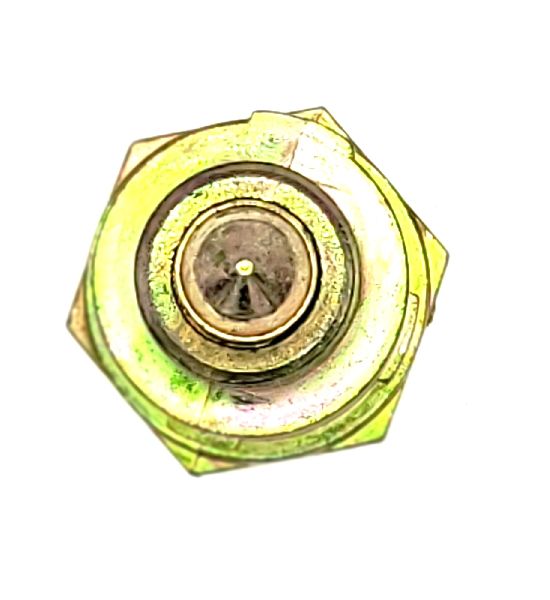

Technical Specifications
OEM Part Numbers: 17111288
2-Terminal Connector, Stepper Motor Actuator
