Isuzu Pickup Brake Light Switch Guide for 1985-1995 Models
Solving brake light issues on your Isuzu Pickup starts with this essential, easy-to-replace switch.
- A faulty brake light switch is a primary cause for brake light failure on this truck.
- This is a critical safety repair; do not drive if your brake lights are inoperative.
- Replacement is a simple, low-cost DIY job that takes less than 30 minutes.
- High-quality aftermarket brands like Beck Arnley or Standard Ignition are reliable and affordable choices.
Signs of a Failing Brake Light Switch
A bad brake light switch on your Isuzu Pickup will usually show clear symptoms. The most common problem is that your brake lights won't turn on at all when you press the pedal. You might also notice the opposite problem: the brake lights stay on all the time, which can drain your battery. Other signs can include brake lights that flicker or only work sometimes. Before you assume the switch is bad, always check the brake light bulbs and the fuse first, as these 🎬 See how to test your brake pedal sensor and switch are also common failure points.
Safety First: A Critical Part
Driving without working brake lights is extremely dangerous and illegal. It significantly increases your risk of being rear-ended. If you confirm your brake lights are not working, you should not drive the vehicle until it is repaired.
Choosing the Right Aftermarket Switch
For a vehicle like the 1985-1995 Isuzu Pickup, you don't need to hunt down a rare, expensive original dealer part. The aftermarket offers several reliable options that meet or exceed the original quality for a fraction of the price. The key is to choose a reputable brand.

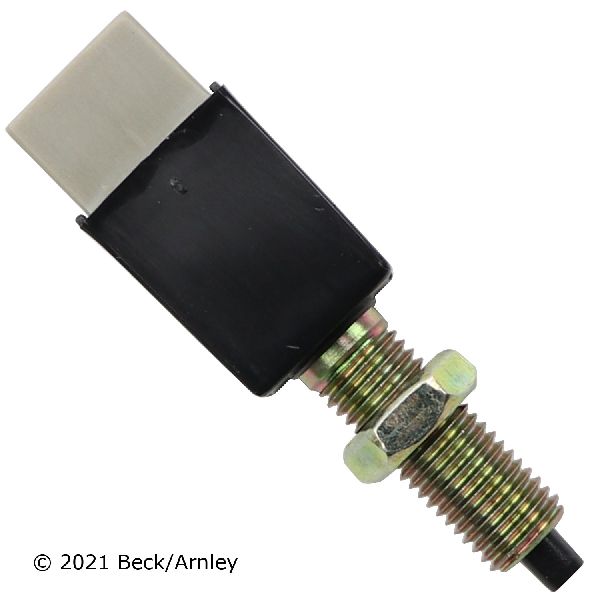

- Higher-Quality Tier (Recommended): Brands like Beck Arnley and Standard Ignition (Standard Motor Products) have a strong reputation. Beck Arnley is known for sourcing parts directly from original equipment manufacturers for Japanese vehicles, so you are often getting an OEM-quality part in a different box. These are excellent choices for reliability.

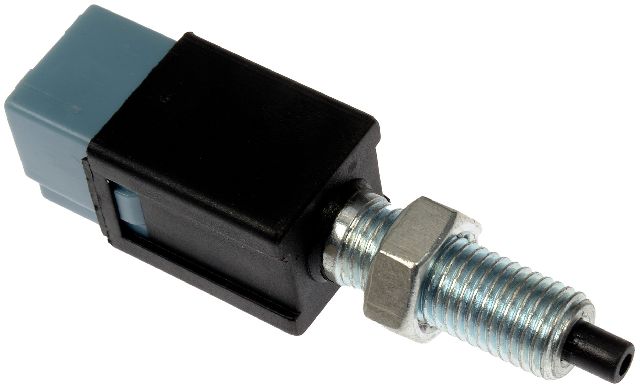

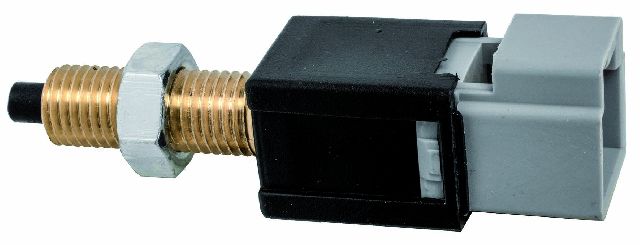

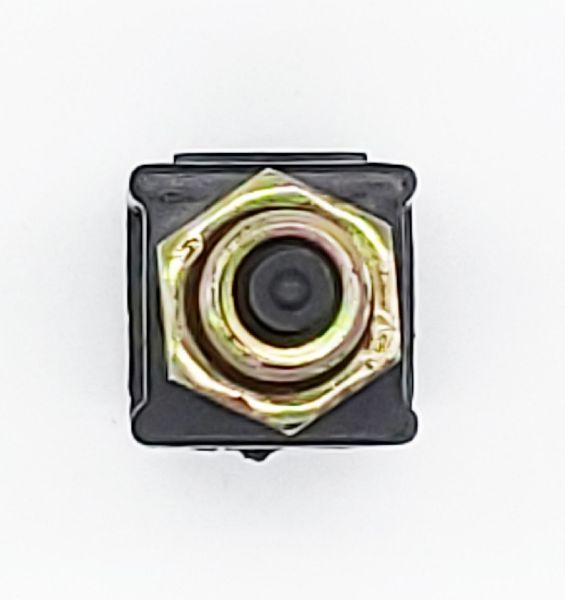

- Standard/Value Tier: Brands like Dorman, Facet, Holstein, and Replacement offer a more budget-friendly price. They are a perfectly fine choice for this simple repair, though some mechanics have noted that brands like Dorman may not have the same long-term durability as higher-tier options in every case.
- Specialty Brands: Rostra Powertrain is a known brand, but they often focus on more complex electronic components. Their switch will be reliable if available for your truck.
Pro Tip: Given the low cost of even the higher-quality aftermarket brands, spending a few extra dollars for a Beck Arnley or Standard Ignition switch is a good investment for long-term peace of mind.
Typical Replacement Costs
Replacing the brake light switch is one of the most affordable repairs you can make. The part itself is inexpensive, and the labor is minimal.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $6 - $30 |
| Shop Labor (DIY Recommended) | $50 - $100 |
| Total Professional Repair | $56 - $130 |
Frequently Asked Questions (FAQ)
Where is the brake light switch located on my Isuzu Pickup?
The brake light switch is located in the driver's side footwell, mounted on a bracket attached to the brake pedal assembly. You will need to look up under the dashboard at the top of the brake pedal arm 🎬 Watch this video to see exactly how to swap the switch to see it. It's a small, plunger-style switch with a wiring connector attached.
Is replacing the brake light switch a difficult job?
No, this is a very easy job that most owners can do themselves in under 30 minutes with basic hand tools. The process 🎬 Watch: A quick walkthrough of the replacement process involves unplugging the electrical connector, loosening a lock nut, and unscrewing the old switch. Installing the new one is the reverse of removal. You may need to make a small adjustment to the new switch's position to ensure the brake lights come on as soon as you touch the pedal.
Can a bad brake light switch cause my cruise control to stop working?
Yes. The brake light switch is responsible for deactivating the cruise control when you press the brake pedal. If the switch fails, the cruise control system may not engage at all, or it might not disengage when you brake, which is a safety concern.
Were there any recalls for the brake light switch on the 1985-1995 Isuzu Pickup?
No. While Isuzu has issued recalls for brake light switches on much newer commercial trucks, searches of the NHTSA database show no recalls or specific Technical Service Bulletins (TSBs) for this issue on the 1985-1995 Isuzu Pickup models.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8-94411-365-0 8-94369-309-0
Typically a 2-terminal, plunger-activated switch mounted on the brake pedal bracket. Designs may vary slightly by year, so visual confirmation is recommended.
