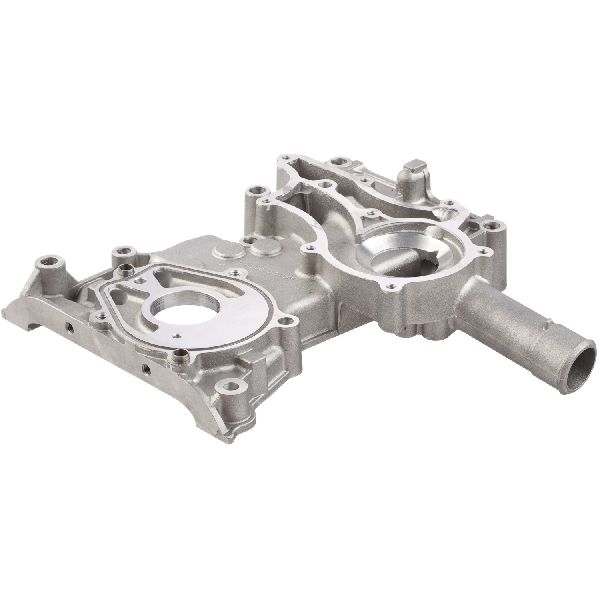

Engine Timing Cover for 1985-1995 Toyota Pickup: A Guide to the 22R-E's Most Common Failure
That rattling noise from the front of your 2.4L engine is a warning sign you can't afford to ignore.
- The root cause of timing cover failure is typically a broken plastic timing chain guide, not a defect in the cover itself.
- When replacing the cover, you MUST also replace the timing chain, tensioner, and guides to fix the underlying problem.
- Upgrading to aftermarket timing chain guides with a metal backing is the best way to prevent future failures.
- If you see milky, frothy oil, stop driving immediately to prevent catastrophic engine damage.
The Real Problem: Timing Chain Guide Failure
The most common reason to replace the timing cover on a 1985-1995 Toyota Pickup isn't because the cover itself fails, but because of a design flaw with the timing chain guides. These trucks use a single-row timing chain with plastic guides. Over many miles, the chain stretches and begins to slap against the driver's side plastic guide, eventually causing it to break.
Once the guide is broken, the loose chain slaps directly against the inside of the aluminum timing cover. This creates a distinct rattling noise. If ignored, the chain will physically wear a groove into the cover and cut through into an internal coolant passage. This allows coolant to pour directly into the engine oil, creating a milky, destructive fluid that will quickly destroy engine bearings and lead to complete engine failure.
Symptoms of a Failing Timing Cover
- Engine Rattle (The "Death Rattle"): The most common symptom is a rattling or chattering sound from the front of the engine. It is often most noticeable on a cold start or when you let off the gas after revving the engine. This is the sound of the timing chain hitting what's left of the guide or the cover itself.
- Milky Engine Oil: If you check your oil dipstick or look under the oil cap and see a frothy, milky, or chocolate-milk-like substance, it's a critical sign that coolant is mixing with your oil. The truck should not be driven in this condition.
- External Leaks: While the internal leak is the most notorious failure, the cover can also develop external oil or coolant leaks from old gaskets or a bad front crankshaft seal.
Choosing the Right Aftermarket Part
This is one area where aftermarket parts can be a significant upgrade over the original factory design, with a few caveats.
Pro Tip: Replace Everything at Once
Replacing the timing cover is a very labor-intensive job. Since the root cause is the timing chain system, you should always replace the timing chain, sprockets, tensioner, and guides when you replace the cover. Many aftermarket kits include these parts. The most important upgrade is a set of timing guides with steel backing, which prevents the guide from breaking and starting this whole process over again.
Brand Quality Assessment
When choosing a new aftermarket timing cover, the quality of the casting is important. Look for a part that is clean, free of casting flash, and has precisely machined surfaces.
- Dorman: Dorman is a widely available brand. However, reviews are mixed. Some users report their covers fit perfectly, while others have experienced issues with incorrect shapes causing oil pan leaks or improperly sized ports on other vehicle applications. If you choose a Dorman cover, inspect it carefully before installation.
- ATP and Pioneer Cable: Both ATP and Pioneer are established aftermarket brands with a wide range of parts. Specific reviews for their 22R-E timing covers are scarce, making a direct quality assessment difficult. However, some forum users anecdotally refer to Pioneer parts as being good quality.
Ultimately, the brand of the cover is less critical than ensuring you replace the entire timing system with upgraded metal-backed guides. Even a high-quality cover will be destroyed if the original timing chain problem isn't fixed.
Important Installation Note
Some aftermarket covers may sit slightly higher than the deck of the engine block. It is critical to check this before installing the cylinder head. If the cover is higher, it can prevent the head gasket from sealing properly, leading to premature failure. The surface must be perfectly flat across the block and the top of the timing cover.
Frequently Asked Questions (FAQ)
What is the "death rattle" on a 22R-E?
The "death rattle" is the distinct chattering or rattling noise coming from the front of the engine, caused by a loose timing chain slapping against a broken guide or the inside of the timing cover. It's an early warning sign of the most common and critical issue for these engines.
Do I have to replace the timing chain if I replace the cover?
Yes, absolutely. The reason the cover needs replacement is almost always due to damage caused by a stretched chain and broken guides. Not replacing the chain, guides, and tensioner means the new cover will quickly be damaged in the same way. It is highly recommended to buy a complete timing kit with metal-backed guides.
Is replacing a 22R-E timing cover a DIY job?
This is an advanced, labor-intensive job. It requires draining the oil and coolant, and removing the radiator, belts, pulleys, water pump, and oil pan. While it is feasible for an experienced home mechanic with the right tools, it is a difficult task that can take a full day or more.
Are there any recalls for this issue?
No. Despite being a very well-known problem, there were no official recalls or Technical Service Bulletins (TSBs) issued by Toyota for the timing chain guides or timing cover on the 1985-1995 Pickups.
Technical Specifications
OEM Part Numbers: 11302-35010
Fits 1985-1995 Toyota Pickups with the 2.4L 22R, 22R-E, or 22R-TE engine using a single-row timing chain.
