Guide to 1985-1996 Buick LeSabre Automatic Transmission Control Solenoids
Experiencing harsh shifts, shuddering, or a check engine light? Your LeSabre's transmission solenoid could be the cause.
- Proper diagnosis is crucial to identify the specific failed solenoid (Shift Solenoid vs. TCC Solenoid).
- Replacement is a very labor-intensive job on this vehicle, and labor will be the most expensive part of the repair.
- Due to the high labor cost, using a quality aftermarket brand like Standard Ignition or ATP is a wise investment.
- Always replace the transmission fluid, filter, and side cover gasket at the same time as the solenoid.
Understanding Your LeSabre's Transmission Solenoids
The automatic transmissions in the 1985-1996 Buick LeSabre, primarily the 4T60 and the electronically controlled 4T60-E (used from about 1991 onward), rely on a set of solenoids to function correctly. When you see a part listed as an "Automatic Transmission Control Solenoid," it usually refers to one of two types:
- Shift Solenoids: Typically working in pairs (Solenoid A and Solenoid B), these control the shifts between gears 1-2, 2-3, and 3-4. A failure here often results in getting stuck in a gear or experiencing very harsh, delayed shifts.
- Torque Converter Clutch (TCC) Solenoid: This solenoid locks the torque converter at cruising speeds. A failure often feels like a shudder or vibration on the highway and can hurt your gas mileage.
Because these parts have different jobs, it's critical to diagnose the problem correctly before buying a replacement. A diagnostic scan tool that can read transmission-specific codes is the best way to identify which solenoid has failed.
🎬 Watch: How to test and diagnose common GM solenoids.Common Symptoms of a Bad Transmission Solenoid
A failing solenoid can cause a range of problems. Pay attention to how your LeSabre is behaving to help pinpoint the issue.
- Harsh or Delayed Shifting: The car may slam into gear or hesitate long before shifting. This is a classic sign of a failing shift solenoid.
- Transmission Shudder: A vibration that feels like you're driving over rumble strips, especially at highway speeds between 40-55 mph, often points to a TCC solenoid issue. Lightly tapping your brake pedal may cause the shudder to stop temporarily.
- Stuck in Gear: The transmission may go into a "limp mode" to protect itself, refusing to shift out of 2nd or 3rd gear.

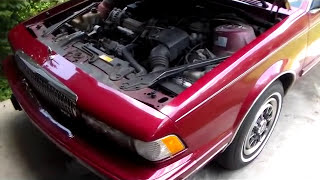

- Engine Stalling at Stops: If the TCC solenoid gets stuck in the 'on' position, it can cause the engine to stall when you come to a stop, as if you were driving a manual car and didn't press the clutch. 🎬 Watch: How to replace a TCC solenoid that causes stalling.
- Check Engine Light: A failed solenoid will almost always trigger a Check Engine Light and store a diagnostic trouble code (DTC) in the vehicle's computer.
Installation is a Major Job
On these front-wheel-drive LeSabres, the transmission solenoids are located inside the transmission side cover. Replacing them is not a simple task. It requires supporting the engine and lowering a portion of the vehicle's subframe to gain access. This is a labor-intensive job best left to an experienced mechanic unless you have advanced DIY skills and the proper tools.
Choosing the Right Aftermarket Solenoid
For a vehicle of this age, aftermarket parts are the most common and cost-effective choice. OEM ACDelco parts may still be found but are often unnecessary unless specified by your mechanic. Here is an honest assessment of the available brands:
- Standard Ignition (Standard Motor Products): Often considered a top-tier aftermarket brand. Their parts are known for quality and reliability, making them a safe bet for a difficult-to-access component like a transmission solenoid.
- ATP (Automatic Transmission Parts): ATP specializes in transmission components and markets its parts as meeting OE specifications for fit and function. They are a solid, reliable choice for daily driver repairs.
- Pioneer Cable: While more known for cables and hard parts, Pioneer offers transmission components that are generally seen as budget-friendly, stock-level replacements. For a critical component that requires extensive labor to replace, investing in a brand with a stronger reputation in electronics like Standard or ATP may provide more peace of mind.
Pro Tip: Since the transmission must be opened for this repair, it is the perfect time to also replace the transmission fluid, filter, and the side cover gasket. Using fresh fluid and a new filter is cheap insurance for your transmission's health.
Cost of Replacing a Transmission Solenoid
The part itself is not expensive, but the labor is. The majority of the repair bill will be for the mechanic's time.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Solenoid | $24 - $60 |
| New OEM Solenoid | $50 - $100 |
| Shop Labor | $500 - $1200 |
| Total Professional Repair | $524 - $1260 |
Frequently Asked Questions
How many solenoids are in my LeSabre's transmission?
The 4T60-E transmission uses multiple solenoids. This includes two shift solenoids (A & B), a TCC solenoid, and sometimes a pressure control solenoid (EPC). It's important to diagnose the specific failed solenoid rather than replacing them all blindly.
Can I just clean a transmission solenoid?
While some issues can be caused by debris, cleaning is not a guaranteed fix. Given the immense amount of labor required to access the solenoids in a LeSabre, it is highly recommended to install a new, quality part rather than risk having to do the job twice.
Is a hard 1-2 shift always a bad solenoid?
Not always. On some GM vehicles, certain trouble codes can cause the computer to command maximum line pressure as a protective measure, resulting in a very harsh shift. 🎬 See this video for a common Buick hard shift fix. This is a symptom, but the root cause could be the solenoid, the valve body, or related wiring. A proper diagnosis is key.
Are there any recalls for this problem?
No, there are no specific NHTSA recalls for transmission solenoid failure on the 1985-1996 Buick LeSabre. Any repairs for this issue will be at the owner's expense.
Helpful Videos

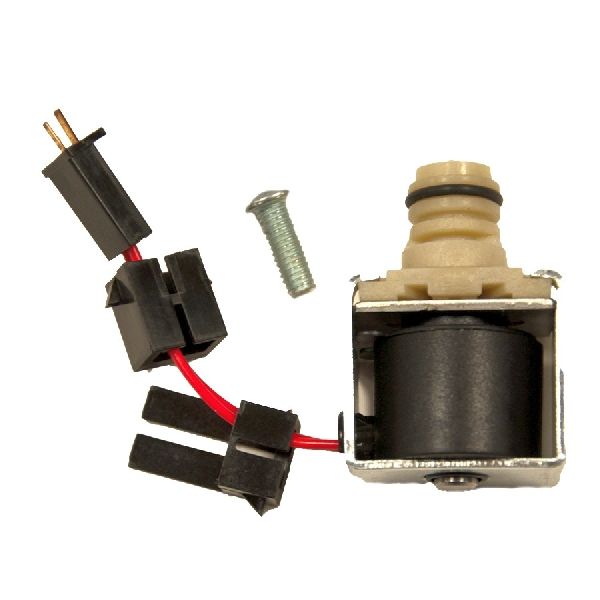

Technical Specifications
OEM Part Numbers: 26064802 26051059 26043249 24230298
Fits GM 4T60 and 4T60-E automatic transmissions. Solenoids are electro-hydraulic valves located inside the transmission side cover or valve body.
