Chevrolet Astro Horn Replacement and Troubleshooting Guide (1985-1997)
A straightforward guide to diagnosing and replacing the horn on your 1985-1997 Chevrolet Astro van.
- Always check the fuse and relay first to avoid buying a horn you don't need.
- The Chevrolet Astro uses a high-note and low-note horn pair; a weak sound often means one has failed.
- Replacement is a simple DIY task, with the horns located behind the grille and held by a single bolt.
- Corrosion on wiring or a bad ground is a common point of failure on these vans; clean contacts during replacement.
Is Your Astro's Horn Silent?
A horn that doesn't work is a common issue on older vehicles like the 1985-1997 Chevrolet Astro. The most frequent causes are simple electrical problems. Before you decide to replace the horn itself, it's wise to check a few other components. Common points of failure include a blown fuse, a faulty horn relay, corroded wiring, or a bad ground connection. Sometimes, the issue is in the steering column's horn contact pad, which can wear out over time.
🎬 See how to safely remove the steering column horn pad.Safety First: Check Fuses and Relays
Always check the horn fuse and relay before buying a new horn. These are inexpensive and easy to replace. A simple check can save you time and money by correctly identifying the problem. You can often swap the horn relay with an identical one from a non-critical system (like the rear defogger) to quickly test if the relay is the issue.
Choosing the Right Aftermarket Horn
When it's confirmed that the horn assembly itself has failed, you have a couple of good aftermarket options. It's important to know that many Astro vans were equipped with two horns: a high-note and a low-note, which work together to create a standard harmonic tone. When one fails, it often results in a weak or "tinny" sound. For a full-volume replacement, you may need to replace both.
- Standard Ignition (SMP): A well-known and respected brand in the automotive aftermarket, Standard Ignition offers direct-fit replacement horns. These parts are engineered to meet or exceed original equipment (OE) specifications for fit and performance. They are a reliable choice for a durable, long-lasting repair.
- Replacement: This is a budget-friendly option that provides a direct-fit part to get your horn working again. While it will restore the function, the tone or longevity might differ from a premium brand or the original GM part. It's a practical choice if cost is the primary concern.
Estimated Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Horn | $36.29 - $57.52 |
| New OEM GM Horn | $70 - $120 |
| Used OEM Horn (Junkyard) | $15 - $40 |
| Shop Labor | $100 - $150 |
Pro Tip: Easy DIY Replacement
Replacing the horn on an Astro is a great DIY job for beginners. The horns are usually mounted with a single bolt behind the grille. Access often requires removing the grille, which is held on by a few screws. Once accessed, you simply unplug the electrical connector, unbolt the old horn, and install the new one. The entire process typically takes less than an hour with basic hand tools.

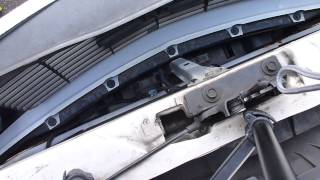

🎬 Follow this step-by-step video to replace your Astro's horn.Frequently Asked Questions
Where is the horn located on a 1985-1997 Chevy Astro?
The horn or horns are located at the front of the vehicle, mounted on the radiator support, directly behind the front grille. You will likely need to remove the grille to access them.
Why does my new horn sound weak or tinny?
Your Astro likely has two horns, a high-note and a low-note. If you only replace one, or if one of the two has failed, the sound will be off. For the correct, full sound, you should ensure both horns are working or replace them as a pair.
Is it hard to replace the horn myself?
No, this is considered an easy repair. It involves removing the front grille, unplugging an electrical connector, and removing one bolt. Anyone with basic tools like a socket set and screwdriver can typically complete the job in under an hour.
My horn still doesn't work after replacing it. What now?
If a new horn doesn't solve the problem, the issue lies elsewhere in the circuit. The most common culprits are the horn relay, the fuse, the horn button/contact in the steering wheel, or a bad ground wire. Use a multimeter to test for power at the horn's electrical connector when a helper presses the horn button. If there's no power, you'll need to trace the circuit back.
Were there any recalls for the horn on the Chevrolet Astro?
Based on searches of the National Highway Traffic Safety Administration (NHTSA) database, there are no specific safety recalls for the horn on the 1985-1997 Chevrolet Astro.
Helpful Videos
Technical Specifications
OEM Part Numbers: 23343360 84594588
Voltage: 12V. Terminal Type: 2-Blade Male. Mounting: Single bolt bracket. Note: Most applications use a high-note and a low-note horn.
