GMC C3500 Wiper Motor Guide: 1985-2000 Replacement Insights
Before you replace the wiper motor on your GMC C3500, make sure you're fixing the right part—especially for 1988-2000 models.
- For 1988-2000 models, diagnose the inexpensive wiper pulse board before replacing the entire motor.
- Symptoms like 'high-speed only' or incorrect parking are strong indicators of a bad pulse board, not a bad motor.
- The 1985-1987 'Square Body' trucks have a different, self-contained motor design.
- The job is DIY-friendly, but requires removing the cowl panel to access the motor assembly.
Is It The Wiper Motor or the Pulse Board? (1988-2000 Models)
For the 1988-2000 GMT400 generation of trucks, the most common cause of wiper problems is not the motor itself. It is usually a small, inexpensive circuit board attached to the motor housing, known as the wiper pulse board or delay module. The electric motors in these trucks are known to be very durable. Before spending money on a full motor assembly, it is critical to check this board first.
Diagnose First, Replace Second
Symptoms like wipers only working on high speed, not parking in the correct position, stopping randomly, or not working at all are classic signs of a failed pulse board on 1988-2000 models. The board can fail from cracked solder joints over time. You can often fix this by either re-soldering the connections or by replacing the board, which is a simple job that only requires a T20 Torx driver.
Identifying Your C3500 Wiper Motor Generation
The 1985-2000 model years cover two distinct designs:
- 1985-1987 (Square Body): These trucks use a self-contained wiper motor assembly. The motor itself contains the components for speed and parking. Failure here typically requires replacing the entire motor unit.
- 1988-2000 (GMT400): These trucks use the motor and external pulse board combination. As mentioned, the board is the most frequent issue. If the motor itself fails (e.g., making grinding noises or seizing), the whole unit needs replacement.
Symptoms of a Failing Wiper Motor Assembly
While the pulse board is a common issue for later models, the motor or related parts can still fail. Here’s what to look for:
- Slow or Erratic Wipers: Wipers that move slower than usual or change speed on their own can point to a worn-out motor or binding linkage.
- Grinding or Humming Noises: A humming sound without any movement suggests the motor is getting power but is seized internally. Grinding noises point to stripped or damaged gears inside the motor.
- Wipers Don't Move at All: If you've ruled out the pulse board (on 1988-2000 models) and the fuse, the motor has likely burned out.
- Wipers Won't Park: If wipers stop in the middle of the windshield when you turn them off, it's often a pulse board issue on GMT400 trucks, but can also be a problem with the parking mechanism in older Square Body motors.
Choosing the Right Aftermarket Wiper Motor
When shopping for a new aftermarket wiper motor, you'll find several options. For a workhorse like the C3500, reliability is key. OEM parts offer a guaranteed fit but come at a higher cost. Aftermarket parts provide good value, and for a vehicle of this age, they are often the most practical choice.
Here's a look at the available brands:
- Cardone: One of the largest names in the aftermarket, offering both new and remanufactured parts. They are a common choice for repairs, balancing cost and quality. Some forum users have noted that Cardone and other brands like WAI may sometimes be the same part in a different box.

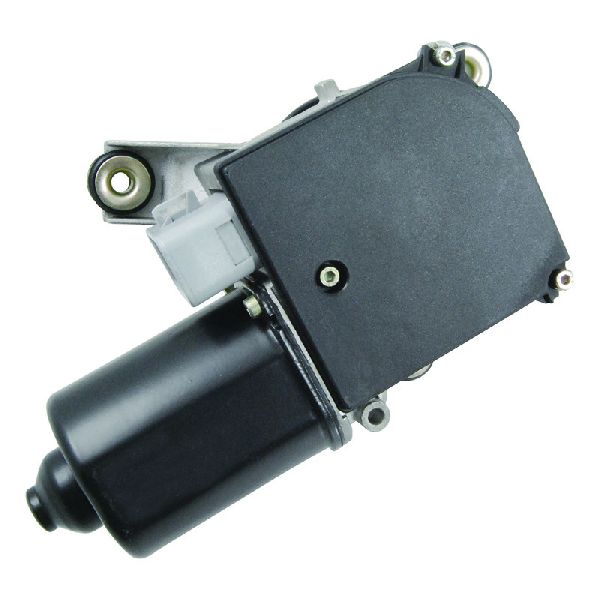

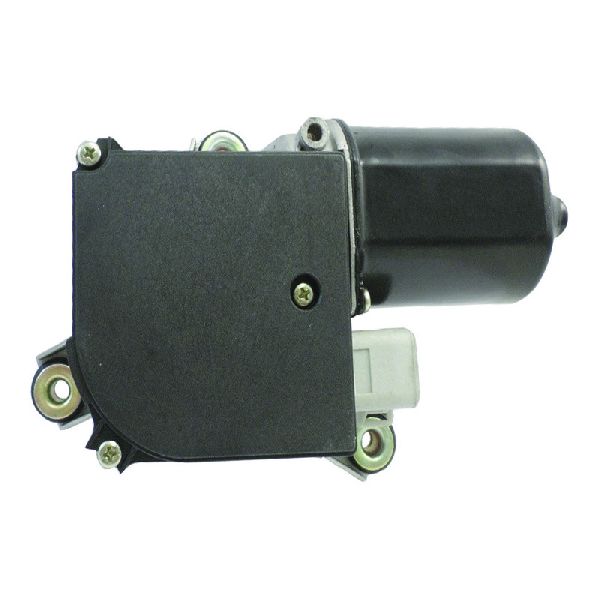

- WAI Global: A large manufacturer of aftermarket electrical components. They are a widely available option, though some user reviews are mixed.
- Replacement: This brand typically offers direct, OE-style fitment at a budget-friendly price point. These parts are designed to get the job done without the higher cost of premium brands.
Pro Tip for 1988-1991 Owners
If you have a 1988, 1989, 1990, or 1991 C3500, the wiper motor used in the 1992-1998 models is a direct, bolt-on upgrade. This later-style motor is often easier to find and may be more reliable.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $73.97 - $157.37 |
| Remanufactured Aftermarket | $50 - $120 |
| New OEM | $200 - $350+ |
| Shop Labor | $100 - $200 |
Frequently Asked Questions (FAQ)
Do I have to replace the whole motor if only the delay is broken?
For 1988-2000 models, no. If your delay settings or wipers won't park correctly, the problem is almost certainly the separate pulse board module. This is a much cheaper and easier part to replace than the entire motor.
Is replacing the wiper motor a difficult DIY job?
Replacing the entire motor is a moderately difficult job that most DIYers with basic tools can handle. It takes about 1-2 hours. The process involves removing the wiper arms, the plastic cowl panel, and then unbolting the motor and its linkage arms. Replacing just the pulse board on 1988-2000 models is very easy and takes less than 15 minutes.
What's the difference between a bad motor and a bad wiper transmission (linkage)?
If you can hear the motor running but the wipers move erratically or not at all, the problem is likely the linkage (transmission). The plastic bushings on the linkage arms can wear out, causing them to pop off the motor. If you hear nothing, or the motor just hums, the motor itself is the likely culprit.
Are there any recalls on the 1985-2000 C3500 wiper motor?
Searches of the NHTSA database did not show any active recalls specifically for the wiper motor on the 1985-2000 GMC C3500. One source mentioned a past GM recall campaign for the wiper system on 1988-1998 trucks, likely related to the pulse board, but no specific recall number was found.
Technical Specifications
Vehicle fitment is split into two generations: 1985-1987 (Square Body) and 1988-2000 (GMT400). The GMT400 platform uses a motor with a separate, externally mounted pulse control board. Ensure you are ordering the correct part for your specific year.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
