GMC K2500 Wiper Motor Guide: 1985-2000 Models
Having trouble with your K2500's wipers? This guide explains common failures and how to choose the right replacement motor.
- For 1988-2000 models, the electronic pulse board is the most common failure point, causing most wiper issues.
- Verify your truck's exact year before ordering; 1987 (Square Body) and 1988 (GMT400) use completely different motors.
- Replacing the entire motor assembly is often a better long-term solution than just replacing the pulse board.
- This is a DIY-friendly repair that can be completed in about an hour with basic tools.
Understanding Wiper Motor Problems in Your K2500
If you own a 1985-2000 GMC K2500, you know it's a tough truck. But even the toughest trucks have common issues. The windshield wiper system is one of them. Problems can range from simply annoying to downright dangerous in a sudden downpour. Most issues trace back to the wiper motor or its related components.
Generation-Specific Failures: A Tale of Two Trucks
The 1985-2000 model years cover two different truck designs, and they have different wiper systems. It is critical to identify your truck's year before buying parts.
- 1985-1987 ("Square Body"): These trucks use a more traditional wiper motor. Failures are typically straightforward, with the motor either wearing out and slowing down, or failing completely. Problems with the switch or linkage can also occur but are less common than motor failure.
- 1988-2000 (GMT400): These trucks introduced a new wiper motor with an external electronic circuit board, often called a 'pulse board' or 'wiper motor module'. This board is the most common point of failure. Bad solder joints on the board can crack over time, causing intermittent operation, loss of certain speeds, or failure to park correctly. Water getting past the cover's seal can also short out the board.
The Notorious Wiper Pulse Board (1988-2000)

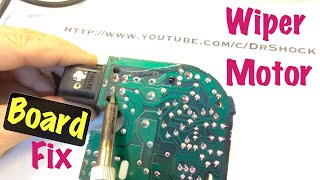

For GMT400 trucks, the vast majority of wiper problems are caused by the pulse board, not the motor itself. Symptoms like wipers that only work on high speed, won't turn off, or stop in the 🎬 Learn how to repair a pulse board that won't shut off. middle of the windshield almost always point to a bad board. While you can sometimes fix the board by re-soldering the connections, 🎬 See how to easily fix common wiper motor board issues. most owners find it easier and more reliable to replace the entire motor assembly, which includes a new board.
Choosing the Right Aftermarket Wiper Motor
Since these trucks are older, aftermarket parts are a popular and practical choice. Here’s an honest look at the available brands.
- Cardone: Cardone offers both new and remanufactured wiper motors. They are a widely available and affordable option. Forum discussions suggest their quality can be inconsistent; some users have good experiences, while others report early failures. A remanufactured Cardone motor is often a budget-friendly choice.
- WAI Global: WAI Global specializes in automotive electrical parts. Their new wiper motors are generally considered a decent quality replacement. Some reports suggest that WAI and Cardone parts may sometimes be sourced from the same manufacturer, so quality could be similar.
- Replacement: This is often a generic or 'white-box' brand. These parts are built to meet original specifications and offer a low-cost alternative. They are a good option if budget is your primary concern, but long-term durability may not match more established brands.
Pro Tip: When replacing the wiper motor on a GMT400 (1988-2000) truck, it's a good idea to also inspect the wiper linkage bushings. Worn bushings can put extra strain on the new motor, leading to premature failure.
Cost of Replacing a GMC K2500 Wiper Motor
The cost can vary depending on the part quality and whether you do the work yourself. The job is straightforward for a DIY mechanic and requires basic tools.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Wiper Motor | $74 - $158 |
| Remanufactured Wiper Motor | $50 - $120 |
| Shop Labor | $100 - $200 |
| Total Professional Replacement | $174 - $358 |
Frequently Asked Questions
Why do my wipers stop in the middle of the windshield?
This is a classic symptom of a failed 'park' function, especially on 1988-2000 models. The pulse board inside the wiper motor assembly is responsible for cutting power at the right moment for the wipers to settle at the bottom. When it fails, they stop wherever they are when you turn the switch off. Replacing the motor assembly (which includes a new board) is the most reliable fix.
Can I just replace the pulse board instead of the whole motor?
Yes, you can buy the pulse board separately for 1988-2000 models. This can be a cheaper, temporary fix. However, if your motor is old, it may fail soon after, requiring you to do the job again. Many owners prefer to replace the entire assembly for peace of mind, as it includes a new motor, a new board, and fresh seals.
Were there any recalls for the wiper motor on these trucks?
While there were widespread GM wiper motor recalls and investigations for other models and years, no specific, large-scale recall directly targets the entire 1985-2000 K2500 range. Some sources mention a recall for the pulse board on 1988-1998 trucks, but finding official documentation on this for a specific VIN is key. Always check with an official GM dealer or the NHTSA website with your VIN for any open recalls.
Is the replacement difficult? What tools do I need?
For most DIYers, this is a relatively easy job. You will need basic hand tools like a socket set and screwdrivers. For 1988-2000 models, you'll specifically need a T20 Torx bit to remove the pulse board cover. The main steps involve removing the wiper arms, the cowl screen, and then unbolting the motor. The entire process can usually be done in about an hour.

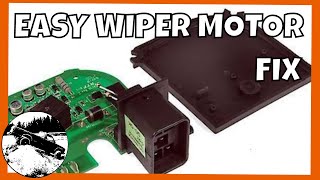

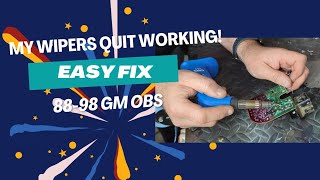

🎬 Watch this step-by-step DIY guide for 1988-1998 wiper repairs.Helpful Videos
Technical Specifications
OEM Part Numbers: 12463090 25948436 19150910
The key difference is between the pre-1988 'Square Body' motor and the 1988-2000 GMT400 motor, which includes an external, serviceable pulse control module.
