BMW 535i Engine Oil Pressure Switch: A Complete Guide (1985-2011)
Understanding the oil pressure warning on your 535i and how to choose the right replacement switch.
- An oil pressure warning is critical; stop the car safely and investigate immediately.
- A common failure is oil leaking *through* the sensor into the wiring, which can damage the engine computer (DME). Check the connector for oil.
- Replacement is an easy and cheap DIY job. The switch is located on the oil filter housing.
- For this part, it is highly recommended to choose a quality OE-level brand like Hella, Vemo, or Rein over budget options.
Is Your BMW 535i Displaying an Oil Pressure Warning?
A red oil pressure light on the dashboard of your 1985-2011 BMW 535i is one of the most serious warnings you can see. It means the engine's internal components may not be getting the lubrication they need. While the cause could be a serious internal engine problem, it is often caused by a simple, inexpensive, and failing engine oil pressure switch.
A Common and Serious Failure Point
A well-documented issue on many BMW engines, including those in the 535i, is for the oil pressure switch to leak oil internally. This leak doesn't just make a mess; oil can travel through the electrical pins of the sensor and up the wiring harness, a process called "wicking." Over time, this oil can reach and destroy the main engine computer (DME), turning a sub-$50 repair into one costing thousands. If you find oil inside the electrical connector of your switch, replacement is urgent.
Symptoms of a Failing Oil Pressure Switch
Watch for these signs that your switch is the problem:
- Red Oil Pressure Light: The light may flicker or stay on constantly, even if you have checked the oil level and it is full.
- Inability to Check Oil Level: On E60 535i models (2008-2010), a bad switch can cause the electronic oil level check to fail or abort.
- Visible Oil Leaks: The switch itself may be leaking oil onto the engine block or oil filter housing. As mentioned, always check for oil *inside* the electrical connector.
- Check Engine Light: A fault code like P0520 may be stored, triggering the check engine light. 🎬 Learn how to log real-time oil pressure data on your BMW.
Choosing the Right Aftermarket Switch for Your 535i
Not all aftermarket parts are created equal. For a sensor this critical, choosing a quality brand is important. Here’s a breakdown of available brands from best to worst.
Tier 1: OE-Quality Brands
- Hella, Vemo, CRP (Rein): These brands are often Original Equipment (OE) suppliers to BMW or produce parts to the same standard. They offer the best fit and longest service life, making them a top choice for this critical sensor.
Tier 2: Reputable Aftermarket Brands
- Beck Arnley, Febi, Standard Ignition (SMP): These are trusted names in the aftermarket. They provide a good balance of quality and value and are a reliable choice for a daily driver. Febi, in particular, is a well-regarded German brand.
Tier 3: Budget Brands

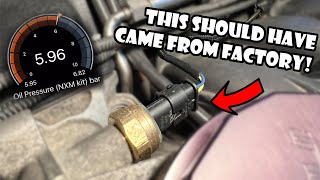

- URO Parts, Global Parts, True Tech: While the low price is tempting, brands like URO have a mixed reputation in the BMW community for fitment and durability issues. For a sensor that can cause or fail to prevent major engine damage, it's generally recommended to spend a few extra dollars for a part 🎬 See why this upgraded sensor kit is a smart DIY choice. from a higher tier.
Cost of Replacing a BMW 535i Oil Pressure Switch
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $7 - $66 |
| New OEM Part | $45 - $85 |
| Shop Labor | $75 - $150 |
Pro Tip: Easy DIY Replacement

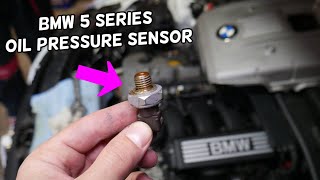

Replacing the oil pressure switch is a beginner-friendly DIY task that can be done in under 30 minutes. The switch is almost always located on the side of the oil filter housing. 🎬 Watch: This video shows the exact location and replacement steps. You'll typically only need a 24mm deep socket or wrench. Doing it yourself saves on labor costs and allows you to inspect the connector for oil contamination immediately.
Frequently Asked Questions
Where is the oil pressure switch located on my 535i?
On virtually all 1985-2011 BMW 535i models (including E28, E34, E39, and E60 generations), the oil pressure switch is screwed into the oil filter housing assembly. You can usually see it by following the wires near your oil filter.
Are there any recalls for the oil pressure switch?
No. While the BMW 535i has had recalls for other issues like airbags and wiring, there have been no official NHTSA recalls for a faulty oil pressure switch.
What happens if I ignore the oil pressure light?
You should never ignore it. If the light is on because of a faulty sensor, you have no way of knowing if a real, catastrophic oil pressure loss occurs. If the light is on because of a real pressure loss, driving the car for even a few minutes can destroy the engine.
Why is there such a big price difference in aftermarket switches?
The price reflects the quality of the materials, manufacturing standards, and testing. Higher-priced switches from brands like Hella or Rein use better internal components that are more durable and less likely to leak or send false signals compared to budget options.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12618611273 12617620512 12617568480 12611730160 12611710509 12610150684
Typically a single-pin switch located on the oil filter housing. Requires a 24mm wrench or deep socket for removal and installation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
