A Guide to Engine Timing Sets for the 1986-1993 Chevrolet Camaro
Keep your third-generation Camaro's V6 or V8 engine running precisely and prevent catastrophic failure by understanding its timing set.
- A rattling noise from the front of the engine is the most common warning sign of a failing timing chain.
- For V8 models, upgrading to a double-roller timing set from a brand like Melling or Cloyes is a highly recommended for durability.
- Replacement is labor-intensive; it's smart to also replace the water pump and front seals at the same time to save on future labor costs.
- Failure to replace a worn timing chain can lead to the engine jumping time, leaving you stranded.
Is Your Camaro's Timing Chain Failing?
The timing chain is a durable part, but it can stretch or wear out over time, especially on high-mileage engines. The original timing gears on some V8 models used nylon-coated teeth that can break down and fall into the oil pan, leading to a very loose chain. When the chain becomes loose, it can cause several noticeable problems.
Key Failure Symptoms:
🎬 Watch: Top 5 symptoms of a bad timing chain- Rattling Noise: The most common sign is a rattling or slapping sound coming from the front of the engine, especially at idle or on startup. This is the sound of the loose chain hitting the inside of the timing cover.
- Engine Misfires and Rough Idle: A stretched chain can jump a tooth on the gears, throwing off the engine's timing. This leads to a rough idle, poor performance, and hesitation during acceleration.
- Backfiring: In severe cases, incorrect timing can cause the engine to backfire through the exhaust.
- Metal Shavings in Oil: When changing your oil, finding small metal shavings on the magnetic drain plug or in the filter is a major red flag. These could be bits of the worn-out chain or gears.
Choosing the Right Aftermarket Timing Set
For the 1986-1993 Camaro, aftermarket timing sets are often considered an upgrade over the original factory parts. You have several good options depending on your engine and how you use your car.
Brand & Quality Tiers
Tier 1: Performance & Heavy-Duty (Recommended for V8s)
- Melling Select Performance / Melling: Melling is a highly respected brand for engine components. Their standard and performance lines offer excellent quality. Many builders prefer Melling for its durability and precise manufacturing.
- Cloyes (Performance Series): Cloyes is another top name in timing components and was a major original equipment supplier. Their performance series, especially double-roller sets, are a popular upgrade for Small Block Chevy V8s.
- Edelbrock: Known for performance parts, Edelbrock offers high-quality timing sets that are often compared directly with Cloyes and are considered a solid choice for modified engines.
Pro Tip: For any V8 engine (5.0L or 5.7L), upgrading from the stock silent-style chain to a double-roller timing set is a smart investment. Double-roller chains are stronger, stretch less, and provide more accurate timing for improved performance and reliability.

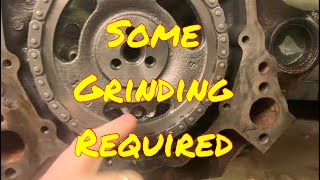

🎬 Watch: Step-by-step guide to aligning and installing your new chainTier 2: Standard Replacement
- Cloyes (Standard): Their standard replacement kits are a reliable choice for stock V6 and V8 engines, offering quality that meets or exceeds original specifications.
- INA: While more commonly associated with other vehicle makes, INA provides quality timing components that can be a suitable replacement for stock applications, particularly for the V6 engines.
How Much Does a Timing Set Replacement Cost?
Replacing the timing set is a labor-intensive job. The cost will depend on the parts you choose and local shop rates. The parts themselves are relatively inexpensive compared to the labor involved.
| Category | Estimated Cost |
|---|---|
| New Aftermarket Parts | $24 - $168 |
| Shop Labor | $550 - $1000 |
| Total Estimated Cost | $574 - $1168 |
Note: Costs are estimates and can vary based on your location and the specific parts chosen. It is highly recommended to replace the water pump, timing cover gasket, and front crankshaft seal at the same time.
Frequently Asked Questions
Is my Camaro's engine an interference engine?
Most factory Small Block Chevy V8s (305/350) and the V6 engines in this era are considered non-interference. This means if the chain breaks, the pistons are not likely to hit the valves, preventing catastrophic engine damage. However, at very high RPM, it's still possible for valves to "float" and make contact. Regardless, a broken chain will leave you stranded.
Is this a good DIY job?
For an experienced home mechanic, yes. 🎬 See this walkthrough on replacing a Small Block Chevy chain The job is straightforward but time-consuming. It requires removing the radiator, water pump, harmonic balancer, and timing cover. You will also need special tools like a harmonic balancer puller. For V8 models, you may need to loosen the oil pan bolts to get the timing cover off.
Should I get a standard chain or a double-roller chain?
For a stock V6, a quality standard "silent" chain is perfectly fine. For any V8, especially if you plan any performance modifications, a double-roller chain from a brand like Cloyes, Melling, or Edelbrock is the recommended choice for its strength and durability.
Do I need to replace the water pump at the same time?
Yes, it is highly recommended. You have to remove the water pump to get to the timing cover anyway, so replacing it at the same time saves you from having to do the same labor all over again in the near future.
Helpful Videos
![Top 5 Symptoms of a BAD TIMING CHAIN [What to Look Out For]](https://img.youtube.com/vi/7beQX8cE-18/mqdefault.jpg)
Technical Specifications
The primary choice for this vehicle is between a standard 'silent' link-type chain and a more robust 'double-roller' chain. V6 engines typically use a silent chain, while V8 owners often upgrade to a double-roller set for increased strength and timing accuracy. The 1986-1993 Camaro was available with a 2.8L V6, 3.1L V6, 5.0L V8 (305), and 5.7L V8 (350). Ensure the timing set is correct for your specific engine.
