1986-1994 Cadillac DeVille Suspension Ball Joint Replacement Guide
Restore your Cadillac's smooth, quiet ride by fixing common front-end clunks and steering wander.
- Listen for clunking sounds from the front suspension, as this is the most common symptom of a bad ball joint.
- Choose a premium aftermarket brand like Moog, ACDelco Gold, or Mevotech TTX for the best longevity.
- A wheel alignment is mandatory after replacing ball joints to prevent unsafe steering and rapid tire wear.
- A completely failed ball joint can cause a wheel to detach, so address symptoms immediately.
Is Your DeVille's Front Suspension Making Noise?
If you're hearing a clunking, knocking, or popping sound from the front of your 1986-1994 Cadillac DeVille, especially when going over bumps or turning, there's a good chance a ball joint has failed. These parts carry a significant load and wear out over time. A worn ball joint is not just noisy; it's a serious safety concern that can lead to steering instability and uneven tire wear.
Warning: Complete Ball Joint Failure is Dangerous
A completely failed ball joint can separate, causing the wheel to collapse and leading to a total loss of steering control. If you suspect a bad ball joint, it's important to get it inspected and replaced promptly.
Symptoms of a Bad Ball Joint on a 1986-1994 DeVille
- Clunking or Knocking Noises: The most common symptom is a metallic clunking sound from the front suspension when driving over bumps, dips, or uneven pavement.
- Vibrations: You might feel excessive vibration through the steering wheel or the floor of the car. This is caused by the looseness in the worn joint.
- Steering Wander: The car may feel loose or unstable, requiring constant steering corrections to keep it driving straight.
- Uneven Tire Wear: Worn ball joints can throw off the wheel alignment, causing the inner or outer edges of your front tires to wear down faster than the rest of the tread.

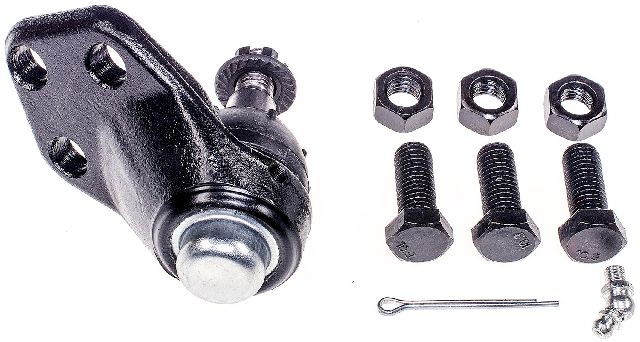

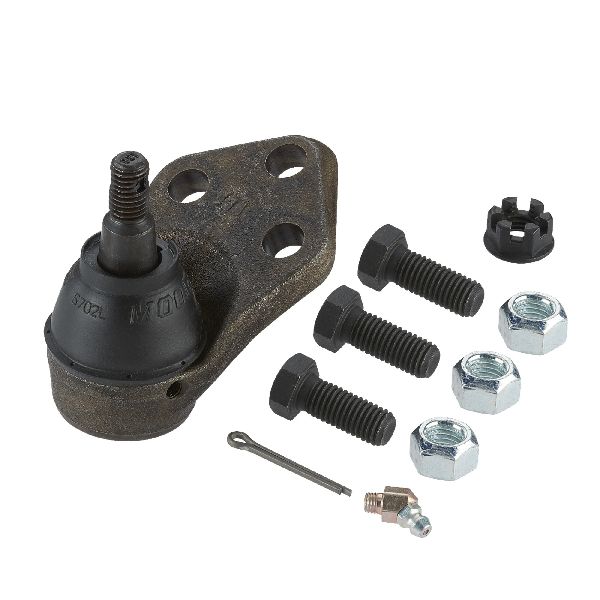

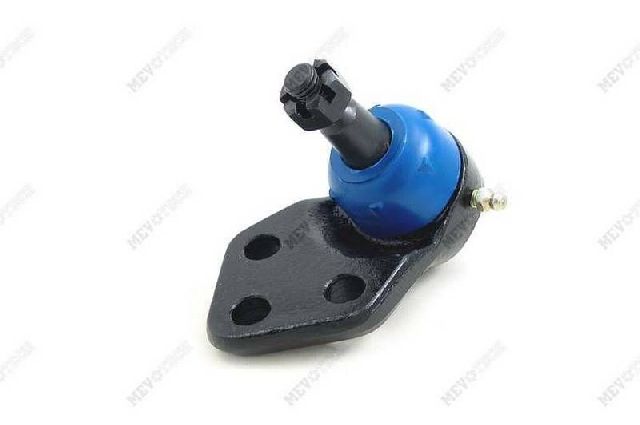

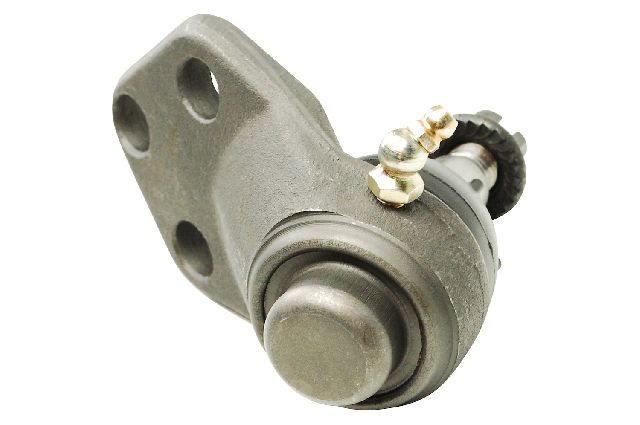

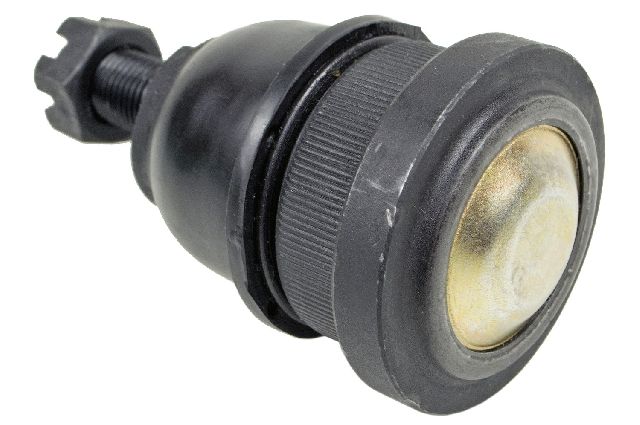

Choosing the Right Aftermarket Ball Joint
For a vehicle of this age, aftermarket parts offer excellent value. Original GM parts may be difficult to find or prohibitively expensive. Aftermarket brands provide a range of options from budget-friendly to heavy-duty. Many aftermarket options, particularly from premium lines, are designed to be an improvement over the original factory parts.
Brand Quality Tiers
Not all brands are created equal. Based on mechanic and owner feedback, aftermarket brands can be grouped into tiers.
- Premium Tier (Moog, ACDelco Gold, Mevotech TTX): These brands are known for quality and often include design improvements. Moog's "Problem Solver" series and Mevotech's "TTX" line are built for durability, often featuring all-metal construction and improved grease flow. ACDelco Gold (formerly "Professional") is GM's high-quality aftermarket line and is a trusted choice. These are recommended for owners who plan to keep their DeVille for a long time.
- Standard Tier (Dorman, Mevotech Supreme, QuickSteer): These brands offer a balance of affordability and acceptable quality for daily driving. Dorman provides a wide range of parts that meet original specifications. Mevotech's "Supreme" line is a step down from their TTX parts but offers a reliable replacement for a worn-out original. These are solid choices for a daily driver on a budget.
- Economy Tier (Store Brands, Unbranded): While the lowest price, these parts often have the shortest lifespan and may use lower-quality materials. For a critical component like a ball joint, it's generally recommended to choose a Standard or Premium tier brand for safety and longevity.
Pro-Tip: Greasable vs. Sealed
Many aftermarket ball joints come with grease fittings (zerks), while original parts are often sealed. Greasable joints can last longer if maintained, as you can periodically flush out old, contaminated grease with new grease. If you choose a greasable joint, be sure to grease it upon installation and during regular oil changes.
How Much Does a Ball Joint Replacement Cost?
The cost depends on whether you do the work yourself or hire a professional. The parts themselves are affordable, but the labor can be intensive.
| Item | Estimated Cost |
|---|---|
| Aftermarket Ball Joint (Single) | $20 - $69 |
| Shop Labor | $180 - $264 (per side) |
| Total Professional Replacement (per side) | $200 - $333 |
| Wheel Alignment (Required) | $80 - $150 |
*Cost estimates are for one side. It is often recommended to replace ball joints in pairs (both lower or both upper). Prices are estimates and will vary by location and shop.
Frequently Asked Questions (FAQ)
Do I need to replace the upper and lower ball joints at the same time?
Not necessarily. You only need to replace the joint that is worn. However, if one has failed due to age and mileage, the others are likely not far behind. It's wise to inspect all ball joints when one is being replaced. Replacing both lower or both upper joints at the same time is common practice to save on future labor and alignment costs.
Is a wheel alignment required after replacing a ball joint?
Yes, absolutely. Replacing a ball joint will affect your vehicle's wheel alignment. You must have a professional four-wheel alignment performed after the replacement to prevent crooked steering, pulling, and rapid tire wear.
Can I replace a ball joint myself?
This is an intermediate-level DIY job. The process requires safely lifting and supporting the vehicle on jack stands. It also requires special tools like a ball joint press and a pickle fork to separate the joint. These tools can often be rented from auto parts stores. If you are not comfortable with the procedure or do not have the right tools, it is best to leave this job to a professional mechanic.
Were there any recalls for the 1986-1994 DeVille ball joints?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any recalls or technical service bulletins (TSBs) specifically related to suspension ball joints for the 1986-1994 Cadillac DeVille.
Technical Specifications
This vehicle uses separate upper and lower ball joints that are pressed into the front control arms. Both greasable and sealed aftermarket options are available.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
