Chevrolet G20 Universal Joint Replacement Guide (1986-1995)
Address driveshaft vibrations and clunking noises on your Chevy G20 van by choosing the right U-joint.
- Listen for clunks when shifting, squeaks at low speeds, and vibrations at high speeds.
- Choose a premium non-greaseable U-joint like Dana Spicer or SKF for the longest, maintenance-free life.
- Always replace U-joints in pairs or sets; if one has failed, the others are not far behind.
- Driving with a failing U-joint is dangerous and can lead to the driveshaft separating from the van.
Is Your Chevy G20's U-Joint Failing?
Universal joints are tough, but they are wear-and-tear items. The needle bearings inside the U-joint caps can wear out from high mileage, heavy loads, or a lack of lubrication. When a U-joint begins to fail on your G20, it will give you clear warning signs. Ignoring them can lead to a complete failure where the driveshaft can separate from the vehicle, causing a loss of power and serious damage.
Key Failure Symptoms:
🎬 Watch: How to tell if your U-joint is bad- Clunking Noise: A distinct "clunk" or "ping" when you shift from drive to reverse or vice-versa is a classic sign of a worn U-joint with excessive play.
- Vibration While Driving: A vibration that you can feel through the floor of the van, which often gets worse at highway speeds, points to a failing U-joint throwing the driveshaft out of balance.
- Squeaking Noise: A rhythmic, chirping squeak that increases with your speed is often the sound of a dry, unlubricated U-joint bearing. This is most noticeable at low speeds. 🎬 See this breakdown of 7 common failure signs
Can You Drive with a Bad U-Joint?
It is not recommended. A worn U-joint can fail completely and without warning. If this happens while driving, the driveshaft can fall and dig into the road, potentially causing you to lose control of the vehicle or causing catastrophic damage to your transmission, exhaust, and undercarriage. It is best to get the issue addressed immediately.
Choosing the Right Aftermarket U-Joint for Your G20
For a vehicle like the 1986-1995 G20, aftermarket U-joints offer excellent quality, often meeting or exceeding original specifications. The original parts were likely made by Dana Spicer, a brand still available today. You have two main choices to make: brand tier and lubrication type.
Brand Quality Tiers
Based on owner experiences and mechanic recommendations, aftermarket brands for the G20 fall into a few categories:
- Premium (OEM Quality or Better): Dana Spicer Chassis is widely considered the top choice and was the likely original supplier for GM. They are known for durability and precise manufacturing. SKF is another premium brand known for high-quality bearings and driveline components.
- Trusted Aftermarket: Moog was once a top-tier brand, but quality can be inconsistent now depending on the manufacturing location. Their premium line is generally reliable. Yukon Gear & Axle specializes in drivetrain components and offers high-strength options suitable for heavy-duty use.
- Standard/Value: GMB and ACDelco (in its standard lines) offer a good balance of price and quality for normal use. They are a reliable choice for a daily-driver van that isn't subjected to constant heavy towing.
Greaseable vs. Non-Greaseable U-Joints
You'll see both types available. Non-greaseable (sealed) U-joints, like the ones your van likely came with from the factory, are very strong and feature robust seals to keep grease in and contaminants out. They are a great "install and forget" option that can last for over 100,000 miles. Greaseable U-joints have a zerk fitting that allows you to add fresh grease periodically. This can extend the part's life by flushing out old grease and moisture, but it requires regular maintenance. If you don't perform the maintenance, their seals are less robust, and they can fail sooner than a sealed joint. For most owners, a high-quality, non-greaseable U-joint from a premium brand is the most reliable choice.
Estimated Costs for U-Joint Replacement
| Part/Service | Estimated Cost |
|---|---|
| Aftermarket U-Joint (Single) | $18 - $148 |
| Shop Labor (for 2 U-joints) | $200 - $450 |
| Total Professional Job | $240 - $750 |
Frequently Asked Questions
How many U-joints does my 1986-1995 G20 have?
Most 1986-1995 Chevy G20 vans with a standard wheelbase have a one-piece driveshaft with two universal joints – one at the transmission and one at the rear axle. However, some long-wheelbase or heavy-duty models may have a two-piece driveshaft with three U-joints and a center support bearing. Always inspect your specific vehicle to confirm the number of joints before ordering parts.
Should I replace all the U-joints at the same time?
Yes. It is highly recommended to replace all U-joints on the driveshaft at once. They have all been subjected to the same amount of wear and mileage. If one has failed, the others are likely near the end of their service life. Replacing them all at once saves you from having to do the same job again in the near future.
Is replacing a U-joint a DIY job? 🎬 Watch: Step-by-step U-joint replacement on a 90s Chevy
This is a moderately difficult job for a DIY mechanic. Removing the driveshaft is straightforward, but pressing the old U-joints out and pressing the new ones in requires specific tools. This can be done with a heavy-duty bench vise and sockets or a dedicated ball joint/U-joint press. If done incorrectly, you can damage the driveshaft yoke or the new U-joint bearings.
Are there any recalls on G20 U-joints?
No. There are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for universal joint failure on the 1986-1995 Chevrolet G20. This part is considered a normal wear item that requires inspection and replacement as part of regular vehicle maintenance.

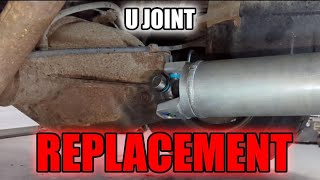

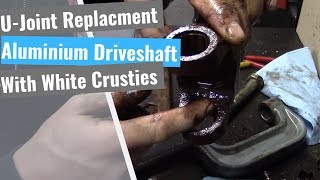

Helpful Videos
Technical Specifications
Most G20 vans use two U-joints. Verify if your van has a one-piece or two-piece driveshaft before ordering, as the number of joints will differ.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
