GMC Jimmy Automatic Transmission Mount: A Complete 1986-1995 Guide
Stop the clunking and vibrations by choosing the right replacement transmission mount for your S-15 Jimmy.
- Symptoms of failure include clunking noises when shifting, excessive vibration, and visible engine movement.
- Choose a standard rubber mount for ride comfort or a polyurethane (Prothane) mount for heavy-duty use and durability.
- Be cautious of the cheapest rubber mount brands (like DEA and Anchor), as many owners report poor quality and short service life.
- While replacing the mount, inspect the transmission crossmember for cracks, a known weak point on these trucks.
Is Your GMC Jimmy's Transmission Mount Failing?
The transmission mount on the 1986-1995 GMC Jimmy is a simple but tough part. However, after decades of use, the original rubber can dry rot, crack, or become saturated with oil, leading to failure. When the mount fails, the transmission is no longer held securely in place, causing a variety of noticeable symptoms.
Symptoms of a Bad Transmission Mount
- Clunking or Banging Noises: The most common symptom is a loud "clunk" or "bang" when you shift from park into drive or reverse. You may also hear this noise during hard acceleration or braking as the transmission shifts and hits the frame.
- Excessive Vibrations: A worn-out mount can no longer absorb drivetrain vibrations. You'll feel these vibrations through the floor and seat, and they often get worse when the truck is in gear and under load.
- Drivetrain Movement: You might feel the whole drivetrain lurch or jerk when you accelerate. A mechanic can diagnose this by lightly prying on the mount or having an assistant put the truck in gear while holding the brake to see if the transmission moves excessively.
Don't Ignore a Bad Mount
Continuing to drive with a completely failed transmission mount can cause damage to other parts. The movement can put stress on engine mounts, driveshaft U-joints, exhaust pipes, and even transmission fluid lines. It's best to replace it as soon as you confirm it has failed.
Choosing the Right Aftermarket Mount
For the 1986-1995 Jimmy, you have two main choices for an aftermarket transmission mount: standard rubber or performance polyurethane. OEM mounts from GM are often discontinued or very expensive, making aftermarket the most common choice.
Tier 1: Standard Rubber Replacements
These mounts are designed to be direct, factory-style replacements that restore the original ride quality. They use rubber to absorb vibrations, keeping the cabin quiet and comfortable. This is the right choice for a daily driver or stock restoration.
- Brands: Anchor, DEA, Westar, Skyward, Pioneer
- Quality Assessment: Forum discussions among truck owners show mixed to poor reviews for budget-friendly brands like Anchor and DEA, with many users reporting premature failure. Some have had better luck with Anchor, considering them an acceptable, if unrefined, option. Pioneer is sometimes mentioned as having better quality, closer to the original factory part. If comfort is your priority, a higher-quality rubber mount is the goal, but be wary of the cheapest options as you may be replacing it again soon.
Tier 2: Polyurethane Performance Mounts
Polyurethane is a much stronger and more durable material than rubber. It's resistant to oil, chemicals, and the stress of high-horsepower or off-road use. This is the best choice if you use your Jimmy for towing, off-roading, or have a modified engine.
- Brands: Prothane, Energy Suspension
- Quality Assessment: These mounts are built to last and will handle far more abuse than any rubber mount. The significant trade-off is a noticeable increase in noise, vibration, and harshness (NVH) inside the truck, as the stiff material transmits more of the drivetrain's vibrations. Some owners report the harshness lessens slightly as the mount breaks in. Choose this option only if you are willing to sacrifice some ride comfort for maximum durability.
Pro Tip: Inspect Your Crossmember
While you are replacing the transmission mount, take a close look at the transmission crossmember it bolts to. These are known to develop cracks over time, especially on trucks that are used hard. It's much easier to repair or replace a cracked crossmember while the mount is already off.
Cost of Replacing a GMC Jimmy Transmission Mount
| Part Type | Part Cost | Estimated Labor Cost | Total Estimated Cost |
|---|---|---|---|
| Aftermarket Rubber Mount | $11 - $35 | $100 - $225 | $111 - $260 |
| Aftermarket Polyurethane Mount | $40 - $65 | $100 - $225 | $140 - $290 |
Cost estimates are based on national averages for parts and labor and may vary by location and garage.
Frequently Asked Questions
Can I drive my Jimmy with a bad transmission mount?
You can drive for a short time, but it's not recommended. A completely failed mount can lead to damage to other components like the driveshaft, exhaust, and engine mounts, leading to more expensive repairs down the road.
Is it hard to replace a transmission mount on a 1986-1995 Jimmy?
No, it is a relatively easy job for a DIY mechanic. It requires basic hand tools, a jack, and jack stands. The process involves supporting the transmission with the jack, unbolting the crossmember, and swapping the mount. The most common difficulty is dealing with rusted bolts.
Should I choose a rubber or polyurethane mount?
Choose rubber for a stock, daily-driven truck where ride comfort is important. Choose polyurethane if you have a high-performance engine, tow frequently, or take your Jimmy off-road and need maximum durability.
Are there any recalls for the transmission mount on my GMC Jimmy?
No, there are no active recalls or Technical Service Bulletins (TSBs) from the NHTSA for the transmission mount on the 1986-1995 GMC Jimmy.
Technical Specifications

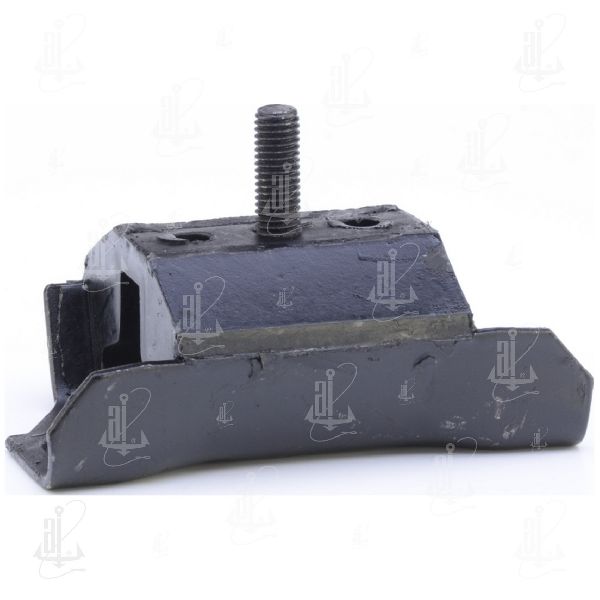

The mount is a common GM style, typically featuring a single stud or bolt hole for the crossmember and two bolts that attach to the transmission tail housing.
