Engine Coolant Bypass Hose: A Guide for 1986-1995 Mazda 323 Owners
Keep your classic 323's engine cool and prevent leaks by understanding this critical cooling system hose.
- A failing bypass hose will cause coolant leaks and lead to engine overheating; do not drive if you suspect a leak.
- High-quality aftermarket brands like Gates and Continental are reliable and cost-effective choices for this part.
- Due to the vehicle's age, it is wise to replace this hose as preventative maintenance, especially if its age is unknown.
- Check for the critical open safety recall on the ignition switch for 1990-1995 models, which can pose a fire risk.
Symptoms of a Failing Bypass Hose
A bad bypass hose will almost always result in a coolant leak. Because this hose is over 30 years old, the original rubber is likely weak and ready to fail. Look for these clear warning signs:
- Coolant Leaks: This is the most common symptom. You may find puddles of green or orange fluid under your car or see dried, crusty residue on or around the hose itself.
- Engine Overheating: A leaking hose leads to low coolant levels. If the level drops too much, your temperature gauge will climb into the red, putting your engine at risk of serious damage.
- Steam or Sweet Smell: If coolant drips onto a hot engine part, it will create steam from under the hood and a distinct sweet smell. You might smell the leak before you see it.
- Visible Hose Damage: Inspect the hose when the engine is cool. If it looks cracked, swollen, or feels either rock-hard or mushy, it needs to be replaced immediately.
Critical Safety Recall Notice: Ignition Switch
While not related to the cooling system, a major safety recall (NHTSA Campaign #15V674000) was issued for 1990-1995 Mazda 323 models. Grease in the ignition switch can overheat and cause a fire. It is highly recommended that you contact a Mazda dealer or use the NHTSA website to see if this critical repair has been performed on your vehicle.
Choosing the Right Aftermarket Hose: OEM vs. Aftermarket
For a vehicle of this age, original equipment (OEM) hoses can be difficult to find and expensive. Fortunately, top-tier aftermarket brands offer excellent quality that often meets or exceeds original specifications. For the 1986-1995 Mazda 323, both Continental and Gates are highly reputable choices available at a reasonable price.
- Gates: Often considered an industry benchmark, Gates hoses are known for their durability and precise, molded fit. A Mazda owner on a popular forum confirmed that a Gates bypass hose for a '87 323 was a perfect fit for a similar engine.
- Continental: As a major producer of automotive rubber products, Continental (sometimes sold as ContiTech) offers reliable, high-quality hoses that are a dependable choice for your 323.
Pro Tip: Given the low cost of the part and the age of the vehicle, there is little debate between OEM and quality aftermarket. Both Gates and Continental are trusted brands used by professional mechanics. Your choice can confidently be based on price and availability.
Engine Coolant Bypass Hose Replacement Cost
Replacing this hose is one of the more affordable repairs for your Mazda 323. The part itself is inexpensive, and labor is minimal. The prices below are estimates.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Hose | $7.01 - $55.93 |
| Shop Labor | $90 - $180 |
| Total Professional Replacement | $97 - $236 |
Frequently Asked Questions (FAQ)
Can I drive with a leaking coolant bypass hose?
No. A leaking hose can burst without warning, causing a rapid loss of all engine coolant. This will lead to immediate overheating and can cause catastrophic engine damage, such as a warped cylinder head. It is not safe to drive.
How difficult is it to replace the bypass hose myself?
For most DIY mechanics, this is a relatively easy job. It typically involves draining some coolant, using pliers to remove the old spring clamps, swapping the hose, and refilling and bleeding the cooling system. Access is generally good on the 323's engine.
Should I replace other parts at the same time?
Yes. Since you will be draining the coolant, it's the perfect time to replace other aging cooling system parts. Consider replacing the upper and lower radiator hoses, heater hoses, and the thermostat as preventative maintenance. Always use fresh coolant when refilling the system.
What kind of coolant should I use in my 1986-1995 Mazda 323?
Always consult your owner's manual or a reliable service manual. Generally, a traditional green, ethylene glycol-based coolant is appropriate for vehicles of this era. Using the correct type is crucial for preventing corrosion.
Technical Specifications

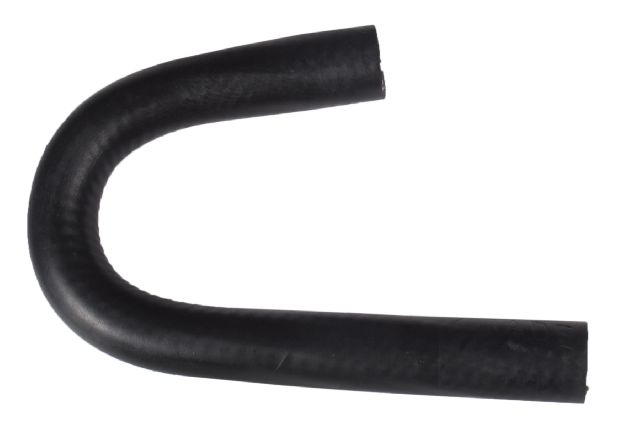

OEM Part Numbers: B61P15261A E5D3-15-186
Material: EPDM Rubber, Molded: Yes.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
