Dodge Caravan Engine Coolant Bypass Hose Guide (1986-1996)

A must-read for any 1986-1996 Dodge Caravan owner dealing with coolant leaks or overheating.

4 minutes to read 1986-1996 Dodge Caravan
Difficulty
2/5
Est. Time
1.5 hrs
DIY Doable?
✅ Yes
Shop Labor
$120-$180
🚫 Do not drive — Driving with any coolant leak risks rapid overheating and can cause catastrophic engine damage.
Key Takeaways
  • A leaking bypass hose is a serious issue that can lead to critical engine damage from overheating; do not drive the vehicle if you suspect a leak.
  • For this age of Caravan, high-quality aftermarket brands like Gates or Continental are the best choice and are often better than the original parts.
  • Inspect for and strongly consider replacing any original plastic 'Y' or 'T' connectors with durable brass fittings, as they are a common failure point.
  • Always replace hose clamps with new ones when replacing any coolant hose to ensure a secure, long-lasting seal.
The engine coolant bypass hose on your Dodge Caravan is a key part of the cooling system. It allows coolant to circulate through the engine block when the main thermostat is closed. This helps the engine warm up faster and more evenly. On some models, it is also connected to the heater system, helping to provide heat to the cabin. This hose essentially creates a shortcut, or 'bypass,' around the main radiator until the engine reaches its full operating temperature.

Is Your Caravan Leaking Coolant? Check This Hose.

If you own a first or second-generation Dodge Caravan, you know that keeping the cooling system in top shape is crucial. These vans are known for their reliability, but rubber and plastic parts simply don't last forever. The engine coolant bypass hose is a common source of leaks that can lead to serious engine problems if ignored.

Symptoms of a Failing Bypass Hose

A bad bypass hose usually makes itself known in a few ways. Being aware of these signs can help you catch a problem before you're left stranded.

  • Coolant Puddles: This is the most obvious sign. You might see green, yellow, or orange puddles of sweet-smelling liquid under the front of your van.
  • Sweet Smell & Steam: If the hose leaks onto hot engine parts, the coolant will burn off, creating a distinct sweet smell and visible steam coming from under the hood.
  • Engine Overheating: A significant leak means less coolant to cool the engine. If your temperature gauge starts climbing into the red, a hose failure is a likely cause.
  • Low Coolant Level: Do you have to top off the coolant reservoir often? A slow leak from a failing bypass hose could be the reason.
  • Visible Hose Damage: When the engine is cool, feel the hose. If it feels rock-hard, brittle, mushy, or you see cracks and bulges, it's time for a replacement.

A Note on Plastic Connectors

Many Dodge and Chrysler vehicles of this era used plastic 'Y' or 'T' connectors in the cooling system. These are a notorious failure point, becoming brittle and cracking over time. If your bypass hose is connected to one of these, it is highly recommended to replace the plastic fitting with a more durable brass or metal version 🎬 See how to fix common heater hose leaks on Chrysler vans, even if it hasn't failed yet.

Choosing the Right Aftermarket Bypass Hose

Finding an original Mopar hose for a vehicle this age is nearly impossible. Fortunately, the aftermarket offers excellent, and often superior, replacement options.

Brand Quality Tiers

When it comes to cooling system parts, quality matters. Here’s a breakdown of the available brands based on owner feedback and mechanic consensus:

  • Premium (Recommended): Gates, Continental
    Gates is widely considered the gold standard for aftermarket belts and hoses. They are known for perfect fitment and using high-quality materials that resist degradation. Continental is another top-tier brand with a strong reputation. You can't go wrong with either for this critical part.
  • Standard: Dayco
    Dayco is a well-known brand that offers reliable hoses. While they are a solid choice, some mechanics have noted occasional fitment issues where the hose shape isn't a perfect match to the original. However, they are a dependable option that will get the job done.
  • Other Brands (ACDelco)
    ACDelco parts can be a mixed bag. Sometimes they are rebranded Gates hoses, and other times they are from a different supplier. Quality is generally good, but it's less consistent than sticking with a top brand like Gates.

Pro Tip: Always replace the hose clamps when you replace a hose. Old clamps can lose their tension, leading to leaks even with a brand-new hose. Spring-style clamps are often preferred as they maintain constant tension as the hose expands and contracts with heat.

Cost of Replacing the Engine Coolant Bypass Hose

Part/Service Estimated Cost
New Aftermarket Part $9.95 - $93.36
Shop Labor $120 - $180
Total Estimated Cost $130 - $275

Cost estimates are for reference only and will vary based on your location, the specific part required for your engine 🎬 Watch: Replacing the lower metal coolant bypass pipe on 3.3L engines, and your mechanic's labor rates. The wide part price range reflects the variety of hose configurations across different engines and model years.

Frequently Asked Questions

What does the engine coolant bypass hose do?

It allows hot coolant to circulate within the engine before the thermostat opens, helping the engine warm up quickly and providing coolant flow for the heater core. It bypasses the cold radiator.

Can I drive my Caravan with a leaking bypass hose?

No. A coolant leak can quickly lead to overheating, which can cause severe and expensive engine damage, such as a blown head gasket. It is not safe to drive the vehicle until the leak is fixed.

Is replacing the bypass hose a DIY job?

For most people with basic hand tools, yes. The process involves draining the coolant, accessing the hose, removing the clamps, swapping the hose, and then refilling and bleeding the air from the cooling system. The biggest challenge is often reaching the clamps in a tight engine bay.

🎬 Watch this walkthrough for a typical Chrysler coolant leak repair
Should I replace other cooling system parts at the same time?

If your hoses are old enough to fail, it's wise to inspect the other cooling system components. Consider replacing other old hoses (like the main radiator hoses), the thermostat, and the radiator cap as preventative maintenance. If one hose has failed from age, others are likely near the end of their life too.

Are there any recalls for this part?

No, there are no specific recalls for the engine coolant bypass hose on the 1986-1996 Dodge Caravan. However, there was a Technical Service Bulletin (TSB #070397) issued for the 1996 model regarding general coolant usage concerns, indicating that leaks were a known issue.

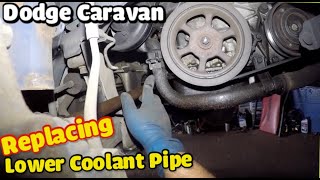

Replacing lower metal coolant by pass pipe on Dodge Caravan 3.3 or 3.8L
▶
Replacing lower metal coolant by pass pipe on Dodge Caravan 3.3 or 3.8L
Heater Hose Fix Town & Country, Dodge Caravan, Vw Routan Van Heater Hose Leak Repair Fixed
▶
Heater Hose Fix Town & Country, Dodge Caravan, Vw Routan Van Heater Hose Leak Repair Fixed
Chrysler Town & Country coolant leak repair
▶
Chrysler Town & Country coolant leak repair
Bypassing leaking rear coolant lines...vanlife...Dodge Caravan
▶
Bypassing leaking rear coolant lines...vanlife...Dodge Caravan
Coolant leak fix Chrysler town & country & dodge caravan 08 —3.8 l
▶
Coolant leak fix Chrysler town & country & dodge caravan 08 —3.8 l

Technical Specifications

Varies by engine size (2.2L, 2.5L, 2.6L, 3.0L, 3.3L, 3.8L) and model year. Most are molded EPDM rubber hoses. Some configurations include plastic T-connectors.
