A/C Compressor Replacement Guide for the 1986-1996 Oldsmobile 98
Keep your classic Oldsmobile 98 cool by choosing the right A/C compressor for your system.
- You MUST identify your A/C system's refrigerant type (R-12 or R-134a) before ordering parts.
- Always replace the accumulator/drier and orifice tube with the compressor to ensure system longevity and warranty coverage.
- If the old compressor failed internally, the entire system must be flushed to prevent damage to the new compressor.
- Denso offers OEM-level quality for higher reliability, while brands like Four Seasons are more budget-focused but may have inconsistent quality.
Is Your Oldsmobile 98's A/C Blowing Hot Air?
When the air conditioning in your 1986-1996 Oldsmobile 98 stops working, a failed A/C compressor is a common cause. This component works hard under the hood and eventually wears out. Recognizing the signs of failure can help you diagnose the problem correctly and get your A/C running cold again.
Common Symptoms of a Bad A/C Compressor
- Warm Air From Vents: The most obvious sign is when your A/C system no longer cools the cabin air. If the compressor can't pressurize the refrigerant, the cooling cycle can't happen.
- Loud Noises: Grinding, squealing, or rattling sounds from the engine bay when you turn the A/C on often point to failing internal bearings or a bad clutch in the compressor.
- Compressor Clutch Issues: The clutch on the front of the compressor pulley should engage with a 'click' when the A/C is turned on. If it doesn't engage, or if it cycles on and off too frequently, the compressor or its control system may be faulty.
- Visible Leaks: The compressor contains seals that can fail over time, leading to leaks. You might see an oily, greasy residue on the body of the A/C compressor.
R-12 vs. R-134a: The Most Important Check
Your 1986-1996 Oldsmobile 98 was built during the transition from R-12 (Freon) to R-134a refrigerant. Models made before 1993 likely used R-12 from the factory. Many of these older systems have been converted to the newer R-134a standard. You must know which refrigerant your car uses before buying parts.
- Look for a sticker under the hood indicating the refrigerant type and oil required.
- R-134a conversion kits often included new service port fittings that look different from the original R-12 fittings.
- Using the wrong compressor or oil will cause premature failure. A common issue with R-134a conversions on these cars is poor cooling at idle because the original condenser is not efficient enough for the new refrigerant.
Choosing the Right Aftermarket Compressor
Since new OEM compressors for a vehicle of this age are rare and expensive, a new aftermarket unit is the most practical choice. Aftermarket brands offer a range of quality and price points.
Brand Quality Tiers
- Tier 1 (OEM Quality): Denso
Denso is a well-respected brand that was often the original equipment manufacturer for many automakers. Choosing a Denso compressor is the safest bet for long-term reliability, quiet operation, and performance that meets or exceeds factory standards. While it may be the most expensive aftermarket option, its durability often makes it the best value over time. - Tier 2 (Standard Aftermarket): Four Seasons & Global Parts (GPD)

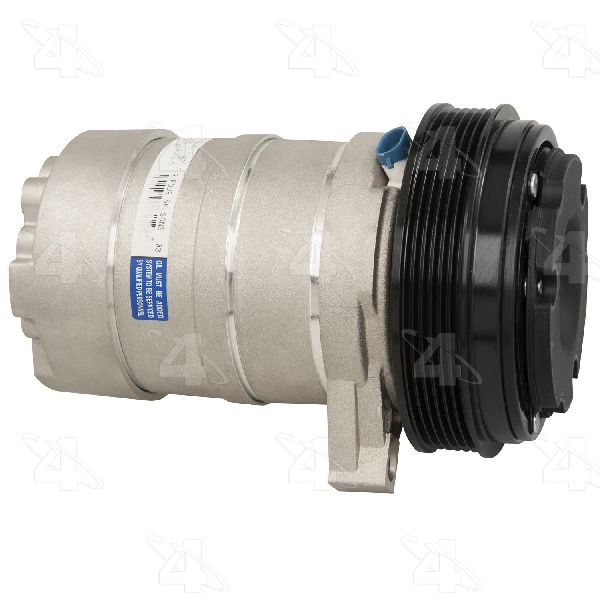

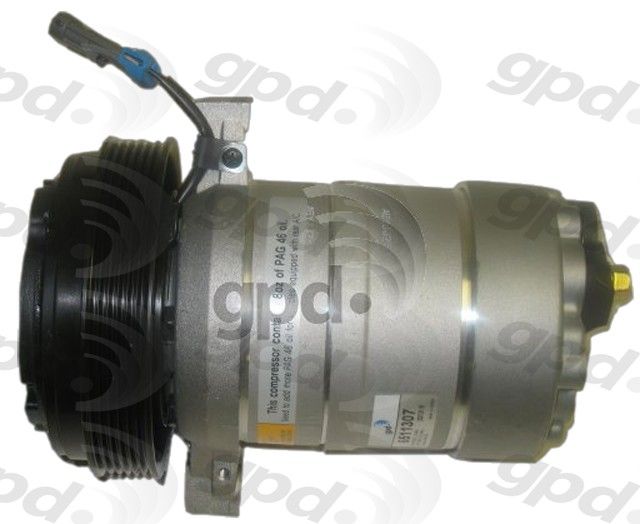

Four Seasons is one of the most common aftermarket A/C brands. Reviews are often mixed; some owners have great success with them, while others report issues like noise or early failure. GPD is another popular budget-friendly brand. These brands can be a good choice if budget is your primary concern, but be aware that quality control can be inconsistent compared to a premium brand like Denso.
Always Replace More Than Just the Compressor
When a compressor fails, it can send metal debris throughout the A/C system. To prevent your new compressor from failing immediately, you must also replace the A/C accumulator (or receiver/drier) and the orifice tube. It is also highly recommended to flush the rest of the system (hoses, evaporator, condenser) to remove any old oil and contaminants. Failing to do so will likely void the warranty on your new compressor.
Cost of Replacing an Oldsmobile 98 A/C Compressor
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket A/C Compressor | $232 - $398 |
| Accumulator/Drier & Orifice Tube | $40 - $80 |
| Shop Labor (including evacuation & recharge) | $350 - $550 |
| Total Estimated Cost | $622 - $1,028 |
Costs are estimates and will vary based on your location, vehicle condition, and the specific parts chosen.
Frequently Asked Questions
Do I have to be a certified mechanic to replace my A/C compressor?
While you can physically unbolt the old compressor and install a new one, it is illegal to release refrigerant into the atmosphere. The A/C system must be professionally evacuated before you begin work and then properly vacuumed and recharged after the new parts are installed. For this reason, at least part of the job requires a certified mechanic with special equipment.
My old compressor locked up. What else do I need to do?
If your compressor seized or failed internally, it's critical to flush the entire A/C system to remove metal shavings. If you don't, that debris will circulate and destroy your new compressor very quickly. You must also replace the accumulator and orifice tube.
The new compressor came with oil. Should I add more?
Maybe. Some compressors come with a full system charge of oil, while others only have a small amount for assembly. You must drain the oil from the new compressor to measure how much is inside and then add the correct type and total amount of oil as specified for your vehicle's A/C system. This information is usually found on a sticker under the hood or in the service manual. Do not assume it is correct out of the box.
Why is my A/C still not cold at stoplights after replacing everything?
This is a known issue on older cars converted from R-12 to R-134a refrigerant. The original condenser may not be large enough to cool the R-134a refrigerant effectively without highway-speed airflow. Ensure your engine's cooling fans are working correctly, as they play a crucial role in pulling air through the condenser at idle.
Technical Specifications
OEM Part Numbers: 1136477 1520247 1520250 1520265 1520266 152451 152700 152986 152989
Compressor Type: Varies by year (GM A6 or HR6/HT6). Refrigerant Type: R-12 (pre-1993) or R-134a (1993+ and conversions). Oil Type: Mineral Oil for R-12 systems, PAG 150 for R-134a systems. Clutch: Included with new compressors. Pulley: Typically 6-groove serpentine.
