Ford Aerostar 1986-1997 Ignition Switch: A Guide to Stalling, Starting Problems, and Recalls
If your Aerostar is stalling, won't start, or has electrical gremlins, the ignition switch is a likely culprit.
- A major fire recall exists for the ignition switch; check if your van was serviced before replacing parts.
- Stalling while driving and no-start conditions are classic symptoms of a bad electrical ignition switch, not the lock cylinder.
- The ignition switch is the electrical part on the steering column; the lock cylinder is the mechanical part where the key goes.
- For best results, choose a quality aftermarket brand like Standard Ignition or an OEM Motorcraft part if available.
Ignition Switch vs. Ignition Lock Cylinder
Many owners confuse the ignition switch with the ignition lock cylinder. Understanding the difference is key to ordering the right part. The lock cylinder is the mechanical tumbler you put your key into; it fails when the key gets stuck, feels gritty, or won't turn. The ignition switch is the electrical part activated by the lock cylinder; it fails by causing stalling, no-start conditions, or loss of electrical power. This guide focuses on the electrical ignition switch.
Critical Recall for Fire Risk
A major safety recall was issued for many 1988-1997 Ford Aerostars due to a faulty ignition switch. The original switch could develop a short circuit, causing it to overheat and potentially start a fire, even with the vehicle turned off and parked. The official Ford remedy was to install a new wiring harness with a relay that reroutes the high electrical load away from the switch itself. Before replacing your switch, you should inspect the wiring around the steering column for a non-factory harness or relay, which would indicate the recall service was performed.
Common Symptoms of a Failing Ignition Switch
A bad ignition switch can cause confusing problems that might seem unrelated. Watch for these signs:
- Engine Stalls While Driving: The most serious symptom. The switch can lose connection internally, especially when going over bumps, causing the engine to shut off without warning.
- No-Crank / No-Start: You turn the key and hear a single click or complete silence. This happens because the switch fails to send power to the starter motor. This is different from the rapid clicking of a low battery.
- Starts Then Dies: The engine fires up while the key is in the 'START' position but dies as soon as you release it to the 'RUN' position.
- Intermittent Electrical Issues: Your radio, dashboard lights, or power windows may flicker or stop working randomly. This indicates the switch is not providing consistent power to accessory circuits.
- Key is Loose or Won't Shut Off Engine: In some cases, a related internal steering column part, the actuator, can fail, causing problems like the engine not shutting off when the key is turned. While this is not the switch itself, it is a common issue in the same area.
Choosing the Right Aftermarket Ignition Switch
For a vehicle of this age, aftermarket parts are the most common and affordable option. Quality can vary, so it's important to choose a reputable brand.
- Motorcraft: As Ford's original equipment (OE) brand, Motorcraft is the benchmark for fit and quality. If you can find a Motorcraft switch, it is considered the most reliable choice, especially for critical electrical parts.
- Standard Ignition (SMP): Standard Motor Products is a well-respected aftermarket manufacturer known for producing high-quality components that meet or exceed OE specifications. They are a trusted choice for professional mechanics and a solid option for your Aerostar.
- Dorman: Dorman is a popular aftermarket brand that often provides good value. While their quality can be inconsistent depending on the part, they are a major supplier and a viable budget-friendly option.
| Part | Typical Cost |
|---|---|
| New Aftermarket Ignition Switch | $32.80 - $55.93 |
| New OEM (Motorcraft) Ignition Switch | $40 - $80 (if available) |
| Shop Labor to Install | $100 - $200 |
Frequently Asked Questions (FAQ)
Is my problem the ignition switch or the lock cylinder?
If your key won't turn, is stuck, or feels gritty, the problem is likely the mechanical lock cylinder. If your van stalls, won't start, or has flickering lights, but the key turns smoothly, the problem is likely the electrical ignition switch.
Can I replace the ignition switch myself?
Yes, this is a feasible DIY job for those 🎬 Watch this quick DIY walkthrough for replacing the electrical switch. comfortable with basic tools. The process involves removing the plastic shrouds around the steering column to access the switch, unplugging the electrical connector, and swapping the part. It typically does not require special tools.
What if my van had the ignition switch recall done?
If the recall was performed, you will find an extra relay and wiring harness under the dash near the steering column. Your new ignition switch will plug into this modified harness. The recall fix was designed to prevent the new switch from failing due to the same overload problem.
Will I need a new key if I replace the ignition switch?
No. You only need new keys if you replace the ignition lock cylinder. Replacing the electrical ignition switch does not affect your current keys.
Helpful Videos

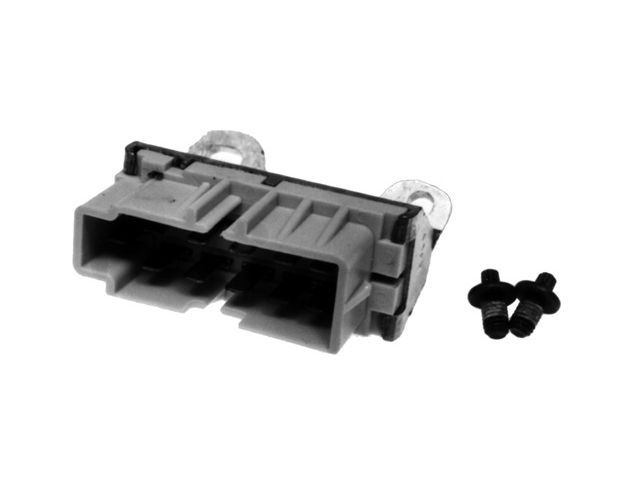

Technical Specifications
OEM Part Numbers: SW-2474
Electrical switch mounted on the steering column, activated by the ignition lock cylinder.
