A Guide to Spark Plugs for the 1986-1997 Ford Aerostar
Keep your Aerostar's engine running strong by understanding its unique spark plug needs.
- Accessing all spark plugs on V6 Aerostars is a known challenge; some are reached from the top, some from the wheel wells, and some from inside the van.
- For best results, use OEM Motorcraft or high-quality Autolite double platinum spark plugs, especially on 4.0L engines with a waste spark ignition system.
- Always replace spark plugs and wires as a set to ensure optimal performance and avoid doing the difficult job twice.
- Verify the spark plug gap before installation, even if the plugs are advertised as pre-gapped.
Signs of Failing Spark Plugs in Your Aerostar
When your spark plugs start to wear out, your van will usually let you know. The signs can be subtle at first but will get worse over time. Look out for these common symptoms:
- Rough Idle: The engine may shake or sputter when you're stopped.
- Poor Acceleration: You might notice the van feels sluggish or hesitant when you press the gas pedal.
- Reduced Fuel Economy: Worn plugs can cause your engine to burn more fuel, meaning more trips to the gas station. A bad plug can reduce gas mileage by as much as 30%.
- Engine Misfires: A misfire happens when a cylinder fails to ignite the fuel mixture properly. It can feel like a stutter or a jolt while driving.
- Difficulty Starting: If the plugs are too worn, they may not be able to create a strong enough spark to start the engine.

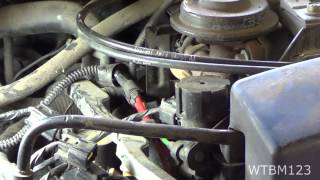

- Check Engine Light: A failing spark plug can trigger the Check Engine Light, often with codes indicating an engine misfire (e.g., P0300-P0306). 🎬 Watch: Diagnosing misfire codes and replacing bad plugs.
A Word of Caution: The Aerostar Spark Plug Challenge
Changing spark plugs on a Ford Aerostar, especially the V6 models, is known for being a difficult job. The engine bay is tight, and some plugs are very hard to reach. The rear passenger-side plug is notoriously challenging. Many owners find they need to access some plugs from the top, some from inside the van by removing the engine cover ("doghouse"), and others through the front wheel wells after removing the tires. This job requires patience and a good set of tools, including various extensions and swivel sockets.

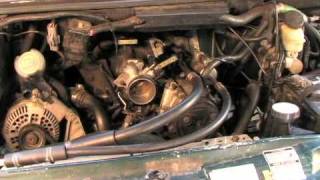

🎬 See this walkthrough for accessing those hard-to-reach Aerostar plugs.Choosing the Right Aftermarket Spark Plugs
Your Aerostar's ignition system was designed for specific types of spark plugs. While you have many aftermarket options, it's important to choose wisely. Using the wrong plug can lead to poor performance.
Brand Tiers for Your Aerostar
- OEM / Premium Aftermarket (Best Bet): Motorcraft is the original equipment (OEM) brand for Ford. Choosing Motorcraft is a safe way to ensure you're getting a part designed specifically for your engine. Autolite is also a highly recommended brand for Fords, as their heat ranges often match Motorcraft exactly. Many owners report excellent results with Autolite plugs. NGK and Denso are top-tier Japanese brands known for exceptional quality and are also a great choice for the Aerostar.
- Quality Aftermarket (Reliable Choices): Brands like Bosch and Champion offer good quality plugs that meet or exceed OEM specifications. They are reliable alternatives that can sometimes offer better value. However, some forum users have reported inconsistent results with these brands in Aerostars, so sticking with the premium recommendations is often preferred.
- Economy Brands (Budget-Friendly): Brands like Skyward and Accel provide a low-cost option to get your van running. While they will work, they may not have the same performance or longevity as the premium brands.
Copper, Platinum, or Iridium?
Your Aerostar originally came with copper or single platinum plugs. For the 4.0L engine with a waste spark system, it's important to use double platinum plugs. This system fires plugs on both the power and exhaust strokes, wearing them out twice as fast if the wrong material is used. While more expensive iridium plugs are available, double platinum plugs from a quality brand like Motorcraft or Autolite provide the best balance of performance and longevity for this specific vehicle.
| Plug Type | Price Range (Set of 6) | Typical Lifespan |
|---|---|---|
| Copper | $15 - $30 | 20,000 - 30,000 miles |
| Single Platinum | $25 - $60 | Up to 60,000 miles |
| Double Platinum | $30 - $90 | 60,000 - 100,000 miles |
| Iridium | $45 - $120+ | 75,000 - 125,000 miles |
Frequently Asked Questions (FAQ)
How often should I change the spark plugs on my Ford Aerostar?
For standard copper plugs, a good interval is every 30,000 miles. If you use higher quality double platinum plugs, you can extend that to 60,000 miles or more. Given the difficulty of the job, using long-life plugs is highly recommended.
Do I need to check the gap on my new spark plugs?
Yes. Even if the box says they are "pre-gapped," you should always verify the gap with a feeler gauge before installation. The correct gap is crucial for proper ignition. Shipping and handling can easily change the gap. The gap for most Aerostar models is around 0.054 inches, but always check the specification for your specific engine.
Why is it so hard to change the spark plugs on my Aerostar?
The Aerostar has a "cab-over" design, where the engine is pushed forward and under the passenger compartment to maximize interior space. This results in a very tight engine bay with poor access to many components, including the spark plugs. Mechanics and owners have developed techniques using the wheel wells and interior engine cover to get the job done.
Should I replace the spark plug wires at the same time?
Yes, it is highly recommended to replace the spark plug wires when you change the plugs. Wires degrade over time from the high heat in the engine bay. A new set of wires ensures that the maximum amount of energy reaches the new plugs for a strong spark. Using quality wires from brands like Motorcraft is important.
🎬 Watch: How to replace your plugs, coil, and distributor cap.Helpful Videos
Technical Specifications
OEM Part Numbers: SP-486 AGSF42FM SP-419-A SP-413-X SP-493-X
The Ford Aerostar was available with a 2.3L I4, 3.0L V6, and 4.0L V6 engine. It is critical to select the spark plug specified for your engine. The 4.0L and later 3.0L models use a waste spark ignition system and require double platinum plugs for proper longevity and performance. Most applications use a 5/8" hex socket and a tapered seat.
