Guide to the 1987 GMC V2500 Engine Oil Pressure Switch and Sender
Everything you need to know about diagnosing and replacing the oil pressure sending unit on your classic GMC truck.
- The most common failure symptoms are an inaccurate gauge reading (zero, maxed out, or flickering).
- Confirm your truck has a single-wire sender for the gauge before purchasing a replacement.
- This is a DIY-friendly repair, but access is tight and may require a special oil pressure sender socket.
- If the gauge reads low and you hear engine noise, stop the engine immediately to prevent damage.
Understanding the Oil Pressure Sender on a 1987 V2500
For the 1987 model year, which uses an electric oil pressure gauge, the sending unit is a canister-style part. It's typically located at the top rear of the engine block, near the distributor. This part is crucial because it provides a variable signal to your dash gauge, allowing you to see your actual oil pressure, not just an on/off warning light. Failures in the sender, the gauge itself, or the wiring 🎬 Watch: How to troubleshoot and repair GM oil pressure gauges are common on these older trucks.
Symptoms of a Failing Oil Pressure Sender
A bad oil pressure sender can cause a lot of confusion. The most common signs are directly related to the gauge on your dashboard.
- Gauge Reads Zero or Maxed Out: The most obvious symptom is the oil pressure gauge reading at zero or pegged high (past 60 PSI) even when the engine is running normally. If the engine sounds healthy and has the correct oil level, the sender is a prime suspect.
- Erratic Gauge Behavior: The needle may flicker, bounce around, or drop to zero intermittently while driving. This can be caused by a failing diaphragm inside the sender or a poor electrical connection.
- Oil Leaks: The sender itself can develop leaks over time. You might see oil residue on the sender or dripping from its location at the back of the engine.
Is It the Sender or the Engine?

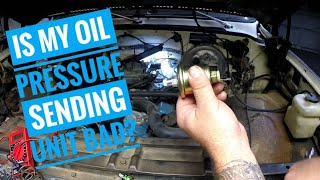

🎬 Watch: Diagnosing a bad oil pressure sender on a square bodyIf your gauge shows low or zero oil pressure, listen for engine noises like ticking, knocking, or grinding. If you hear these sounds, shut off the engine immediately. This indicates a true low oil pressure problem that can cause severe engine damage. If the engine sounds normal, the problem is more likely the sender or wiring.
Choosing the Right Aftermarket Part
For a vehicle like the 1987 V2500, aftermarket parts are often the only option and can be very reliable. The quality of new aftermarket senders can sometimes be inconsistent, so it's wise to test a new part before installation if possible. Here's a look at the available brands:
- Standard Ignition (SMP): A very well-known and generally respected aftermarket brand. They have been making electronic components for decades and are often considered a top-tier replacement option. They manufacture many of their own parts in certified facilities.
- Rostra Powertrain: Rostra is a manufacturer of both OE and aftermarket electronic parts, known for quality. They hold high-level quality certifications (ISO-9001 and IATF-16949) for their manufacturing facilities.
- Global Parts: This brand is a more budget-friendly option. While they can offer significant savings, they are less known for this specific type of component compared to Standard or Rostra. Quality may be a consideration for a critical sensor like this.
Pro Tip: Some 1987 V2500 trucks may have a two-terminal switch that also controls the electric fuel pump, while others use a single-terminal sender just for the gauge. Always verify which one your truck has before ordering. The single-wire, bell-shaped unit is typically for the gauge.
| Part Type | Price Range |
|---|---|
| New Aftermarket | $14.34 - $73.13 |
| Shop Labor | $70 - $120 |
Frequently Asked Questions (FAQ)
Where is the oil pressure sender located on a 1987 GMC V2500?
The oil pressure sending unit is usually located on the top of the engine block, just behind the distributor and slightly to the driver's side. It can be difficult to reach without a special socket.
Can I replace the oil pressure sender myself?
Yes, this is a DIY-friendly job for most people with basic tools. The main challenge is accessing the sender at the back of the engine. You will likely need an oil pressure sender socket, a ratchet, and an extension. The replacement process involves unplugging the wire, unscrewing the old unit, and installing the new one.
🎬 See this walkthrough for replacing the sender on 1973-1987 trucksAre there any recalls for the oil pressure switch on a 1987 GMC V2500?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any recalls specifically for the oil pressure switch or sending unit on the 1987 GMC V2500.
What is the difference between an oil pressure switch and a sending unit?
A switch is a simple on/off device that triggers a warning light when pressure drops below a set point. A sending unit (or sender) is a variable resistor that sends a changing signal to a gauge, showing the actual pressure level. Your 1987 V2500 with a factory gauge uses a sending unit.
Helpful Videos
Technical Specifications
The sending unit for models with a gauge is typically a canister-style, single-wire variable resistor calibrated for a 60 PSI gauge.
