Guide to the 1987 GMC V2500 Power Steering Pump
Everything you need to know to replace the power steering pump on your classic GMC truck.
- A whining noise that gets louder when turning is the most common symptom of a failing pump.
- You MUST use a power steering pulley puller/installer tool to swap the pulley; it can be rented from most auto parts stores.
- Aftermarket quality varies; remanufactured brands like Cardone and BBB have mixed reviews, while PSC is a high-performance upgrade.
- Always flush the system with new fluid and bleed out all the air after installation to prevent damaging the new pump.
Signs of a Failing Power Steering Pump
A failing power steering pump on your Square Body GMC will give you clear warning signs. Because these trucks are heavy, a loss of power assist is noticeable immediately. Look out for these common symptoms:
- Whining or Groaning Noises: The most classic symptom is a loud whine that gets louder when you turn the steering wheel. This is often the first sign and is usually caused by low fluid levels from a leak or air getting into the system.
- Stiff or Heavy Steering: If turning the wheel, especially at idle or low speeds, suddenly requires a lot of muscle, the pump is likely getting weak and not producing enough pressure.
- Fluid Leaks: Finding reddish or light brown fluid puddles under the front of your engine is a sure sign of a leak. On these Saginaw-style pumps, leaks commonly happen from the main shaft seal, the housing O-rings, or between the pump body and the fluid reservoir.
- Squealing Belts: While this can just be a loose V-belt, a constant squeal can also be caused by a pump that is starting to seize.
Choosing the Right Aftermarket Pump
For a 1987 vehicle, new OEM parts are generally not available. Your choice will be between standard remanufactured pumps and new high-performance pumps.
Brand Quality Tiers
Standard Replacement (BBB Industries, Cardone): These are typically remanufactured pumps. They are the most affordable option and widely available. However, owner feedback across many forums shows that quality can be inconsistent. It's not uncommon to receive a unit that is noisy out of the box or fails within a year. While they come with a warranty, you may risk having to do the job more than once. Choosing between these brands is less important than ensuring you buy from a retailer with a good warranty and easy return policy.
High-Performance (PSC Motor Sports): PSC offers new, not remanufactured, high-performance pumps. These are a significant upgrade, designed to displace more fluid per revolution, which is ideal for trucks with larger tires or those that operate at low RPMs. Owners who have upgraded to PSC pumps, especially on trucks with hydroboost brakes and larger tires, report an end to recurring pump failures. This is a premium option for those who want maximum reliability and improved steering performance, especially under heavy use.
Cost Comparison for 1987 GMC V2500 Power Steering Pumps
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard Remanufactured) | $79.89 - $159.99 |
| New Aftermarket (High-Performance) | $325.00 - $400.46 |
| Shop Labor | $150 - $350 |
Cost estimates are for reference only and do not include taxes, fees, or the cost of new fluid and hoses.
Known Issues, Recalls, and Service Bulletins
For a vehicle of this age, specific recalls or Technical Service Bulletins (TSBs) for the power steering pump are not common. Searches of the NHTSA database did not find any active recalls for the hydraulic power steering pump on the 1987 GMC V2500. Any major recalls for GM power steering in recent years have been for modern electric power steering (EPS) systems on much newer vehicles. However, a general GM bulletin notes that contamination in the power steering system can cause issues, and recommends flushing the entire system when replacing any single component.
Frequently Asked Questions (FAQ)
Do I need to replace the pulley or reservoir?
Most aftermarket pumps come with a new reservoir but do not include the pulley. You will need to reuse your original pulley by swapping it over with the special puller/installer tool. Always inspect your old pulley for cracks or damage before reusing it.
Why is my new power steering pump whining?
The most common cause of whining from a new pump is air trapped in the system. After installation, you must bleed the system properly. With the engine off and the front wheels lifted off the ground, fill the reservoir and turn the steering wheel fully from lock to lock at least 20 times. Top off the fluid, then start the engine and repeat until the pump is quiet. If noise persists, it could indicate a faulty pump.
What kind of fluid should I use?
For these older GM trucks, a standard, high-quality power steering fluid is sufficient. Always check the bottle to ensure it's compatible with GM vehicles. Do not use automatic transmission fluid (ATF) unless specifically called for. Flushing the system with fresh, clean fluid is critical to the lifespan of your new pump.
Does my truck have a Hydroboost system?
Some heavy-duty trucks, especially those with diesel engines or higher GVWR, are equipped with a Hydroboost brake system that uses pressure from the power steering pump to assist the brakes. These systems require a specific pump with a second, smaller return port on the reservoir. Be sure to check your vehicle before ordering to ensure you get the correct part.
Technical Specifications

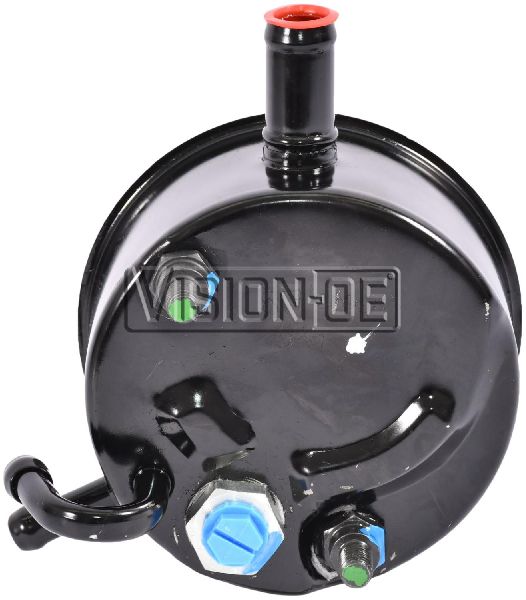

The 1987 GMC V2500 uses a Saginaw P-series style pump. Key variations depend on whether the vehicle is equipped with a standard vacuum brake booster or a Hydroboost system, which requires a pump with a second fluid return port on the reservoir.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
