Transmission Filter Kit Guide for the 1987-1992 Cadillac Brougham
Keep your classic Brougham's transmission shifting smoothly by choosing the correct filter kit.
- You must identify your transmission (TH200-4R or TH700R4) before buying a kit, as they are different.
- Symptoms like gear slipping, whining noises, and a burning fluid smell point to a clogged filter needing immediate attention.
- Premium aftermarket brands like ACDelco, Wix, and ATP are highly recommended for their quality filter media and superior gaskets.
- Changing the filter is messy but critical preventative maintenance that can save you from a costly transmission failure.
The Most Important Step: Identify Your Transmission
Before ordering a transmission filter kit for your 1987-1992 Brougham, you MUST know which transmission your car has. Cadillac used two different 4-speed automatic transmissions during this period, and they use different filters. Ordering the wrong one is the most common mistake.

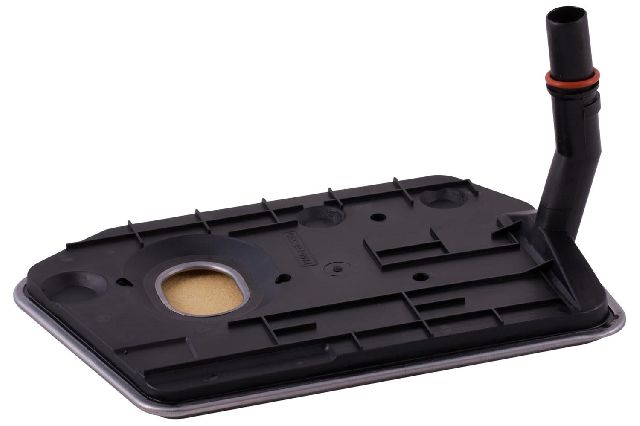

- 1987-1990 Models: Most Broughams from this era, typically with the 5.0L Oldsmobile V8 engine, 🎬 See this maintenance guide for the THM 200-4R transmission. are equipped with the GM THM 200-4R transmission.

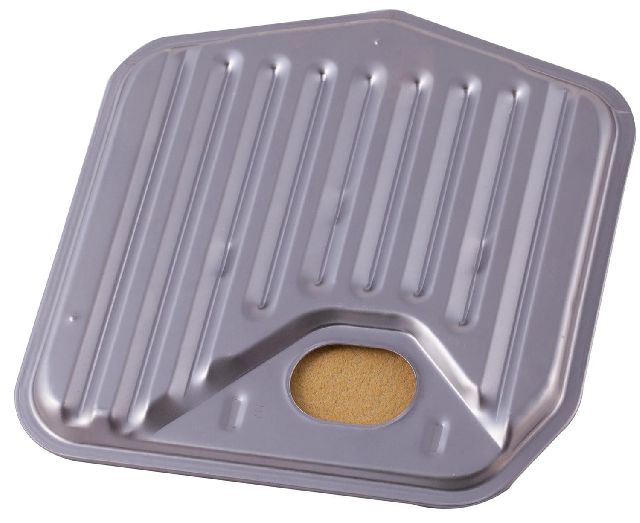

- 1990-1992 Models: Broughams from these years, especially those with the 5.0L or 5.7L Chevrolet V8 engines, 🎬 Watch: Step-by-step fluid and filter change for the 700R4. came with the GM THM 700R4 (also known as the 4L60).
Check the shape of your transmission pan to be certain. The 700R4 pan is mostly square, while the 200-4R pan is more rectangular with a tapered corner. Counting the pan bolts is another way to verify.
Symptoms of a Clogged Transmission Filter
If your Brougham is experiencing transmission issues, a clogged filter is a likely culprit. Watch for these signs:
- Shifting Problems: You may feel a delay when moving the shifter from Park to Drive. Shifts might become harsh, or the transmission may feel like it's slipping between gears.
- Whining or Buzzing Noises: A whining sound that changes with engine RPM can be a sign that the transmission pump is struggling to pull fluid through a blocked filter.
- Sluggish Acceleration: The car may feel weak or slow to respond, even though the engine is running fine. This happens when the transmission can't get enough fluid pressure to transfer power effectively.
- Burning Smell: A burnt toast or chemical smell indicates the transmission fluid is overheating, a common result of restricted fluid flow. 🎬 Watch: See these common symptoms of a clogged filter in action.
Choosing the Right Aftermarket Filter Kit
For a classic vehicle like the Brougham, aftermarket parts offer excellent value. However, quality varies between brands, especially concerning the filter media and the pan gasket. A poor-quality gasket can lead to frustrating leaks.
Brand Quality Tiers
Tier 1: Premium Quality
- ACDelco: As General Motors' own parts brand, ACDelco kits are essentially original equipment quality. They are a trusted, reliable choice for fit and function.
- Wix: A highly respected filter manufacturer known for excellent filtration media and build quality. They are a top choice among professional mechanics.
Tier 2: Reputable Aftermarket
- ATP (Automatic Transmission Parts): A brand that specializes in transmission components. ATP kits are well-regarded, often praised for their high-quality, leak-resistant pan gaskets.
Tier 3: Economy Brands
- Pioneer Cable, Premium Guard: These brands provide a functional, budget-friendly option. While they meet basic requirements, the filter media and gasket material may not be as robust as premium brands.
Pro Tip: Gasket Matters
The kit will come with a new pan gasket. Some are made of cork, while others are rubber or a fiber composite. Many mechanics prefer rubber or composite gaskets as they are less prone to cracking and can provide a better, more durable seal. Kits from brands like ATP are known for their quality gaskets.
Frequently Asked Questions
How often should I change the transmission filter?
For a vehicle of this age, a good rule of thumb is to change the transmission fluid and filter every 30,000 to 60,000 miles, or every 2-4 years, as part of preventative maintenance. If you notice any symptoms of a clogged filter, you should service it immediately.
What kind of transmission fluid does my Brougham need?
Both the 200-4R and 700R4 transmissions in this vehicle use DEXRON-type Automatic Transmission Fluid (ATF). Always check your owner's manual or a service guide for the specific type (e.g., DEXRON-II, DEXRON-III/MERCON) and use a quality fluid.
Is replacing the filter a DIY job?
Yes, for a mechanically inclined owner. The process involves draining the fluid by dropping the transmission pan, which is very messy. You will need a large drain pan, sockets, a scraper for the old gasket, and a torque wrench. If you are not comfortable with this, a repair shop can perform the service in about 1-2 hours.
Should I replace the small seal in the transmission?
The filter neck pushes into a small rubber or metal seal inside the transmission. Most kits include a new one. Removing the old seal can be difficult without a special tool and you risk scratching the aluminum bore. Many experienced mechanics will inspect the old seal and reuse it if it is not damaged or leaking to avoid causing problems.
Helpful Videos
Technical Specifications
Kit contains one transmission filter and one pan gasket. Verify transmission type before ordering: THM 200-4R (1987-1990) or THM 700R4/4L60 (1990-1992).
