1987-1994 Dodge B250 Headlight Switch: An Owner's Guide
Having trouble with flickering headlights or dead dash lights? Your headlight switch is the likely culprit.
- Headlight switch failure is extremely common on 1987-1994 Dodge B250s due to the lack of factory relays.
- Symptoms include flickering lights, dead dash lights, and a switch that feels hot.
- New aftermarket parts from brands like Standard Ignition or Rostra are the recommended fix over a risky used part.
- Consider adding a dedicated ground wire to the new switch during installation to improve longevity.
Is Your Headlight Switch Failing? Common Symptoms
The headlight switch on the 1987-1994 B250 is a known weak point. Because all headlight power runs through it, the switch generates significant heat, which can cause it to fail over time. If you notice any of these signs, your switch is likely on its way out.
- Flickering or Intermittent Headlights: Your headlights or dash lights may flicker, or cut out entirely while driving. Jiggling the switch might make them come back on temporarily.
- Lights Won't Turn On: You might pull the switch and nothing happens, or only the parking lights work but not the headlights.
- Dash Lights Are Out: A common failure is for the headlights to work but the instrument panel lights to fail completely.
- Switch is Hot to the Touch: After driving with the headlights on, the switch knob or the dash area around it may feel very warm. This is a clear sign the switch is overheating and will eventually fail.
- Melted Connector: When you remove the old switch, you may find that the plastic electrical connector plugged into the back is melted or shows signs of scorching from heat.
Known Issues for the Dodge B250
There are no active recalls or Technical Service Bulletins (TSBs) from Dodge for the headlight switch on this specific van, primarily due to its age. However, the issue of the switch overheating is widely documented by owners. The core problem is the lack of factory headlight relays, which puts too much electrical load on the switch.
Choosing the Right Aftermarket Headlight Switch
Since new original equipment (OEM) switches from Mopar are no longer available for this van, your only option is a new aftermarket part. While a used switch from a salvage yard is a possibility, it's a risky choice as it will have the same original design flaw and an unknown amount of wear.
The two main brands available are good-quality aftermarket replacements:
- Standard Ignition (SMP): Standard is a large, well-regarded manufacturer of aftermarket electrical parts. They are known for producing reliable components that meet or exceed original specifications and are a trusted choice in the repair industry.
- Rostra Powertrain: Rostra is a US-based manufacturer with quality certifications for its facilities. While they are widely known for transmission electronics, they also produce a range of other electrical components like switches and sensors.
Both brands offer a dependable solution. The choice between them often comes down to price and availability.
Pro Tip: Improve Reliability During Installation
A common modification performed by owners is to add a dedicated ground wire to the body of the new headlight switch. These vans can have poor grounding over time, which contributes to electrical resistance and heat. Running a new ground wire from the switch casing to a clean spot on the metal chassis behind the dash can improve the switch's lifespan.
Headlight Switch Replacement Cost
Replacing the headlight switch is a manageable DIY job for those comfortable with basic tools. The main cost will be the part itself. If you take it to a repair shop, expect to pay for about one hour of labor.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Headlight Switch | $35 - $60 |
| Shop Labor | $100 - $150 |
| Total Estimated Cost (At a Shop) | $135 - $210 |
Frequently Asked Questions
Is it difficult to replace the headlight switch on a B250?

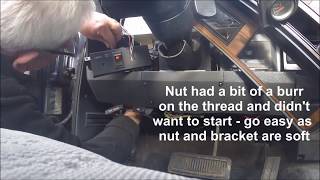

No, but it requires some patience. You must remove the plastic dash bezel that surrounds the instrument cluster to get access to the switch. The switch knob is released by pressing a small spring-loaded button on the switch body itself, which you access from under the dash. After that, a retaining nut is removed and the switch can be unplugged from behind. 🎬 See how to release the switch knob and retaining nut. The difficulty is about a 2 out of 5.
🎬 Watch this B250-specific walkthrough to see the dash removal process.Why do my dash lights get dim or bright when I rotate the switch knob?
This is a normal function. The headlight switch includes a built-in rheostat (a variable resistor) that controls the brightness of the instrument panel lights. Rotating the knob adjusts their intensity. However, in older Dodge trucks, running the dash lights at a dim setting can cause the rheostat inside the switch to generate more heat, accelerating its failure.
🎬 Learn how to upgrade your dash bulbs while the switch is out.Can a bad headlight switch drain my battery?
It is possible, but not common. If the switch fails internally and creates a short circuit that keeps the lights on even when the switch is in the "off" position, it could drain the battery. More often, the switch simply fails to make a connection, preventing the lights from turning on at all.
My headlights work but my high beams don't. Is that the switch?
It could be, but the problem is more likely the dimmer switch. The main headlight switch powers the circuit, but a separate dimmer switch (often part of the multifunction lever on the steering column) toggles between the low and high beam filaments. If only the high beams don't work, investigate the dimmer switch and bulbs first.

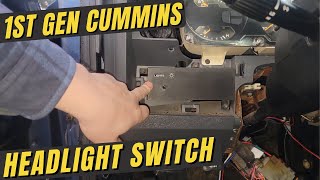

Helpful Videos
Technical Specifications
Pull-style dash-mounted switch with integrated instrument panel dimmer rheostat.
