Dodge Shadow Engine Coolant Bypass Hose: A Complete Guide (1987-1994)
This small, hidden hose is a common source of coolant leaks that can lead to serious engine overheating in your Dodge Shadow.
- Verify your engine (2.2L, 2.5L, or 3.0L V6) before ordering, as the bypass hose is different for each.
- A failing bypass hose is a serious issue; do not drive a vehicle that is actively leaking coolant or overheating.
- It is highly recommended to replace this hose as preventative maintenance any time the water pump is replaced.
- Choose a quality, pre-molded aftermarket hose from a brand like Gates or Dayco to ensure proper fit and longevity.
Is Your Dodge Shadow Leaking Coolant? Check This Hose.
If you're finding puddles of coolant under your car or smelling a sweet, syrupy scent after driving, a failing engine coolant bypass hose is a likely culprit. On the 1987-1994 Dodge Shadow, this small rubber part is a common failure point due to its age and constant exposure to heat and pressure. Because it is often tucked away under other engine components, a leak can be hard to pinpoint but can cause major problems like engine overheating.
Critical Failure Warning
A complete failure of the bypass hose will cause rapid coolant loss. If you see the temperature gauge spike into the red or steam coming from the engine, pull over immediately and shut off the engine to prevent catastrophic damage like a blown head gasket.
Choosing the Right Aftermarket Bypass Hose
For a vehicle of this age, original Mopar parts are typically discontinued. Fortunately, the aftermarket offers excellent, high-quality replacements. The most important factor is getting a molded hose specifically designed for your Shadow's exact year and engine (2.2L, 2.5L, or 3.0L V6), as the parts are different. Do not use a universal or straight hose, as it can kink and block flow.
Brand Quality Tiers
When choosing a new hose, you'll find a few trusted brands. For a critical part like this, it's best to stick with reputable names.
- Top Tier (Gates, Dayco): Both Gates and Dayco are leading manufacturers of automotive hoses and are considered OEM-equivalent or better in quality. Gates is often an original equipment supplier for many car brands. Dayco is also highly regarded, with some mechanics noting their hoses can be slightly thicker. You cannot go wrong with either brand; choose the one that is readily available and correctly molded for your engine.
- Standard Tier (ACDelco): While a huge name in auto parts, ACDelco is the OEM supplier for General Motors. For your Dodge, an ACDelco hose is likely a high-quality part rebranded from another manufacturer like Gates or Dayco. It is a reliable choice if available.
Pro Tip: Replace It with the Water Pump
Accessing the bypass hose can be difficult, sometimes requiring the removal of brackets for the alternator or A/C compressor. Because of the high labor involved, it is standard practice to replace the bypass hose whenever you replace the water pump, even if it isn't leaking yet. The low cost of the hose is cheap insurance against doing the job twice.
Cost to Replace a Dodge Shadow Bypass Hose
The cost is primarily driven by labor due to the part's location. The part itself is inexpensive.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Bypass Hose (Part Only) | $9.95 - $93.36 |
| Shop Labor | $150 - $250 |
| Total Estimated Cost | $160 - $345 |
Note: Labor costs are an estimate and can vary by region and the specific engine in your Shadow.
Frequently Asked Questions (FAQ)
Can I replace just the one leaky hose?
Yes, but it's wise to inspect all other coolant hoses at the same time. Rubber parts degrade with age, so if the bypass hose has failed, the radiator and heater hoses may not be far behind. If they feel hard, brittle, or spongy, plan to replace them soon.
What type of coolant should I use for my Dodge Shadow?
For this era of Chrysler vehicle, a conventional green IAT (Inorganic Additive Technology) antifreeze is generally the correct type. Always check your owner's manual or a reliable service guide to be sure. Using the wrong type of coolant can cause damage to the cooling system.
My car is overheating but I don't see a leak. Could it still be the bypass hose?
It's possible, but less likely. A slow leak from the bypass hose might evaporate on the hot engine before it drips to the ground. However, overheating without a visible leak is more often caused by a stuck thermostat, a bad water pump, or a clogged radiator. A pressure test of the cooling system is the best way to find a hidden leak.
Why is there such a large price range for the hose?
The price can vary based on the specific engine in your Shadow. The hose for the Mitsubishi-sourced 3.0L V6, for example, may be a more complex shape or a different part entirely than the one for the more common Chrysler 2.2L/2.5L 4-cylinder engines, leading to a higher manufacturing cost.

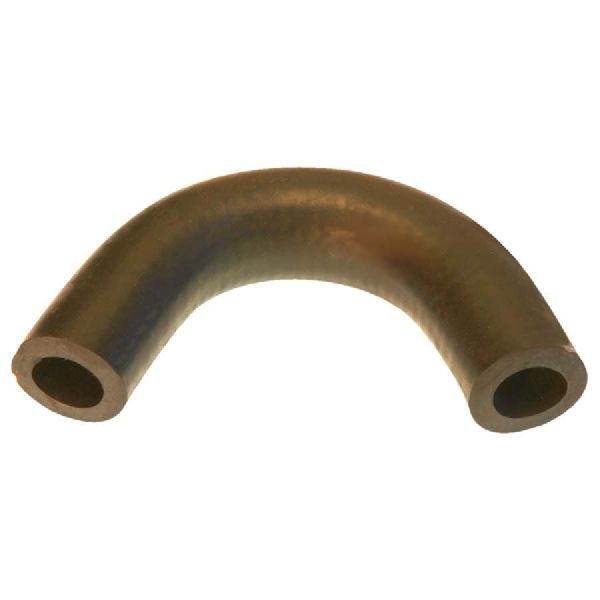

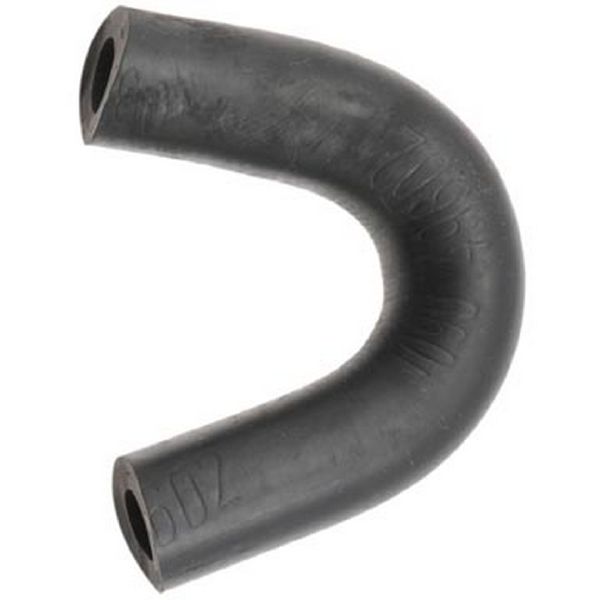

Technical Specifications
OEM Part Numbers: 4012595 4095227
Material: EPDM Rubber. Type: Molded. Function: Allows coolant circulation during engine warm-up when the thermostat is closed.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
