Replacing the Rack and Pinion Bellows on Your 1987-1994 Dodge Shadow
Protect your steering rack from expensive damage by replacing torn or cracked bellows boots.
- A torn bellows boot is a minor part that protects a major, expensive component—the steering rack.
- Inspect the boots at every oil change for cracks or tears. Early detection saves money.
- If one boot is bad, replace both. The other side is the same age and will likely fail soon.
- Ignoring a torn boot will lead to steering rack failure, a much more expensive and labor-intensive repair.
Symptoms of a Bad Rack and Pinion Bellows
The main sign of a bad bellows boot is visible damage. Since this is a protective part, you won't feel a difference in steering until it's too late and the steering rack itself is damaged. You or your mechanic should inspect the boots during every oil change.
- Visible Cracks or Tears: The rubber becomes brittle with age and can crack, split, or get punctured by road debris. This is the most obvious sign of failure.
- Grease or Fluid Buildup: The boots themselves don't hold fluid, but they cover greased parts. If you see wetness, it could be grease from the inner tie rod joint or, more seriously, power steering fluid leaking from a failed internal rack seal. A torn boot allows dirt to get in and destroy the seals, causing leaks.
- Steering Noises: Clunking or knocking noises when turning can be a late-stage symptom. This usually means the boot has been torn for a while, and the unprotected inner tie rod or steering rack is now worn out and has excessive play.
Choosing the Right Aftermarket Bellows Kit
For a vehicle like the 1987-1994 Dodge Shadow, new OEM parts are likely unavailable. The aftermarket provides several good options. Since the part itself is simple, quality is mostly about the durability of the rubber and the quality of the included clamps.
| Brand Tier | Brands | Our Take |
|---|---|---|
| Good | Mevotech | Mevotech offers a balance of affordability and decent quality for daily driving. While some users have varied experiences depending on the specific part, for a simple boot, they are a cost-effective choice. |
| Better | Beck Arnley | Beck Arnley often sources parts from various manufacturers, sometimes even the original suppliers. They have a reputation for good quality, and for a part like this, they are a reliable option that often meets or exceeds OEM specifications. |
| Best | Delphi | Delphi has a long history as an original equipment manufacturer and is known for durable, reliable parts that are engineered to high standards. Choosing Delphi often means you are getting a part that is on par with the original factory component. |
A Critical, Inexpensive Part
A torn bellows boot is a small problem that quickly becomes a big one. Replacing the entire steering rack because of a failed boot is a common and expensive repair. The cost of a new bellows kit is tiny compared to a new steering rack and the labor to install it. Do not delay this repair.
Frequently Asked Questions
Do I need a wheel alignment after replacing the bellows?
If you only replace the bellows and are careful not to change the position of the tie rod on its threads, you may not need an alignment. However, the most common replacement method involves unscrewing the outer tie rod end. It is highly recommended to get an alignment to ensure proper handling and prevent uneven tire wear. If you replace the inner or outer tie rods at the same time, an alignment is absolutely required.
What happens if I don't replace a torn boot?
Driving with a torn boot allows dirt, sand, and water to contaminate the inner workings of your steering rack. This debris acts like sandpaper, destroying the seals and smooth surfaces inside the rack. This will lead to a power steering fluid leak and eventually complete failure of the steering rack, which is a very expensive repair.
Should I replace the boots in pairs?
Yes. The rubber on both sides of your car has been exposed to the same age and conditions. If one boot has failed, the other is likely weak and will fail soon. Replacing both at the same time saves you from doing the same job twice and paying for labor again in the near future.
Are there any recalls for the Dodge Shadow steering system?
Yes, there was a recall for some 1992 Dodge Shadow models concerning a steering column coupling bolt that could break and cause a loss of steering control (NHTSA Campaign ID: 92V015000). There were also recalls for other model years related to the steering wheel separating from the column. However, there are no specific recalls for the rack and pinion bellows themselves.
Technical Specifications

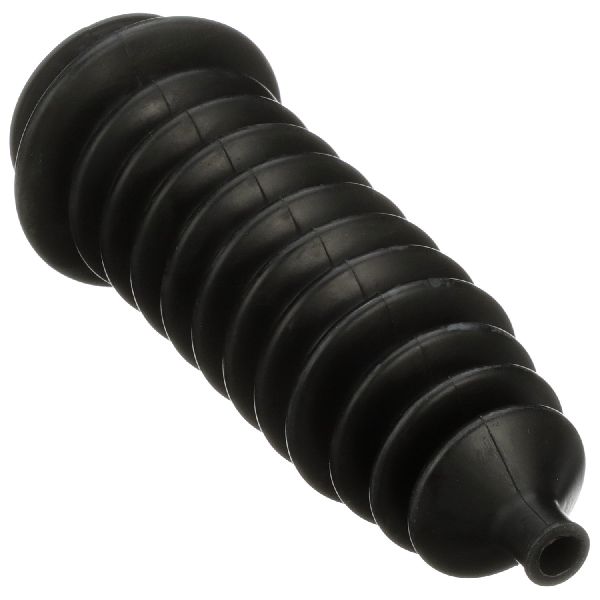

Material: Rubber or Thermoplastic. Kit typically includes two bellows and mounting clamps/zip ties.
