Ford Thunderbird Engine Cooling Fan Clutch Guide (1987-1994)
Everything a Thunderbird owner needs to know about replacing a failing engine cooling fan clutch.
- The main symptom of failure is engine overheating at idle that gets better at highway speeds.
- OEM Motorcraft parts are discontinued; you will be buying an aftermarket brand.
- Hayden and GMB are reputable aftermarket choices; Hayden is known for performance while GMB is known for quiet reliability.
- Always confirm you are buying a 'reverse rotation' clutch, as this is required for the Thunderbird.
Is Your Thunderbird's Fan Clutch Failing?
A bad fan clutch is a common cause of overheating on the 1987-1994 Thunderbird, especially in stop-and-go traffic or at idle. When the clutch fails, it can either get stuck on or, more commonly, fail to engage. If it fails to engage, the fan won't spin fast enough to cool the engine, leading to a rising temperature gauge. If it gets stuck on, you'll hear a loud, constant roaring sound from the engine bay, and you might notice a loss of power and worse fuel economy.
Symptoms of a Bad Fan Clutch
- Engine Overheating at Low Speeds: The most common symptom. The temperature gauge climbs when you're idling or in traffic but may return to normal at highway speeds.
- Loud Roaring Noise: A fan clutch that's stuck engaged will make the fan sound like a jet engine all the time, not just when the engine is hot.
- Poor A/C Performance at Idle: The A/C condenser needs airflow to work properly. A slow-spinning fan at a stoplight means your A/C will blow warm air.
- Visible Fluid Leaks: Oily streaks radiating from the center of the fan clutch indicate the internal silicone fluid has leaked out, meaning it can no longer function correctly.
- Fan Spins Too Freely: Pro Tip: With the engine off and cool, try to spin the fan blade by hand. It should have some resistance and stop within a couple of rotations. If it spins freely for more than a few turns, the clutch is likely bad. If it doesn't spin at all, the bearing is seized.
Choosing the Right Aftermarket Fan Clutch
Original Ford (Motorcraft) fan clutches for this generation of Thunderbird have been discontinued, making aftermarket parts the only option for a new replacement. Fortunately, several reputable brands offer quality replacements. Aftermarket quality can be inconsistent, but brands like Hayden and GMB have a generally positive reputation among mechanics and DIYers.
| Brand Tier | Brands | Notes |
|---|---|---|

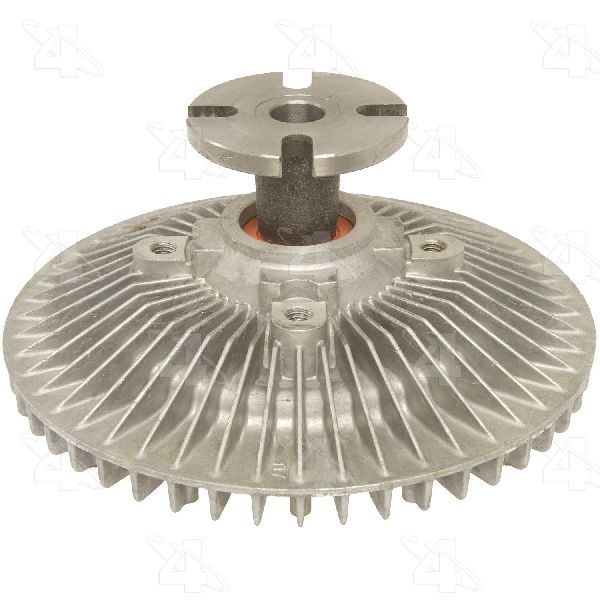

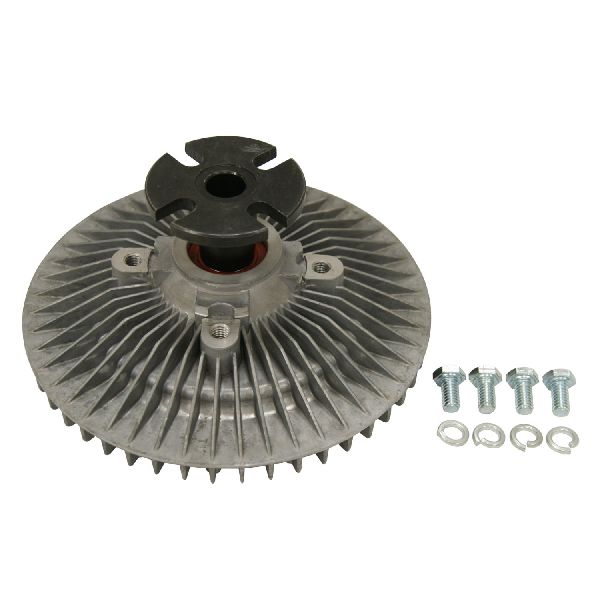

| Reputable Aftermarket | Hayden, GMB | Hayden is a well-known cooling parts manufacturer, often recommended for trucks and cars that see heavy use. GMB is known for precision manufacturing and quiet, reliable operation. These are solid choices for a dependable repair. |

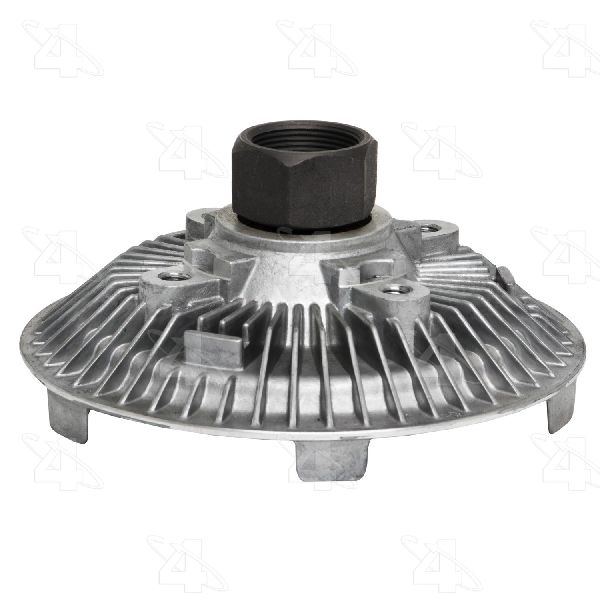

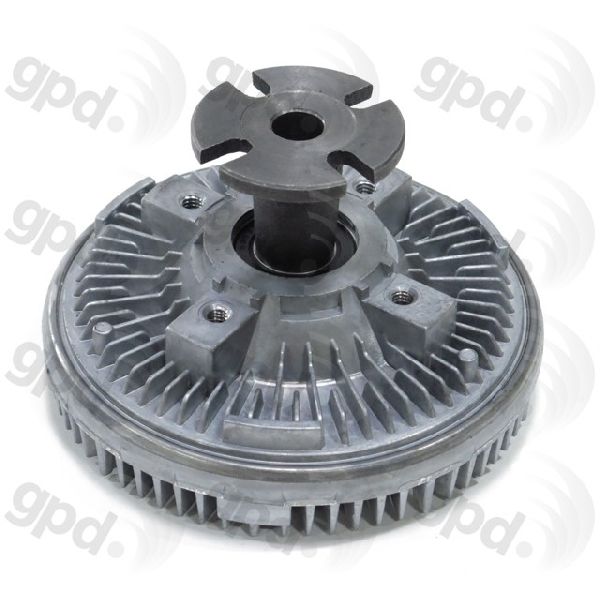

| Standard Aftermarket | Four Seasons, US Motor Works, Global Parts | These brands offer a cost-effective solution. While some users have had success, others have noted inconsistencies. They can be a good value, but may not have the same long-term reliability as the top-tier brands. |
Frequently Asked Questions
Can I drive my Thunderbird with a bad fan clutch?
It is not recommended. If the clutch has failed and isn't cooling the engine, you risk severe engine damage from overheating, such as a blown head gasket. If the clutch is seized, it puts constant strain on the water pump bearing and reduces fuel economy. Short trips may be possible if you monitor the temperature gauge closely, but you should replace it as soon as possible.
Is a heavy-duty or standard-duty clutch better for my Thunderbird?
For a stock 3.8L V6 or 5.0L V8 Thunderbird, a standard-duty thermal clutch is sufficient and matches the original design. A heavy-duty clutch may engage more aggressively and create more noise, which is unnecessary unless you have significantly modified the engine for higher power output or use the vehicle for towing (which is uncommon for a Thunderbird).
Are there any recalls for the fan clutch on my Thunderbird?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from Ford or the NHTSA for the engine cooling fan clutch on the 1987-1994 Ford Thunderbird.
How do I know for sure the fan clutch is the problem?
Overheating can also be caused by a bad thermostat, a clogged radiator, or a coolant leak. If your car overheats mainly at idle but is fine on the highway, the fan clutch is a primary suspect. Perform the hand-spin test when the engine is cold and observe the fan's behavior when the engine is hot to confirm your diagnosis before buying parts.
Technical Specifications
OEM Part Numbers: F2TZ-8A616-B
Thermal, Reverse Rotation
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
