Chevrolet G10 (1987-1995) Engine Oil Pressure Switch & Sender Guide
Understanding the oil pressure switch in your Chevy G10 is key to preventing serious engine trouble.
- A zero reading on the gauge or a flickering light are the most common symptoms of a bad oil pressure switch.
- Always verify the actual engine oil level and listen for engine noise before assuming the switch is the only problem.
- Your G10 may have a switch (for a light) or a sender (for a gauge); confirm which one you need before buying.
- Reputable aftermarket brands like Standard Ignition are a reliable choice for this repair.
Is Your G10's Oil Gauge Acting Up?
A faulty oil pressure switch is a common issue on older vehicles like the 1987-1995 Chevrolet G10. 🎬 Watch a guide on replacing sending units in older Chevy models. The symptoms can be alarming, but often the fix is simple. This component can fail, causing incorrect readings on your dashboard. It might show zero pressure even when the engine has plenty, or it might flicker, causing unnecessary worry. It's important to figure out if the problem is the switch or actual low oil pressure before major engine damage occurs.
Symptoms of a Failing Oil Pressure Switch
When this small sensor starts to go bad, your van will give you a few clear signals. Here’s what to look for:
- Oil Pressure Gauge Reads Zero: The most common sign is the gauge suddenly dropping to zero. If the engine sounds normal and isn't making any new ticking or knocking noises, the sending unit is the likely culprit.
- Flickering Oil Light or Gauge: The oil light on your dash may flicker, especially at idle when the engine is warm. The gauge needle might also bounce around. This happens because the failing switch is on the verge of tripping the low-pressure warning.
- Gauge Maxed Out: Less commonly, the switch can fail in a way that sends a constant maximum signal, causing the gauge to read high all the time.
- Visible Oil Leak: The switch itself can develop a leak. You might see oil residue on or around the sensor, which is often located near the distributor or by the oil filter.
Don't Ignore Oil Warnings
Never assume a warning is just a bad sensor. If your oil light comes on, especially if you hear any engine noise like ticking or knocking, pull over safely and turn off the engine immediately. Check your oil level first. Driving with no oil pressure can destroy an engine in minutes.
Choosing the Right Aftermarket Switch
For a vehicle like the '87-'95 G10, aftermarket parts are widely available and often provide good value. The original AC Delco parts may be harder to find or more expensive. Here’s a look at the available brands:
- Standard Ignition (Standard Motor Products): This is a well-regarded aftermarket brand with a long history. They are known for making quality electronic parts that often meet or exceed original equipment (OE) standards. Many professional mechanics trust and use their products. Standard's regular red-box line is generally considered good quality, while their T-series (often in a green box) is a more budget-focused line with potentially lower quality.
- Rostra Powertrain: Rostra is known for manufacturing a wide range of automotive electronic components, including sensors and switches, often for transmission applications. They are an IATF-16949 & ISO-9001 certified manufacturer and supply parts to original equipment manufacturers. User reviews for their various electronic parts are generally positive, citing good quality and fit.
- Global Parts: Information on this specific brand is less common in forums and reviews, suggesting it may be a more budget-oriented or private-label option. When choosing a brand with less public feedback, inspect the part for quality and ensure it comes with a good warranty.
Pro Tip: OEM vs. Aftermarket
For simple electronic parts like an oil pressure switch on this generation of Chevy van, a quality aftermarket brand like Standard Ignition is often a reliable and cost-effective choice. Some mechanics even report that aftermarket brands can be better than modern OEM service parts, which may also be sourced from various global manufacturers. The key is to stick with a reputable brand.
Cost of a New Oil Pressure Switch (1987-1995 Chevrolet G10)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Switch/Sender | $14.34 - $73.13 |
| New OEM (AC Delco) | $75 - $95 |
| Shop Labor | $50 - $120 |
Note: Prices are estimates and can vary based on location, supplier, and the specific part required for your van's engine and gauge configuration.
Frequently Asked Questions
Where is the oil pressure switch on my G10 van?

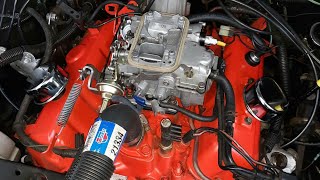

On many Chevy V6 and V8 engines from this era, there are two possible locations. The most common is at the top of the engine block, just behind the distributor cap. Another possible location is next to the oil filter on the side 🎬 Learn how to replace the switch on a Chevy V6 engine. of the engine block. It's important to visually confirm the location on your specific engine before ordering a part.
Can I replace the oil pressure switch myself?
Yes, this is a DIY-friendly job for most home mechanics. It typically requires basic hand tools and a special socket for oil pressure switches. 🎬 See the easy way to swap a sensor on a 5.7L engine. Access can be tight, especially for the location behind the distributor, but it does not usually require removing major components. Make sure to apply thread sealant if the new switch doesn't have it pre-applied.
Why are there so many different-looking switches for my van?
Your G10 could have a simple one-terminal switch for a warning light, or a larger, can-shaped three-terminal sending unit for an analog gauge. Some models used both. It is critical to order the part that matches what is currently on your engine to ensure it works with your dashboard and wiring. Always verify the part by looking at what's on your engine or providing your vehicle's VIN when ordering.
Are there any recalls for the oil pressure switch on the 1987-1995 G10?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls specifically for the engine oil pressure switch on the 1987-1995 Chevrolet G10.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19244500
Varies by application (switch for light vs. sending unit for gauge). Thread size and electrical connector type are key identifiers. The switch is typically located behind the distributor or near the oil filter.
