Dodge Dakota 1987-1995 Engine Timing Set Replacement Guide
Solving the common timing chain rattle in your first-generation 3.9L V6 or 5.2L V8 Dakota.
- Focus your search on parts for the 3.9L V6 or 5.2L V8 engines, as 4-cylinder models use a different system.
- A rattling noise from the front of the engine is the classic sign of a worn timing chain on these trucks.
- To permanently fix the rattle, you must install a timing chain tensioner along with the new chain and sprockets, as outlined in Chrysler's TSB.
- While the timing cover is off, it is highly recommended to also replace the water pump, front crank seal, and timing cover gasket.
Is Your Dakota's Engine Rattling?
A common issue on the 1987-1995 Dodge Dakota, especially with the 3.9L V6 and 5.2L V8 engines, 🎬 See a complete 3.9L timing and water pump replacement guide. is a distinct rattling or slapping noise coming from the front of the engine. This noise is often most noticeable at idle. The cause is typically a stretched timing chain. From the factory, these engines did not include a timing chain tensioner, which allows the chain to become loose as it wears. In 1997, Chrysler issued a Technical Service Bulletin (TSB 09-07-97) to address this noise by installing a new timing chain, sprockets, and a tensioner. If you hear this rattle, it's a clear sign your timing set is due for replacement.
Warning: Check Your Engine Before Ordering
This guide focuses on the 3.9L V6 and 5.2L V8 engines, which use a timing chain. Some early Dakotas were equipped with a 2.2L or 2.5L 4-cylinder engine. These 4-cylinder models use a different timing system (often a timing belt) and this guide does not apply. Always verify your engine size before purchasing parts.
Choosing the Right Aftermarket Timing Set
When replacing your timing set, you have several good aftermarket options. OEM parts for this repair are expensive and can be difficult to find. Aftermarket kits offer comparable or even superior quality at a much lower price. Many owners on forums recommend upgrading to a 'double roller' timing chain, which is stronger than the original 'silent' chain design.
Brand Quality Tiers
- Professional Grade (Best): Brands like Melling Select Performance and some higher-end Cloyes kits offer premium features. This can include billet steel sprockets or pre-stretched, heavy-duty double roller chains for maximum durability and precise timing. These are excellent choices for a performance build or for maximum peace of mind.
- OE-Quality Replacement (Better): Standard Melling, Cloyes, and INA kits are the workhorses of the industry. They meet or exceed original factory specifications and are trusted by professional mechanics. A standard kit from one of these brands is a reliable choice for a daily driver. Cloyes and Melling are frequently recommended for this specific truck.
- Economy (Good): Many kits are available that bundle the essential components at a very attractive price. While they may not have the advanced features of premium kits, they are designed to restore original function and will resolve issues like chain noise.
Pro Tip: Replace More Than Just the Chain
The timing set is a labor-intensive job. While you have the front of the engine disassembled, it is highly recommended to also replace the timing cover gasket, front crankshaft seal, and the water pump. 🎬 Watch a detailed video on replacing the timing cover and seals. Many kits are sold with these additional gaskets, and doing the job now will save you from having to do it all over again in the near future.
Estimated Replacement Costs
The cost of replacing the timing set can vary widely based on who does the work. The parts themselves are affordable, but the labor can be significant.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Timing Set (Parts Only) | $31.57 - $167.28 |
| Shop Labor | $476 - $698 |
| Total Professional Installation | $500 - $865+ |
Frequently Asked Questions (FAQ)
Do I really need the timing chain tensioner?
Yes. The official fix from Chrysler for the chain rattle includes adding a tensioner (Part No. 53021195AA). It was created specifically to solve the chain slack problem on these engines. Any quality repair should include installing one.
Is a 'double roller' chain better?
For most users, a standard replacement chain is perfectly adequate. However, many Dakota owners and mechanics recommend upgrading to a double roller chain set. They are stronger, stretch less over time, and are often included in performance-oriented kits from brands like Cloyes and Melling.
Can I replace the timing set myself?
This is a moderately difficult job that requires a good set of tools and mechanical knowledge. It involves draining the coolant, removing the fan, belts, radiator, water pump, and harmonic balancer before you can even access the timing cover. While it is feasible for an experienced DIYer, a novice should probably leave this job to a professional.

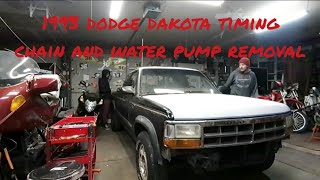

🎬 Watch this walkthrough of the water pump and chain removal.Will a bad timing chain cause a check engine light?
Yes, it can. If the chain stretches enough to affect the camshaft and crankshaft synchronization, it can trigger trouble codes related to misfires or cam/crank position sensors, illuminating the check engine light.
Helpful Videos
Technical Specifications
OEM Part Numbers: 53021195AA (Tensioner) 83507095 (Timing Chain and Sprocket Package) 53021057 (Gasket, Timing Chain Case)
The timing set for the 3.9L V6 and 5.2L V8 engines consists of one camshaft sprocket, one crankshaft sprocket, and a timing chain. A tensioner should be added during installation. The 3.9L V6 uses a 68-link silent chain. The 5.2L V8 uses a similar setup.
