Engine Coolant Bypass Hose Guide for 1987-1995 Nissan Pathfinder
Address hidden coolant leaks and prevent overheating in your first-generation Pathfinder by replacing this critical hose.
- The bypass hose is a common source of hard-to-find coolant leaks on the VG30 engine due to its hidden location.
- Symptoms include mysterious coolant loss, a sweet antifreeze smell, and potential engine overheating.
- Replacement is difficult due to its location under the intake manifold; it is not a simple DIY job for beginners.
- Always use a new, molded hose from a quality brand like Gates or Dayco and replace the clamps at the same time.
Is Your Pathfinder's Engine Coolant Bypass Hose Failing?
On a first-generation Nissan Pathfinder, rubber components are now decades old and prone to failure from constant heat and pressure. The engine coolant bypass hose is often overlooked but can be a common source of mysterious coolant loss. Because of its location, a small leak might evaporate before it ever drips onto the ground, making it hard to diagnose. 🎬 Watch this walkthrough of a difficult coolant leak repair. Ignoring a failing bypass hose can lead to significant coolant loss, engine overheating, and potentially severe engine damage.
Symptoms of a Failing Bypass Hose
- Mysterious Coolant Loss: You frequently have to top off the coolant reservoir, but you don't see any puddles under your truck.
- Sweet Smell: A distinct sweet smell of antifreeze may be noticeable around the engine bay, especially when it's hot.
- Visible Leaks or Stains: You might see dried, crusty white or colored residue on the engine near the intake manifold or water pump. In more severe cases, you'll see active dripping.
- Engine Overheating: If the hose fails completely, the rapid loss of coolant will cause the engine temperature gauge to spike, which is a critical situation.
Overheating Can Cause Severe Engine Damage
If you notice your temperature gauge climbing into the red, pull over and shut off the engine as soon as it is safe to do so. Driving an overheating engine can lead to warped cylinder heads or a blown head gasket, resulting in very expensive repairs.
Choosing the Right Aftermarket Bypass Hose
For a vehicle like the 1987-1995 Pathfinder, OEM parts can be difficult to find and may not offer a significant advantage over high-quality aftermarket options. The key is to choose a reputable brand that makes hoses specifically molded for your vehicle.

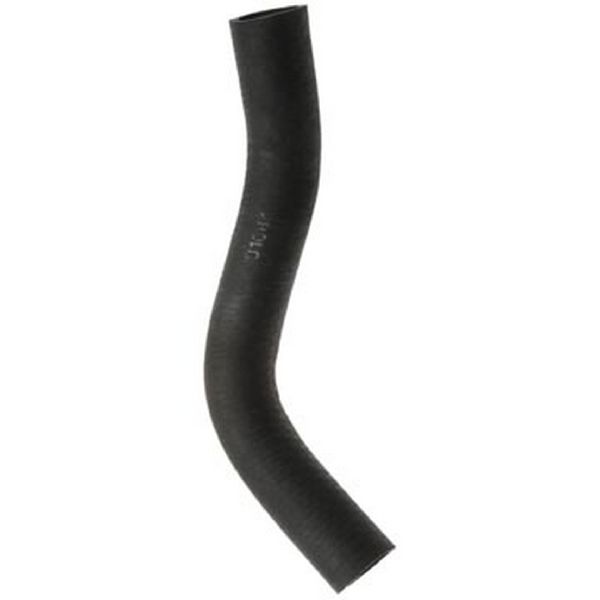

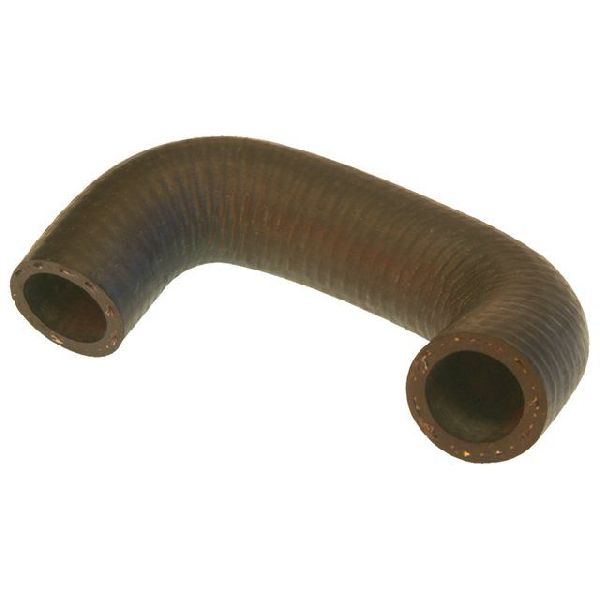

Brand Quality: Dayco vs. Gates
Both Dayco and Gates are well-known manufacturers of aftermarket hoses. General consensus among mechanics and DIYers often gives a slight edge to Gates for fit and material quality, sometimes being considered an "OEM equivalent" brand. However, both brands produce reliable hoses that will serve a classic Pathfinder well. Some users have noted that Dayco hoses can sometimes be thicker, while Gates may offer better cataloging and more precise fitment. Given the age of the vehicle, either brand is a solid choice over a generic, non-molded hose.

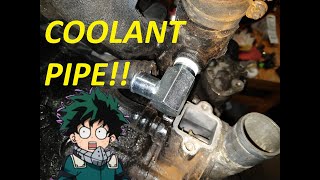

🎬 See how to replace a coolant pipe on this engine.Pro Tip: Replace Your Clamps
It is highly recommended to replace the hose clamps when you replace the hose. Old spring clamps can lose tension, and worm-drive clamps can corrode. New clamps are inexpensive and ensure a tight, leak-free seal.
Cost to Replace a 1987-1995 Pathfinder Engine Coolant Bypass Hose
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Dayco, Gates) | $20 - $39 |
| Shop Labor | $100 - $200 |
Note: Costs are estimates and can vary based on your location and the specific repair shop. The replacement is often bundled with other cooling system services.
Frequently Asked Questions (FAQ)
Where is the engine coolant bypass hose located on a 1987-1995 Pathfinder?

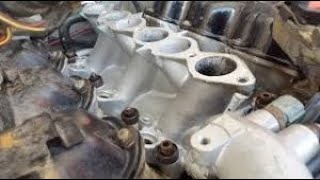

The bypass hose on the VG30 engine is notoriously difficult to access. It is a small, U-shaped hose located under the intake manifold, near the back of the engine. Replacement often requires removing the upper intake plenum 🎬 Watch this video for help removing the intake manifold plenum. and other components to gain access, which is why the labor cost can be higher than the part itself.
Can I use a generic hose instead of a molded one?
No, it is critical to use a molded hose designed for your Pathfinder. The bypass hose has specific bends to navigate a very tight space without kinking. A generic straight hose will likely collapse or kink, blocking coolant flow and causing the engine to overheat.
Are there any recalls for the cooling system on the 1987-1995 Pathfinder?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls for the engine coolant bypass hose or the cooling system in general for this generation of Pathfinder. Any failures today are due to the age and wear of the rubber components.
Should I replace anything else at the same time?
Yes. Because accessing this hose is labor-intensive, it is a perfect time to inspect or replace other nearby cooling components. This includes other small coolant hoses under the intake, the main radiator hoses if they are old, and the thermostat. Addressing these items at the same time can save you significant labor costs in the future.
Helpful Videos
Technical Specifications
OEM Part Numbers: 14055-V5010 14055-12P00
Molded EPDM rubber hose engineered to resist heat, ozone, and electrochemical degradation. Designed for the specific routing on the Nissan VG30i and VG30E engines.
