Engine Water Pump Replacement for 1987-1995 Nissan Pathfinder
Keep your Pathfinder's engine cool and prevent serious damage by understanding when and how to replace your water pump.
- On V6 models, the water pump is driven by the timing belt; they MUST be replaced together.
- A coolant leak from the 'weep hole' under the pump means it is failing and needs immediate attention.
- Use a high-quality aftermarket brand like Gates or GMB to avoid repeating this labor-intensive job.
- Verify if you need a part for a 4WD or RWD model, as they can be different.
Signs of a Failing Water Pump in Your Pathfinder
A bad water pump will almost always give you a warning sign before it fails completely. Ignoring these signs can lead to severe engine damage. Be on the lookout for these common symptoms:
- Coolant Leaks: If you see puddles of green or orange fluid under the front of your truck, it could be a water pump leak. The pump has a "weep hole" on the bottom; a small drip from here is a clear sign that the internal seal has failed and the pump needs to be replaced soon.
- Whining or Grinding Noises: A high-pitched whining or a low-pitched grinding sound coming from the front of the engine can indicate a failing water pump bearing. This noise may change with engine speed.
- Engine Overheating: If your temperature gauge climbs into the red, the water pump may not be circulating coolant effectively. This could be due to a broken internal impeller or a complete seizure of the pump.
- Wobbly Pulley: If you can see the fan or pulley wobbling while the engine is running (or feel play when the engine is off), the bearing is shot. This is a critical failure, and the vehicle should not be driven.
Critical for V6 Engine Owners (VG30E)
On the 3.0L V6 engine, the water pump is driven by the timing belt. Because of this, it is absolutely essential to replace the water pump whenever you replace the timing belt. The labor involved is nearly identical, and a failed water pump can destroy a new timing belt, forcing you to pay for the same expensive job twice.
Choosing the Right Aftermarket Water Pump
For a vehicle of this age, aftermarket parts are the most common and cost-effective choice. Quality is key, especially on the V6 where the pump is so labor-intensive to access. Here’s a breakdown of available brands:

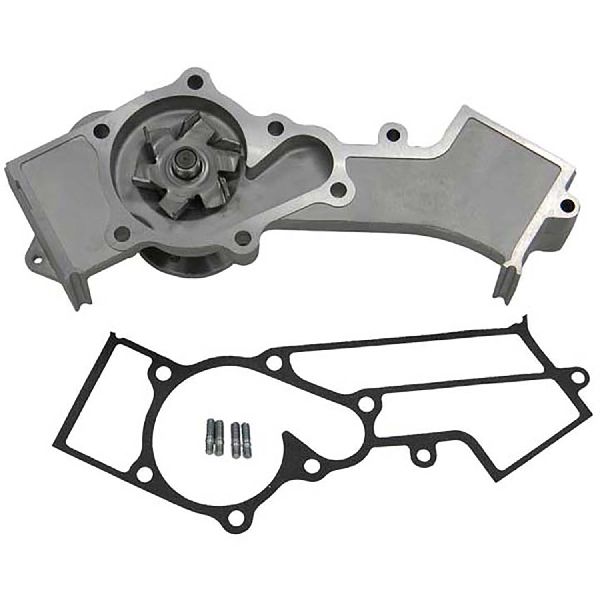

- Premium Tier (Gates, GMB): Both Gates and GMB are well-respected brands in the aftermarket. GMB is a known OEM supplier for many Japanese vehicles, and their parts are considered high-quality and reliable. Gates is famous for its timing belt kits, which often include a water pump. Choosing a kit from Gates that includes the timing belt, tensioner, and water pump is a smart move for any V6 Pathfinder owner. 🎬 See this walkthrough for replacing the timing belt and water pump.

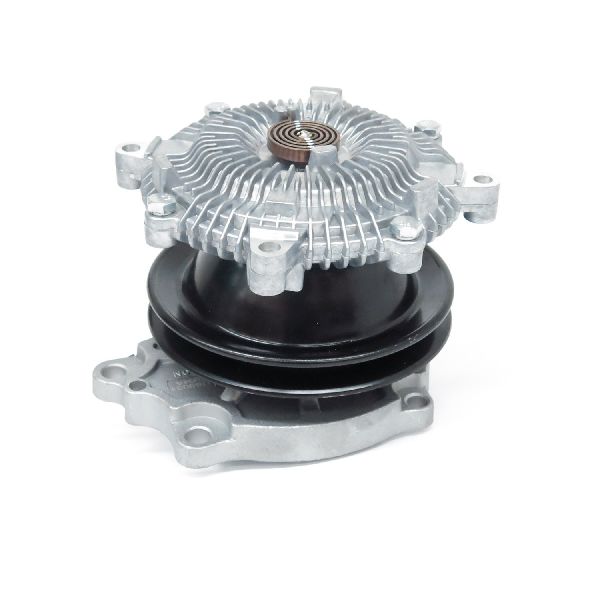

- Standard Tier (US Motor Works, other store brands): These pumps meet basic requirements and come at a lower price point. They can be a good value, but for a job as labor-intensive as the Pathfinder's V6 water pump, spending a little more for a premium brand is strongly recommended for long-term peace of mind. Some owners have reported premature failures with budget-friendly options.
Pro Tip: Check for 4WD vs. RWD Specific Parts
For the V6 engine, there can be different water pump models for 4-Wheel Drive (4WD) and Rear-Wheel Drive (RWD) vehicles. Always verify that the part you are ordering matches your Pathfinder's drivetrain to avoid installation issues.
Cost of Replacing a Pathfinder Water Pump
The cost varies significantly based on your engine (4-cylinder vs. V6) and whether you do the work yourself. The V6 is much more expensive due to the timing belt.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $62 - $98 |
| Shop Labor (V6 Engine) | $300 - $700+ |
| Total Professional Replacement (V6) | $375 - $787+ |
Frequently Asked Questions
Do I have to replace the timing belt with the water pump?
If you have the 3.0L V6 engine, yes, absolutely. The water pump is located behind the timing belt covers and is driven by the belt. It is standard practice to replace them together. Failure to do so is risky and can lead to much higher costs later.
Can I replace the water pump myself?
For the 2.4L 4-cylinder engine, it is a moderately difficult job for a DIY mechanic. For the 3.0L V6, it is a very difficult and time-consuming job due to the need to remove the timing belt. Mistakes during timing belt installation can destroy the engine. This job is best left to experienced mechanics.
🎬 Watch: A detailed look at the WD21 timing belt replacement process.Are there any recalls for the water pump on this Pathfinder?
No, there are no official NHTSA recalls for the engine water pump on the 1987-1995 Nissan Pathfinder.
What else should I replace at the same time?
When replacing the water pump (especially on the V6), it's wise to also replace the timing belt, timing belt tensioner, thermostat, and all radiator/coolant hoses. This is because you have already paid for the labor to access these components. You should also get fresh coolant.
Helpful Videos
Technical Specifications
OEM Part Numbers: 21010-40F26 21010-40F25 21010-86G00 B1010-40F27
Fits 1987-1995 Nissan Pathfinder models. Available for both the Z24i 4-cylinder and VG30E V6 engines. V6 models may have different parts for 2WD vs 4WD applications. Housing is typically aluminum with a steel or composite impeller.
