Cadillac DeVille Engine Valve Cover Gasket Guide (1987-1996): Northstar vs. 4.9L
Leaking oil on your 1987-1996 DeVille? The repair depends entirely on which V8 engine you have.
- First, identify your engine: the repair for a 4.9L V8 is much easier and cheaper than for a 4.6L Northstar V8.
- A burning oil smell is the most common symptom of a failed valve cover gasket.
- For Northstar models (1994-1996), the rear gasket is extremely difficult to replace and is best left to a professional.
- If you have a 1995-1996 Northstar, check if the critical fuel rail safety recall has been performed.
Is Your DeVille a 4.9L or a Northstar? It's the Most Important Question.
Before you buy a valve cover gasket set for your 1987-1996 Cadillac DeVille, you must know which engine is in your car. The replacement job and cost are completely different depending on the engine. This generation of DeVille used two different V8 engine families.
| Engine | Years Available | Replacement Difficulty |
|---|---|---|

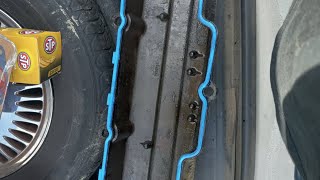

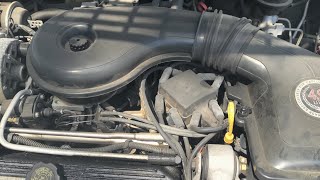

| 4.1L, 4.5L, 4.9L HT-Series V8 | 1987-1995 | Low to Moderate. This is a classic pushrod V8. The valve covers are relatively easy to access. A confident DIY mechanic can do this job in a few hours. | 🎬 Watch this step-by-step walkthrough for gaskets, wires, and plugs.
| 4.6L Northstar DOHC V8 | 1994-1996 | High. This is a much more complex dual overhead cam (DOHC) engine. The rear valve cover is tucked against the firewall, making it extremely difficult to access. Mechanics often have to tilt the entire engine forward to get the clearance needed to remove it. This job is not recommended for beginners. |
Symptoms of a Leaking Valve Cover Gasket
The signs of a bad gasket are hard to miss and apply to both engine types:
🎬 See a visual guide to common valve cover leak symptoms.- Burning Oil Smell: This is the most common symptom. Oil leaks from the gasket and drips onto the hot exhaust manifold, where it burns off, creating a distinct and unpleasant smell that can enter the car's cabin.
- Visible Oil Leaks: You may see dark, wet areas of oil and grime on the sides of the engine, specifically around the edges of the valve covers. For small leaks, the oil might not even reach the ground.
- Low Engine Oil: A persistent leak will cause your engine oil level to drop over time, forcing you to top it off between oil changes.
- Engine Misfires & Check Engine Light: On many engines, the spark plug tubes are sealed by gaskets that are part of the valve cover gasket set. When these fail, oil fills the tubes and fouls the spark plugs, causing misfires, rough idling, and poor acceleration. This will often trigger the Check Engine Light with codes like P0300 through P0308.
Choosing the Right Aftermarket Gasket Set
For an older vehicle like the 1987-1996 DeVille, a quality aftermarket gasket is a smart choice and often meets or exceeds the original design. The key is proper installation on a clean surface.
Brand Quality (Reinz, Victor Gaskets):
- Victor Reinz: Generally, Victor Reinz is known as a high-quality brand that is an original equipment (OE) supplier for many European cars. Their gaskets are typically made of soft, pliable rubber.
- A Note of Caution: While generally well-regarded, some professional technicians have reported issues with certain Victor Reinz aftermarket valve cover gaskets being slightly shorter than the OEM part, which can prevent a perfect seal and lead to leaks. This highlights the importance of comparing the new gasket to the old one before installation.
Pro Tip: Aftermarket gasket sets for these Cadillacs should include the main valve cover gaskets, spark plug tube seals, and the grommets for the cover bolts. Using new grommets is critical for applying the correct, even pressure on the new gasket.
Replacement Cost for 1987-1996 Cadillac DeVille
The cost varies significantly based on your engine. The Northstar V8 requires much more labor, which is reflected in the shop cost.
| Part/Service | 4.1L/4.5L/4.9L V8 Cost | 4.6L Northstar V8 Cost |
|---|---|---|
| New Aftermarket Gasket Set | $35 - $65 | $60 - $97 |
| Shop Labor Cost | $122 - $179 | $270 - $400+ |
| Estimated Total (Shop) | $157 - $244 | $330 - $500+ |
Frequently Asked Questions (FAQ)
Is the Northstar valve cover gasket job really that hard?

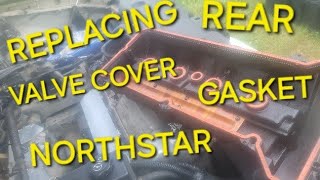

Yes. The front cover is manageable but still involves removing several components. The rear cover is the main problem. Access is so tight that many mechanics use ratchet straps to pull the engine forward just to get the cover out. 🎬 Watch: A clever trick for replacing the rear Northstar gasket. It is a time-consuming and frustrating job that is best left to a professional unless you are a very experienced DIYer.
Do I need to use RTV sealant with the new gaskets?
Typically, you only need to apply a small dab of RTV silicone sealant at the corners or sharp bends where the engine front cover or timing cover meets the cylinder head. The main gasket itself is designed to be installed dry into a clean channel. Using too much sealant can cause pieces to break off and clog oil passages.
What is the Northstar fuel rail recall I've heard about?
A critical safety recall (NHTSA #04V114000) was issued for 1995-1997 DeVilles with the 4.6L Northstar engine. The original nylon fuel rails can crack, leak gasoline into the engine bay, and potentially cause a fire. If you own one of these models, you should verify with a GM dealer that this free recall repair has been performed.
Can I just tighten the valve cover bolts to stop the leak?
This is not a reliable fix. The gaskets become hard and brittle with age and lose their ability to seal. While a loose bolt could be a factor, the root cause is almost always a failed gasket. Overtightening the bolts can crack the plastic or aluminum valve cover, leading to a much more expensive repair.
Helpful Videos
Technical Specifications
OEM Part Numbers: 151068901 VS50331 VS50526R
Kit typically includes two molded rubber valve cover gaskets, spark plug tube seals, and bolt grommets. Material is typically rubber or cork-rubber composite.
