A Guide to the Engine Timing Set for the 1987-1996 Chevrolet Corvette (C4)
Ensure your C4 Corvette's L98 or LT1 engine maintains its performance and reliability by choosing the correct timing set.
- You must correctly identify your engine as an L98 (1987-91) or LT1/LT4 (1992-96) before buying, as the timing sets are not interchangeable.
- For LT1/LT4 engines, it is critical to inspect and strongly consider replacing the Optispark distributor and water pump during a timing set replacement.
- A rattling noise from the front of the engine is the most common warning sign of a failing timing chain.
- For modified engines, upgrading to a double roller timing set from a brand like Cloyes or COMP Cams provides extra durability, but may require other modifications.
Understanding the Heartbeat of Your C4 Corvette's Engine

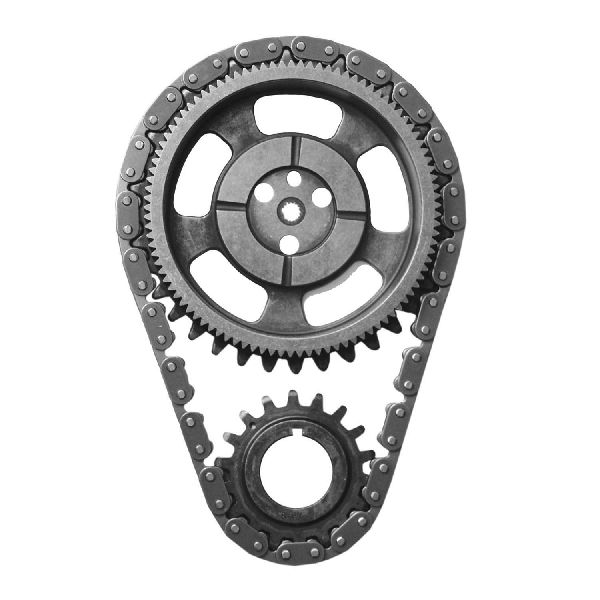

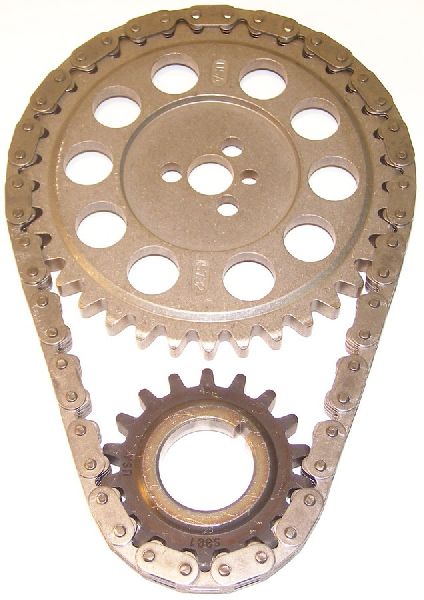

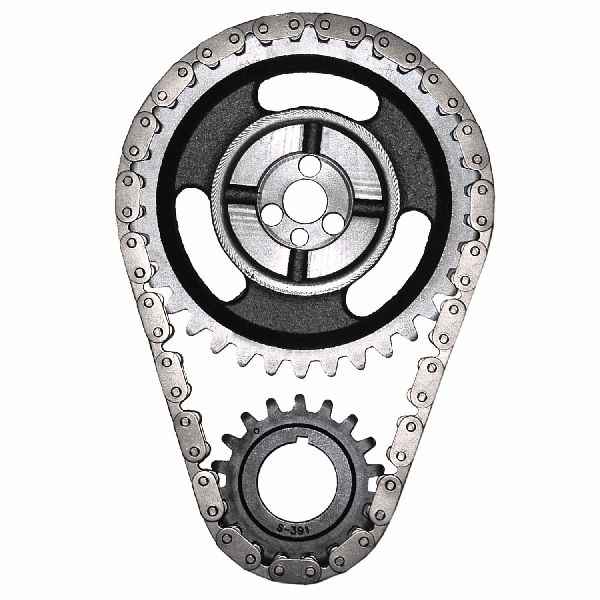

The engine timing set in your 1987-1996 Corvette is the crucial link that keeps the top and bottom halves of your engine working in perfect harmony. It consists of a crankshaft sprocket, a camshaft sprocket, and a timing chain connecting them. For the 1987-1991 L98 engines, it's a classic Small Block Chevy setup. However, for the 1992-1996 LT1/LT4 engines, the system has added responsibility, driving both the water pump and the Optispark distributor, which is a known weak point. Because of this, timing set replacement on an LT1/LT4 is often performed alongside an Optispark and water pump replacement.
Is Your Corvette's Timing Set Failing?
A timing chain doesn't have a set replacement interval, but it does wear out over time. A stretched chain or worn gear teeth can cause significant problems. Listen and watch for these common symptoms:
🎬 Watch this video to identify common signs of timing chain failure.- Engine Rattle: A distinct rattling or clattering sound from the front of the engine, especially on startup or at idle, is a classic sign of a loose timing chain slapping against the timing cover.
- Poor Performance: If the chain stretches and "jumps a tooth," the cam timing will be incorrect. This can cause a loss of power, rough idling, engine misfires, and difficulty starting.
- Check Engine Light: A stretched chain can throw off the camshaft and crankshaft position sensors, triggering diagnostic trouble codes like P0016, P0017, or P0340.
- Metal Shavings in Oil: During an oil change, finding small metal particles in the drained oil is a serious warning sign that the chain or gears are wearing down and shedding material.
Critical for LT1/LT4 Owners
🎬 See how to replace the Optispark distributor on your LT1 Corvette.The timing set on 1992-1996 models drives the Optispark distributor and water pump. A failing water pump can leak coolant directly onto the Optispark, causing it to fail. It is highly recommended to inspect and likely replace the water pump and Optispark distributor whenever you replace the timing set.
Choosing the Right Aftermarket Timing Set
Selecting the right replacement depends on your engine and how you use your Corvette. It is essential to identify your engine (L98 or LT1/LT4) before purchasing, as the parts are different, particularly the camshaft gear that drives the Optispark on later models.
Tier 1: OEM-Quality Replacements
For a stock daily driver or weekend cruiser, a standard replacement set offers reliability and affordability. These kits typically feature a link-belt style chain and cast iron gears, similar to the original equipment.
- Melling: A well-regarded brand for stock replacement parts, offering reliable timing sets that meet or exceed OEM specifications.
- Cloyes (Standard): Cloyes is a long-time manufacturer and was an OEM supplier to GM. Their standard sets are a dependable choice for stock rebuilds.
- INA: Known for producing quality OEM components, INA provides reliable timing parts for standard use.
Tier 2: Performance & Heavy-Duty Upgrades
If you have a modified engine, participate in track days, or simply want added durability, a heavy-duty set is a wise investment. These often feature a "true roller" or "double roller" chain for increased strength and reduced friction.
Pro Tip: A double roller chain is stronger than the stock single roller or link-belt chain but may require modifications to the timing cover for clearance on some applications. For LT1 engines, converting to a double roller setup often requires using an electric water pump.
- Cloyes (Heavy-Duty/Race): Cloyes offers true roller and double roller sets that are popular for performance builds due to their strength and quality.
- COMP Cams: A leader in valvetrain technology, COMP Cams provides high-quality single and double roller timing sets designed for performance and racing applications.
- Edelbrock: Known for performance, Edelbrock offers high-quality roller timing sets designed for durability in mild to high-performance engines.
- Melling Select Performance: Melling's performance line offers upgraded materials and designs, like billet gears and pre-stretched, heat-treated chains for high-RPM stability.
Estimated Costs for Timing Set Replacement
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard) | $35 - $80 |
| New Aftermarket (Performance) | $80 - $170 |
| Shop Labor | $600 - $1200 |
Note: Labor costs can vary significantly based on location and the specific engine (LT1/LT4 models are more labor-intensive due to the water pump and Optispark). Prices are estimates and subject to change.
Frequently Asked Questions
Do I need to replace anything else with the timing set?
Yes. For all models, it's best practice to replace the timing cover gasket and front crankshaft seal. For 1992-1996 LT1/LT4 engines, it is strongly recommended to replace the water pump, water pump drive seal, and the Optispark distributor at the same time, as they must be removed for access anyway.
What is the difference between a single roller and a double roller chain?
A double roller chain has two sets of rollers and is physically stronger and more durable than a single roller chain, making it ideal for high-performance or high-RPM engines. However, it may require a different timing cover for clearance. For most stock or lightly modified Corvettes, a high-quality single roller or link-belt chain is sufficient.
Can I replace the timing set myself?
This is an advanced DIY job. It requires significant disassembly of the front of the engine, including the harmonic balancer, water pump, and oil pan (on L98s). Special tools like a harmonic balancer puller are required. For LT1/LT4 engines, the complexity is higher due to the Optispark system. If you are not an experienced mechanic, it's best to leave this job to a professional.
Were there any recalls for the C4 Corvette timing set?
No, there were no recalls issued by the NHTSA for the engine timing set on the 1987-1996 Chevrolet Corvette.
Helpful Videos
Technical Specifications
Vehicle Fitment: 1987-1996 Chevrolet Corvette (C4). Engine Fitment: L98 (1987-1991), LT1/LT4 (1992-1996). Chain Types: Link-Belt (Stock), Single Roller, Double Roller. Gear Material: Cast Iron, Billet Steel.
