A Guide to the 1987-1996 Chevrolet S10 A/C Compressor Cut-Off Switch
If your S10's air conditioning is blowing warm or not working at all, a faulty A/C cut-off switch could be the simple fix you need.
- A faulty A/C cut-off switch is a common and inexpensive reason for A/C failure on a 1987-1996 S10.
- Symptoms often mimic low refrigerant, so check your system's charge level before replacing parts.
- Aftermarket brands like Four Seasons and Global Parts offer reliable and affordable replacements.
- This is a simple DIY repair that most owners can complete in under 30 minutes with basic tools.
Is Your S10's A/C Giving You Trouble?
When the air conditioning in a 1987-1996 Chevrolet S10 stops blowing cold, many owners suspect a major failure. However, the problem can often be a small, inexpensive part: the A/C compressor cut-off switch. This switch acts as a guard for your A/C compressor, which is the most expensive part of the system. Understanding what this switch does and how to spot a failure can save you time and money.
Common Symptoms of a Failing A/C Switch
A bad A/C cut-off switch can create several noticeable problems. You might experience more than one of these at the same time.
- A/C Blows Warm Air: This is the most common sign. If the switch is faulty, it may not allow the compressor to turn on, so the refrigerant never circulates to cool the air.
- Compressor Doesn't Turn On: You might hear a 'click' when you turn on the A/C, but the compressor clutch never engages. A bad switch can prevent the electrical signal from reaching the clutch.
- Intermittent Cooling: The A/C might work for a little while and then suddenly stop, or cycle on and off much more frequently than normal. This can be a sign the switch is failing and sending erratic signals. 🎬 Watch this easy test to see if your switch is failing.
Check the Simple Things First
Before you replace the switch, make sure your A/C system has the correct amount of refrigerant. Low refrigerant levels will also cause the low-pressure switch to keep the compressor from turning on to protect it. This can mimic the symptoms of a bad switch.
Choosing the Right Aftermarket Switch: Four Seasons vs. Global Parts
For a vehicle like the 1987-1996 S10, new OEM (Original Equipment Manufacturer) parts from GM are often discontinued or hard to find. Luckily, aftermarket brands offer quality replacements that are affordable and readily available. For a simple electronic switch, a reputable aftermarket part is a smart and reliable choice.
Brand Tiers:
- Four Seasons: A very well-known and long-standing brand in the automotive A/C parts industry. They are generally considered a go-to for reliable, standard-quality replacement parts that fit and function like the original. For an S10, a Four Seasons switch is a solid, dependable option.
- Global Parts Distributors (GPD): Another major competitor in the aftermarket A/C space, offering a complete line of A/C system products. GPD parts are known for their quality control, with compressors being 100% leak tested. Their switches and other components are a reliable alternative to Four Seasons, and the choice between them often comes down to price and availability.
Pro Tip: When buying a replacement switch, check if it comes with a new O-ring or seal. It's critical to replace the seal to prevent refrigerant leaks after installation.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch (Four Seasons, Global Parts) | $22 - $55 |
| New OEM Switch (If available) | $45 - $90+ |
| Shop Labor | $50 - $120 |
Frequently Asked Questions (FAQ)
Can I replace the A/C cut-off switch myself?
Yes, this is a very DIY-friendly repair for most owners. The switch is typically located on one of the A/C lines or on the A/C accumulator (a metal can near the firewall). It usually just unscrews after you disconnect the electrical connector. The job typically requires no special tools and can be done in under 30 minutes.
🎬 See how easy it is to change the switch yourself.Do I need to drain the refrigerant to replace the switch?
Usually, no. Most A/C pressure switches on these trucks are threaded onto a Schrader valve, similar to a tire valve. When you unscrew the old switch, the valve seals the system, preventing refrigerant from escaping. 🎬 Watch a step-by-step walkthrough of the replacement process. You may hear a tiny hiss of trapped gas, which is normal. Always wear safety glasses just in case.
What's the difference between a high-pressure and low-pressure switch?
Your S10 has both. The low-pressure switch (or cycling switch) is on the larger A/C line and prevents the compressor from running if refrigerant is low. The high-pressure switch is on the smaller line and stops the compressor if pressure gets dangerously high, preventing damage. A failure of either one will shut down the A/C.
My A/C is still not working after replacing the switch. What now?
If a new switch didn't fix the problem, you should re-check the refrigerant level. If the level is good, other possible issues include a blown fuse, a bad A/C relay, a faulty compressor clutch, or a wiring problem. The switch is often the easiest and cheapest part to replace first during diagnosis.

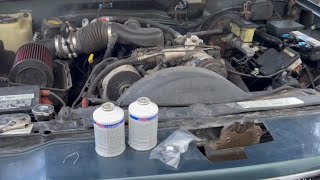

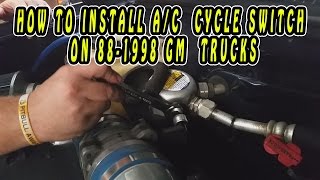

Helpful Videos
Technical Specifications
OEM Part Numbers: 10055933 3041812 15-5687
Typically a 2-terminal switch, color-coded for identification (e.g., green, black). Mounts to either the high-pressure line or the low-pressure accumulator. Most replacements include a new O-ring seal.
