A/C Compressor Clutch Guide for the 1987-1996 GMC G3500 Van
Is your G3500's A/C blowing warm or making noise? Your compressor clutch might be the problem.
- A failing A/C belt tensioner can mimic the symptoms of a bad clutch; check it first.
- Symptoms include noise, intermittent cooling, or no cold air at all.
- Replacing only the clutch does not require opening the refrigerant system, saving money.
- For a more durable repair on a high-mileage van, consider replacing the entire compressor assembly.
Is Your G3500's A/C Clutch Failing?
A bad A/C compressor clutch can cause several obvious problems in your 1987-1996 GMC G3500. Because these vans use a dedicated belt and tensioner for the A/C system, some symptoms can be misleading. Pay close attention to these signs.
Common Symptoms of Failure:
- No Cold Air: The most common symptom is when the A/C system blows warm or ambient air because the compressor isn't engaging. You can often look at the front of the compressor with the engine running and A/C on; if the outer plate isn't spinning with the pulley, the clutch has failed to engage.
- Strange Noises: Squealing, grinding, or rattling sounds that start when you turn the A/C on and stop when you turn it off point directly to a problem with the clutch or compressor. A worn clutch bearing can also make a constant grinding noise even when the A/C is off.
- Intermittent Cooling: If the A/C blows cold at idle but gets warm as you drive at higher speeds, the clutch may be slipping. This can be caused by a worn-out clutch surface or an incorrect air gap.
- Visible Damage: Look at the compressor for black dust (from burnt clutch material), melted plastic from the coil, or metal shavings. This is a sure sign of a serious failure.
Check the Belt Tensioner First!
On these specific GM vans and trucks, a weak or failing A/C belt tensioner is a very common problem. It can cause the belt to slip or chatter, creating noise and intermittent cooling that seems like a bad clutch. Before you replace the clutch, have a mechanic check the A/C belt tensioner to make sure it's holding firm pressure.
Choosing the Right Aftermarket Clutch

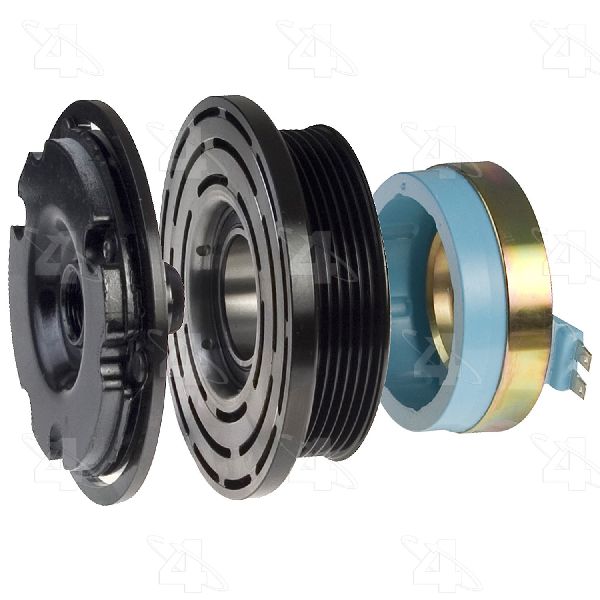

For a vehicle from this era, finding a new OEM clutch from GM is highly unlikely. The aftermarket is your primary source for these parts. The most common choice is a complete clutch kit, which includes the front plate, pulley with bearing, and the electromagnetic coil.
Brand Spotlight: Four Seasons
Four Seasons is a widely available aftermarket brand for your G3500. Customer reviews are generally positive, with many users reporting a good fit and restored A/C function. However, some have reported issues like premature failure or receiving units with the wrong amount of oil (when buying a full compressor). Given the age of the vehicle and the labor involved, Four Seasons is a practical and budget-friendly option.
Pro Tip: Consider a Full Compressor Assembly
The labor to replace just the clutch can be almost as much as replacing the entire compressor assembly, which comes with a new clutch pre-installed. If your compressor is original or has high mileage, replacing the whole unit can prevent future problems and may be a more reliable long-term repair.
A/C Compressor Clutch Replacement Costs for 1987-1996 GMC G3500
Costs can vary based on your location and whether you replace just the clutch or the whole compressor assembly.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket A/C Clutch Kit | $125 - $185 |
| New Aftermarket A/C Compressor w/ Clutch | $180 - $300 |
| Shop Labor (Clutch Only) | $150 - $250 |
| Shop Labor (Full Compressor Replacement*) | $250 - $400 |
*Includes system evacuation and recharge.
Frequently Asked Questions
Can I replace just the A/C clutch myself?
It is possible, but it's a moderately difficult job. You will need special tools like snap ring pliers, a clutch holding tool, and possibly a puller to get the old clutch off without damaging the compressor. If you don't have these tools or experience, it's best left to a professional.
Do I need to empty the refrigerant to change the clutch?
No. If you are only replacing the clutch components on the front of the compressor, the sealed refrigerant system does not need to be opened. This can save you significant time and money. However, if you replace the entire compressor, the system must be professionally evacuated and recharged.
What is the 'air gap' and why is it important?
The air gap is the tiny space between the clutch plate and the pulley when the A/C is off. It's usually about the thickness of a business card (0.020" - 0.035"). If the gap is too wide, the magnet won't be strong enough to engage the clutch. If it's too narrow, the clutch can drag when it's off, causing noise and premature wear. It is set using small spacers called shims.
My new clutch is noisy. What did I do wrong?
A noisy new clutch is often due to an incorrect air gap or a problem with the belt tensioner. First, re-check the air gap to ensure it's within specification. If the gap is correct, the noise may be coming from a weak belt tensioner that is chattering under the load of the new clutch.
Technical Specifications
Fits Harrison R4 or HD6/HR6 style compressors commonly used on this platform. Clutch air gap should be set between 0.020 and 0.035 inches.
