Jeep Wrangler YJ A/C Receiver Drier Guide (1987-1996)
Keep your YJ's A/C blowing ice cold by learning the symptoms of a bad A/C receiver drier and how to choose the right replacement part.
- The A/C receiver drier MUST be replaced any time the A/C system is opened for repair.
- Verify if your YJ uses the older R12 refrigerant (pre-1994) or R-134a (1994+) before ordering.
- Symptoms of failure include poor cooling, musty smells, and rattling noises.
- This is not a DIY job for most owners as it requires professional refrigerant recovery and recharging equipment.
Is Your Wrangler's A/C Getting Weak?
If the air conditioning in your 1987-1996 Jeep Wrangler YJ isn't performing like it used to, a failing A/C receiver drier could be the problem. This part is a filter that protects your entire A/C system from moisture and contamination. Because it's a filter, it has a limited lifespan and must be replaced anytime the A/C system is opened for service, such as when replacing a compressor or hose. Failure to replace a saturated or clogged drier can lead to poor cooling and expensive damage to other components.
Generation & Refrigerant Differences
The 1987-1996 Jeep Wrangler YJ generation spans a major change in automotive refrigerants. 1987-1993 models originally used R12 refrigerant, while 1994-1995 models used R-134a. Many older YJs have been converted from R12 to R-134a. Always verify which refrigerant your system uses before ordering parts. The receiver driers are designed specifically for one type or may be compatible with both, but fittings can differ.
Symptoms of a Bad A/C Receiver Drier
- Poor or No Cooling: A clogged drier restricts refrigerant flow, preventing the system from cooling effectively. You might notice the air from the vents is only slightly cool or completely warm.
- Moldy or Musty Smell: When the desiccant can no longer absorb moisture, mold and mildew can grow inside the A/C system, causing a bad smell from the vents.
- Visible Refrigerant Leaks: While rare, the drier canister itself can develop leaks. You might see an oily residue on the drier or its fittings.
- Rattling Noises: If the desiccant bag inside the drier breaks open or internal parts come loose, you may hear rattling from the engine bay when the A/C is on. This is serious, as loose desiccant beads can circulate and destroy your A/C compressor.
Choosing the Right Aftermarket Drier
For a vehicle like the YJ Wrangler, aftermarket A/C components offer a great balance of quality and value. OEM parts can be difficult to find and expensive. Brands like Four Seasons and Crown Automotive are common choices.
Tier 1: Good Value Brands (Four Seasons)
Four Seasons is a widely available brand that produces parts in ISO/TS16949 certified facilities. Their driers are known to be a reliable, budget-friendly option for repairs and system recharges. They are a standard choice for many repair shops and DIYers.
Tier 2: OE-Style Specialists (Crown Automotive)
Crown Automotive specializes in Jeep parts and aims for OE-style fit and quality. While sometimes priced slightly higher than other aftermarket options, users often find their parts offer good fitment and long-term reliability. Some forum users have noted mixed experiences, with some parts being out of spec, but the brand is generally considered reputable for Jeep vehicles.
Always Replace, Never Reuse
The receiver drier is a disposable filter. The desiccant inside becomes saturated with moisture as soon as it's exposed to the atmosphere. You must install a new drier anytime the A/C system is opened for any repair. Failing to do so will void the warranty on a new compressor and likely lead to premature failure of the entire system.
Estimated Replacement Costs
The cost to replace the A/C receiver drier depends on whether you're doing it as a standalone job or as part of a larger A/C repair. The part itself is inexpensive, but the labor involves specialized equipment.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Drier | $35 - $40 |
| Shop Labor (including system evacuation & recharge) | $72 - $105+ |
| Total Estimated Cost | $107 - $145+ |
Note: Labor costs can vary significantly based on your location and the shop's hourly rate. This estimate does not include the cost of refrigerant.
Frequently Asked Questions
Do I have to replace the drier if I'm just replacing an A/C hose?
Yes. Any time the sealed A/C system is opened to the air, the receiver drier must be replaced. The desiccant inside absorbs moisture from the air very quickly, and once it's saturated, it can't protect your system.
Can I replace just the desiccant bag inside the drier?
On most automotive driers, including those for the YJ Wrangler, the desiccant bag is not serviceable. The entire canister assembly is replaced as a single unit. Some very specific systems allow it, but it's not common practice.
What is the difference between a receiver/drier and an accumulator?
They perform the same function of filtering refrigerant and removing moisture. A receiver/drier is used in systems with an expansion valve (like the YJ Wrangler) and is located on the high-pressure side of the system. An accumulator is used in systems with an orifice tube and is located on the low-pressure side.
Is replacing the A/C receiver drier a DIY job?
While physically swapping the part is simple, the overall job is not recommended for beginners. It requires specialized and expensive equipment to safely recover the old refrigerant and then pull a deep vacuum on the system before recharging it with the correct amount of refrigerant and oil. Professional service is highly recommended to ensure the job is done correctly and legally.
Technical Specifications
OEM Part Numbers: 68406045AA

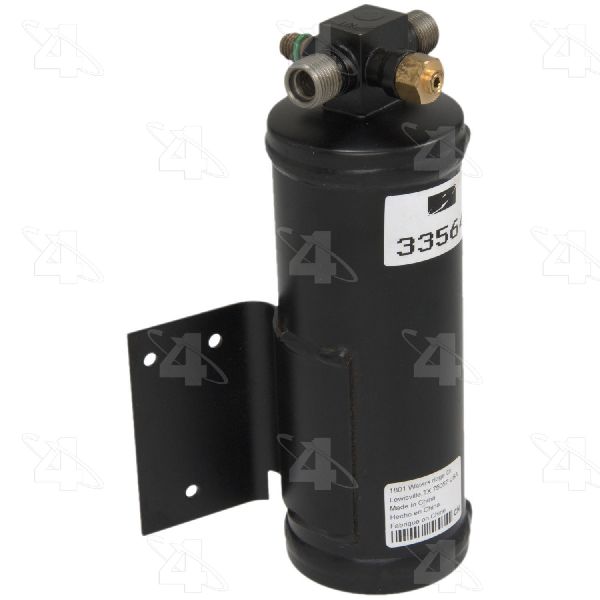

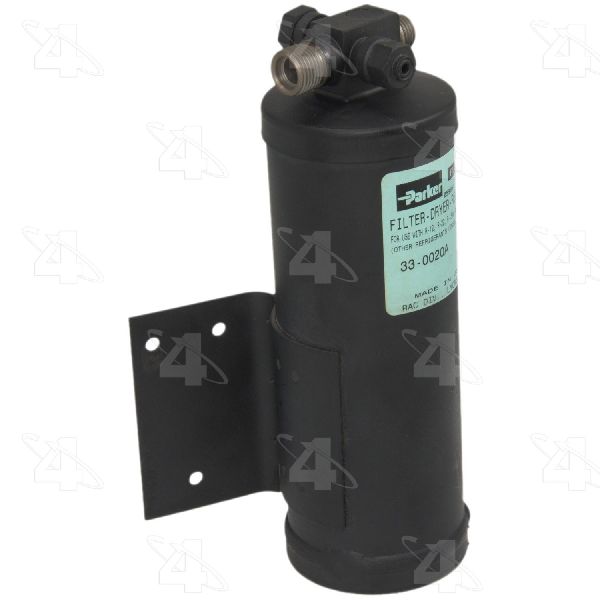

Fitment varies by year. 1987-1993 models use a drier designed for R12 systems, often with a quick-disconnect fitting. 1994-1995 models use a drier for R-134a systems. Diameter is approximately 63mm and height is 205mm.
