Jeep Wrangler YJ Throttle Position Sensor Guide (1987-1996)
If your YJ Wrangler is idling rough or hesitating, your Throttle Position Sensor might be the culprit.
- A failing TPS on a YJ causes issues like hesitation, rough idle, stalling, and poor shifting.
- Replacement is an easy DIY job, but proper adjustment with a multimeter is crucial for the YJ models.
- While budget brands are available, reputable aftermarket brands like Delphi, NGK, or Crown offer better reliability.
- No recalls or TSBs are specifically issued for the TPS on 1987-1996 Jeep Wranglers.
Is your Jeep's TPS Failing?
A bad Throttle Position Sensor can cause a lot of headaches. It won't always leave you stranded, but it will make your Wrangler run poorly. The symptoms can sometimes be confused with other sensor failures, like the Crankshaft Position Sensor (CPS) or Idle Air Control (IAC) valve. If your Jeep is acting up, look for these common signs of a failing TPS.
🎬 Watch: See how a bad TPS affects your Jeep's performance.Choosing the Right Aftermarket TPS
For a 1987-1996 Wrangler YJ, you don't need to buy the most expensive Mopar part to get good performance. Many aftermarket brands offer quality replacements. However, owner experiences show that quality can vary, and proper adjustment is key for the YJ. Cheaper, no-name parts have a higher risk of being faulty right out of the box or failing early.
Brand Quality Tiers
- Tier 1: Reputable OE-Style Replacements: Brands like Delphi and NGK (NTK) are often considered top-tier aftermarket choices. Delphi is a major manufacturer for original equipment parts, so their sensors are built to OE standards. NTK is also a well-regarded brand for engine sensors. These brands are a solid choice for reliability without paying for the Mopar box.
- Tier 2: Trusted Aftermarket Brands: This tier includes brands like Standard Ignition and Walker Products. They are established companies that produce a wide range of reliable aftermarket parts. Crown Automotive is another strong contender, specializing in Jeep replacement parts and known for good quality. These brands offer a good balance of price and performance.

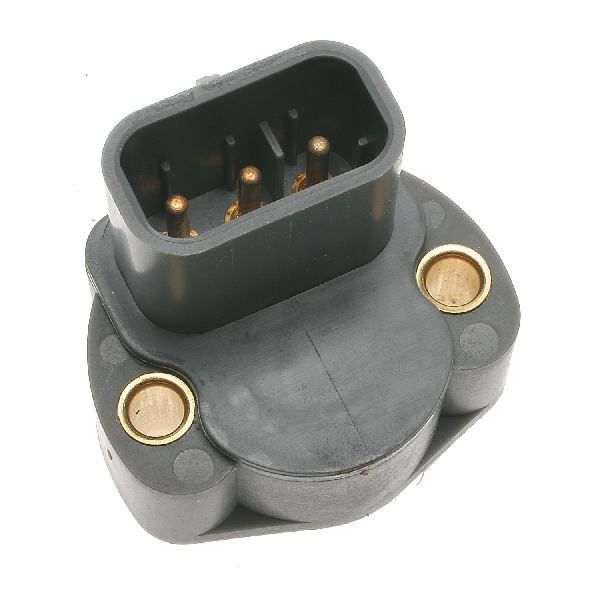

- Tier 3: Budget-Friendly Options: Brands like Replacement, Global Parts, and True Tech fall into this category. While they are the most affordable, some owners report issues with incorrect idling or premature failure. If your budget is tight, they can get your Jeep running, but be aware that you might be replacing it again sooner than you'd like.
Cost at a Glance
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $33.83 - $131.02 |
| New OEM (Mopar) Sensor | $90 - $150+ |
| Shop Labor for Replacement | $50 - $170 |
Installation Tips for YJ Wranglers
Replacing the TPS is a simple job that most owners can do at home in under 30 minutes with basic tools. The sensor is located on the throttle body and held on by two Torx screws.
- Disconnect the battery.
- Unplug the electrical connector from the sensor.
- Remove the two Torx screws and take off the old sensor.
- Install the new sensor. You may need to rotate it slightly to engage the pin from the throttle body shaft.
- Reinstall the screws and plug the connector back in. 🎬 Watch: This walkthrough shows you how to test and replace it.
Pro Tip: Adjusting the New Sensor. Unlike newer vehicles, the TPS on a YJ may need to be adjusted. The mounting holes are slotted to allow for slight rotation. This adjustment sets the correct idle voltage. Forum discussions among YJ owners suggest setting the output voltage at idle to a specific value (around 0.87V is mentioned, but consult a factory service manual for your specific year and engine). An improperly adjusted sensor can cause a high idle or hesitation even if the part is new.
Frequently Asked Questions
Are there any recalls for the YJ's throttle position sensor?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls or technical service bulletins (TSBs) for the throttle position sensor on the 1987-1996 Jeep Wrangler YJ.
What's the difference between a cheap TPS and an expensive one?
Higher-priced sensors from brands like Delphi or NGK often use better materials and undergo more rigorous testing to match original equipment performance. Cheaper sensors may have a shorter lifespan or inconsistent voltage readings, which can cause persistent performance problems.
Why does my Jeep still idle high after replacing the TPS?
If you've installed a new TPS and the idle is still high, it's likely an adjustment issue. The YJ's TPS needs to be rotated to the correct position to send the right voltage signal at idle. It could also be a sign of a faulty Idle Air Control (IAC) valve, which is another common part that fails and causes idle problems.
Do I need a special tool to replace the TPS?
You will need a Torx bit (often a T20) to remove the two screws holding the sensor to the throttle body. A basic ratchet or screwdriver set is usually sufficient. To properly adjust the new sensor, a multimeter is recommended to measure the output voltage.
🎬 See this guide on how to test your TPS voltage.Helpful Videos
Technical Specifications
OEM Part Numbers: 52000074 4626051 4761871 4778463 53032691AA
3-pin, oval-shaped electrical connector. Mounts to the throttle body with two Torx screws. Operates as a variable resistor to signal throttle plate angle to the ECU.
