Jeep Wrangler YJ Windshield Washer Pump Guide (1987-1996)
If you hear the motor but see no fluid, or just hear silence, it's time for a new washer pump.
- Before buying, check if your YJ has a single pump or a dual-pump reservoir for a rear washer.
- A dead pump usually means no sound and no spray. If you hear a hum but get no fluid, check for clogs before replacing the pump.
- Replacement is a simple DIY job that takes under an hour and requires only basic tools.
- Aftermarket brands like Crown, Omix-Ada, and Trico offer reliable, affordable replacements for this part.
Is Your Windshield Washer Pump Failing?
A working washer pump is a safety item, especially when you're driving off-road or in bad weather. For the 1987-1996 Jeep Wrangler YJ, the washer pump is a simple part, but when it fails, it can be a real problem. The most common sign of failure is when you activate the washer and nothing happens. However, there are a few symptoms to look for.
Diagnosing the Problem
Before you buy a new pump, do a quick check. First, make sure your washer fluid reservoir isn't empty. If it's full, listen for the pump when you try to use it.
- You hear nothing: If there's no humming sound from the engine bay, the pump motor is likely dead or not getting power. This could be a bad pump, a blown fuse, or a wiring issue like a bad ground, which is common on older Jeeps.
- You hear a humming sound, but no fluid sprays: The pump is getting power, but it's not moving fluid. The motor might be worn out internally, or you could have clogged hoses or nozzles.
- The spray is weak or uneven: This can mean the pump is getting weak and can't create enough pressure. It could also point to a clog in the lines.
Single or Dual Pumps?
Some YJ models, especially those with a factory hardtop, came with a rear window washer. These models use a reservoir with two pumps. Before ordering, check your washer fluid bottle to see if it has one pump or two. Ordering the wrong setup is a common mistake.
Choosing an Aftermarket Washer Pump
For a vehicle like the YJ, the original Mopar pump may be hard to find or expensive. Aftermarket pumps offer excellent value and are readily available. The main brands you'll find are Crown Automotive, Omix-Ada, and Trico.
- Crown Automotive & Omix-Ada: These are well-known brands in the Jeep aftermarket world. For a simple part like a washer pump, both offer reliable, OE-style replacements that fit and function like the original. Some forum users express a slight preference for Crown, but both are considered solid choices.
- Trico: While famous for wiper blades, Trico also makes replacement washer pumps designed for easy, direct-fit installation. They are a reputable general automotive supplier and a perfectly good option for your YJ.
Honestly, for this part, there isn't a huge quality difference between these brands. They are all designed to meet or exceed the original specifications. Your choice will likely come down to price and availability.
Check the Grommet!
The small rubber seal, or grommet, where the pump pushes into the reservoir is a common failure point. Over time, it can dry out and crack, causing leaks. Most new pumps come with a new grommet. It's a good idea to replace it even if it looks okay.
Windshield Washer Pump Replacement Cost (1987-1996 Jeep Wrangler YJ)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Pump | $25 - $40 |
| Shop Labor | $50 - $100 |
| Total Cost (DIY) | $25 - $40 |
| Total Cost (Installed) | $75 - $140 |
Frequently Asked Questions
Is replacing a YJ washer pump a difficult job?
No, this is a very easy DIY job. The pump is located on the washer fluid reservoir in the engine bay and is easy to access. It usually just pulls out or unscrews. The entire replacement should take less than an hour with basic hand tools.
Do I need to drain the washer fluid to replace the pump?
Yes, you should drain the reservoir before removing the old pump, or the fluid will spill out when you pull the pump. You can siphon it out or just let it drain into a bucket when you disconnect the pump.
What if I replace the pump and it still doesn't work?
If a new pump doesn't solve the problem, check the fuse for the washer system first. If the fuse is good, you may have an electrical issue, like a bad ground wire or a problem with the switch in the steering column. Also, make sure your washer nozzles aren't clogged with wax or debris by cleaning them with a small pin.
Are there any recalls on the 1987-1996 Wrangler washer pump?
No, there are no active recalls or Technical Service Bulletins (TSBs) from the NHTSA for the windshield washer pump on the 1987-1996 Jeep Wrangler YJ.
Technical Specifications

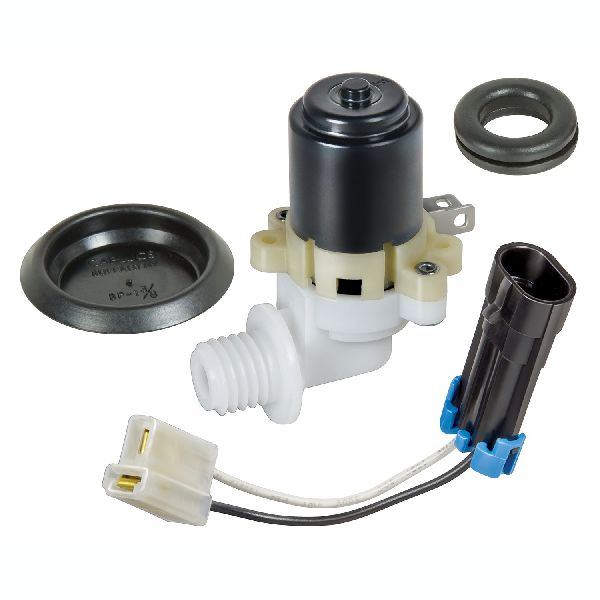

OEM Part Numbers: 56002053 5252217
Fits 1987-1996 Jeep Wrangler (YJ). Electric pump, typically friction-fit into the washer fluid reservoir with a rubber grommet. Single and dual pump configurations exist depending on vehicle options (hardtop).
